Dolor porta
Data serie Unit (DTU)
LoRaWAN EU868MHz Communication
868/915/923/470/433MHz LoRaWAN
CE Certificatum
Amni RS485 Communication
Maximilianus. Access 25 machinae
+86-18702106858 / +86-21-69156352

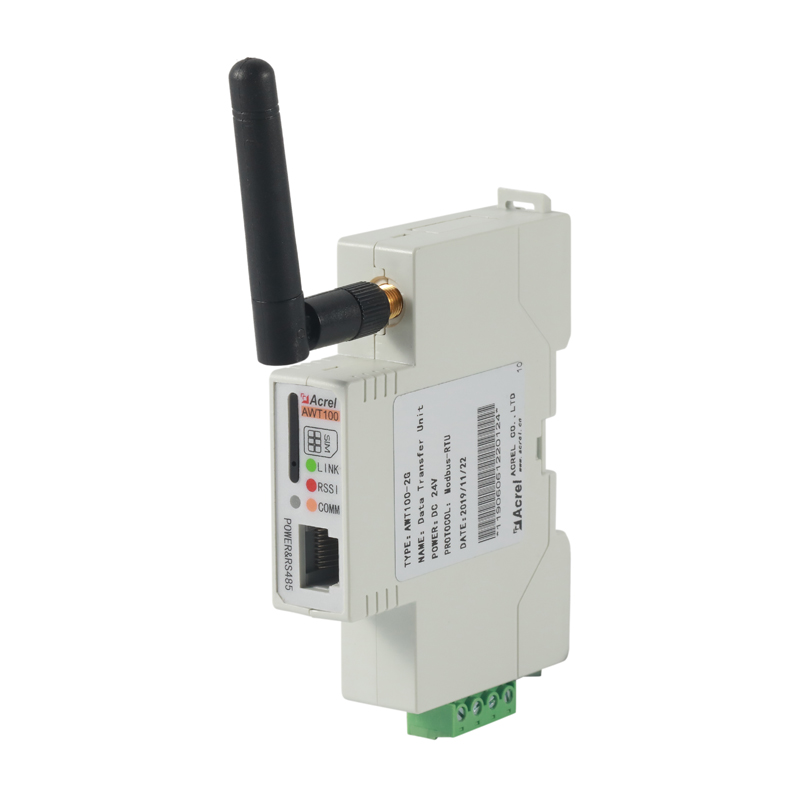

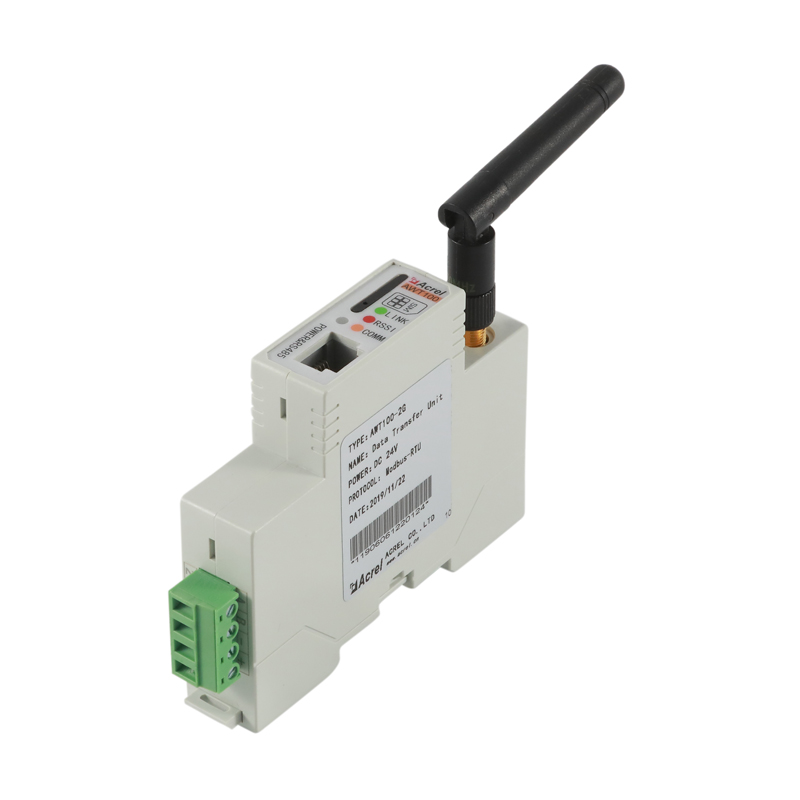

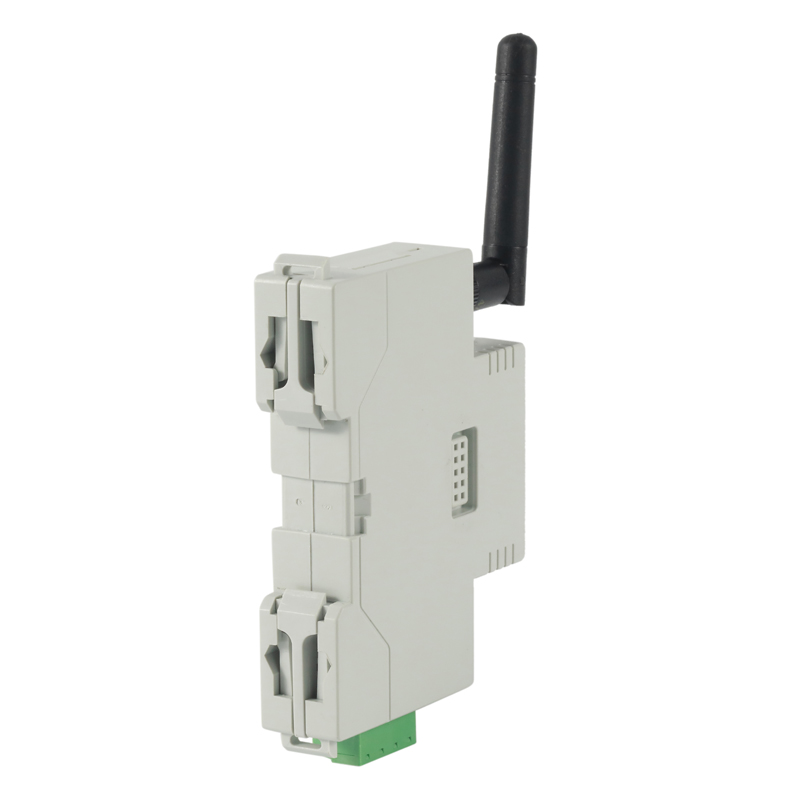

Acrel AWT100 Smart Gateway Data Transfer Unit is a versatile wireless communication terminal designed for efficient data acquisition and transmission.
Fluminis communicationis methodos plures fovet, inter 4G/WiFi/Athernet/LoRa/LoRaWAN et amni RS485 communicationem. Consilium CE certificatorium est et ad 25 cogitationes accedere potest.
Cum validissima eius micro-processionis chip et aedificata - in technologia vigili AWT100 certa et stabilis effectus efficit. Facile coniungi potest cum metris potentiae, RTUs, PLCs, computatris industrialibus, etc., et subsidia transmissionis perspicuae protocollo, protocollo MQTT, et aliis. Late applicatum est in captiosis aedificiis, industrialis automationi, industriae administratione, ac magis, faciliorem reddit transformationem instrumentorum traditorum digitalium et auget intelligentiam graduum variarum rationum..
| Parameter | AWT100-4G | AWT100-LoRa | AWT100-LW | AWT100-LW868 | AWT100-LW923 | AWT100-LORAHW | AWT100-WiFi | AWT100-CE |
| Operatio Frequency | LTE-FDD B1 B3 B5 B8 | 460～510MHz | 470MHZ | 863-870MHZ | 920-928MHZ | 860-935MHZ | support 2.4G frequency band | Aer Rate 10/100M adaptiva |
| LTE-TDD B34 B38 B39 B40 B41 | ||||||||
| CDMA B1 B5 B8 | WiFi rate: 115200bps | |||||||
| GSM 900/1800M | ||||||||
| Transmissio Rate | LTE-FDD Maximum downlink rate 150Mbps Maximum uplink rate 50Mbps | LoRa 62.5kbps | / | / | ||||
| LTE-TDD Maximum downlink rate130Mbps Maxime uplink rate 35Mbps | ||||||||
| CDMA Maximum downlink rate 3.1Mbps Maxime uplink rate 1.8Mbps | ||||||||
| GSM Maximum downlink rate 107Kbps Maximum uplink rate 85.6Kbps | ||||||||
| Downlink | RS485 Communication | |||||||
| Sim Card intentione | 3V，1.8V | LoRa Communication | WiFi Communication | Aer Communication | ||||
| Operatio Current | Static power：≤1W Transiens potentia consummatio：≤3W | |||||||
| Antennae Interface | 50Ω/SMA（Faucet） | RJ45 | ||||||
| Baud Rate | 4800bps、9600bps、19200bps、38400bps（Default 9600bps） | |||||||

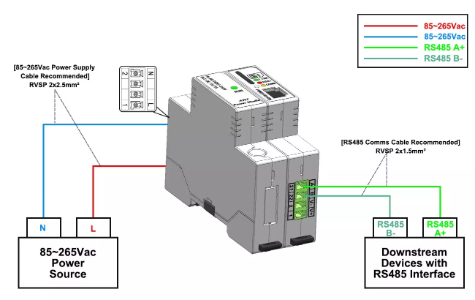

| Operans Voltage | DC24V vel AC/DC220V① | |||||||
| Operans Temperature | -10℃～55℃ | |||||||
| Repono Temperature | -40℃～85℃ | |||||||
| Umor dolor | 0～95% Non densans | |||||||
Energy Efficiency Management System
IoT Energy Procuratio System
Rated Current 80A Directe
MID Certificatus
Princeps Accuracy Class C
35mm DIN Rail Mounted
Pulsus output
4 Moduli 72mm Width
Pro IoT Energy Management, Factory, School
Scinditur Core
Fibulae in installation
Princeps Accuracy Class 0.5
150-1000A Input Current
5A/1A Secundaria Output
Applicationem: Renovationis Projects
Res memoria
Satus imperium munus
programmable DI et DO
Profibus-DP communicationis
Anti- quassans munus
Analog output
Res memoria
lacus praesidium
AC380V/690V
programmable DI et DO
Analog output
Anti- quassans munus
Scinditur Core
Princeps Accuracy Class 0.5
Current Input 20-6000A
Current output 5(1)A
Rectangulum foramen Design
Mensurae currentis (I)
Applicationem: Renovationis Projects
Fundata in anno MMIII, Acrel Co, Ltd.-Stock Code: 300286.SZ】 est summus technicus inceptis specialibus in solutionibus energiae procurationis et securitatis electricae. Headquartered in Shanghai, Acrel solutiones porttitor et sustineri praebet pro energia microgrid efficientiam et salutem electricam. Cum super 600 diplomatibus ac programmatibus programmatibus, Acrel solutiones systematis globally plusquam 28.000 explicavit, comprehensivum "cloud-ore-end" industriam interrete architecturam formans.
Acrel Co., Ltd. is China Wholesale LoRaWAN EU868MHz Data Transfer Unit DTU Smart Gateway Manufacturers and LoRaWAN EU868MHz Data Transfer Unit DTU Smart Gateway Factory. Acrel's integrated product ecosystem spans from cloud platform software to end-user components, covering sectors such as power, renewable energy, data centers, smart buildings, transportation, and smart cities. These solutions enable intelligent, real-time energy management, enhancing energy security and reducing operational costs. We offer LoRaWAN EU868MHz Data Transfer Unit DTU Smart Gateway for sale.
Facilitas societatis productionis, Jiangsu Acrel Vestibulum Electric Co., Ltd., strictis qualitatibus signis et guidelines environmental adhaeret, cum probatio provectus centris et obligatio processuum productionis liberorum ducendi. Manipulus acrelis super 500 fabrum incisuras energiae systematis efficientiae et solutiones energiae captivae liberat.
Forti domestica praesentia, Acrel actuose internationale dilatatur, fulta globalis retis venditarum et technicarum iunctionum et e-commercii suggestu, quod inconsutilem servitium experientias ubique terrarum efficit. Acrel superbus est ad adiuvandas res emendare efficientiam, consummationem minuere, et metas sustineri consequi.
Simul aedificamus nitidiorem, futuram viridiorem.
