Rated Current 80A Directe
MID Certificatus
Princeps Accuracy Class C
35mm DIN Rail Mounted
Pulsus output
4 Moduli 72mm Width
Pro IoT Energy Management, Factory, School
+86-18702106858 / +86-21-69156352
Acrel ADL400 AC Tribus Phase Energy Metrum est pacta solutio adhuc valida pro energiae mensurae et administratione. Magna subtilitate gloriatur cum Classis C accuratione et de 80A directa connexione agitari existimavit. Metrum MID certificationem habet, fidem et obsequium cum signis internationalibus praestans. 35mm DIN rail montem designat ad facilem institutionem, una cum pulsu output pro additional functionis causa.
Portus communicationis eius RS485 protocollum MODBUS-RTU sustinet, quod specimen facit ad integrationem systematis industriae in IoT administrandi rationes, systemata SCADA et varias systemata temperandi. AdL400 potest harmonicas resolvere ab ordine 2 ad 32 ad, pretiosos pervestigationes pro energia optimizatione comparans. Cum suis 4 modulis et 72mm latitudine, haec vis metrica apta est officinas, scholas, et alia industriae loca, ubi vis magna vis efficientis et administratio pendet.
| Project | Parameter euismod | ||
| Specification | 3 Status 3 Fila, 3 Phase 4 Fila | ||
| Mensuratio | Voltage | Relatio Voltage | 3*230/400V |
| Consummatio | <10VA (Single Phase) | ||
| Inpedance | >2MΩ | ||
| Sagaciter Classis | Error ± 0.2% | ||
| Current | Input Current | 80A/100A Directe Access | |
| Consummatio | <1VA una pars Rated Current | ||
| Sagaciter Classis | Error ± 0.2% | ||
| Potestas | Activa, Reactiva, Apparens, Potentia; Error ± 0.2% | ||
| Frequentia | 45-65Hz; Error ± 0.2% | ||
| Metering | Active Energy Classis (kWh) | Classis C | |
| Horologium | ≤0.5s/d | ||
| Digit signum | Energy Pulsus Output | Active I Photocoupler Output | |
| Pulsus | Latitudo Pulsus | 80±20ms | |
| Pulsus Constant | 10000 imp/kWh | ||
| Communicationis | Interface and Communication Protocol | RS485: Modbus-RTU | |
| Range Communicationis Oratio | Modbus-RTU: 1-247 | ||
| Environment | Operatio Temperature | -25℃ to 55℃ | |
| Relativum Umor | ≤95% (Nulla Condensatio) | ||

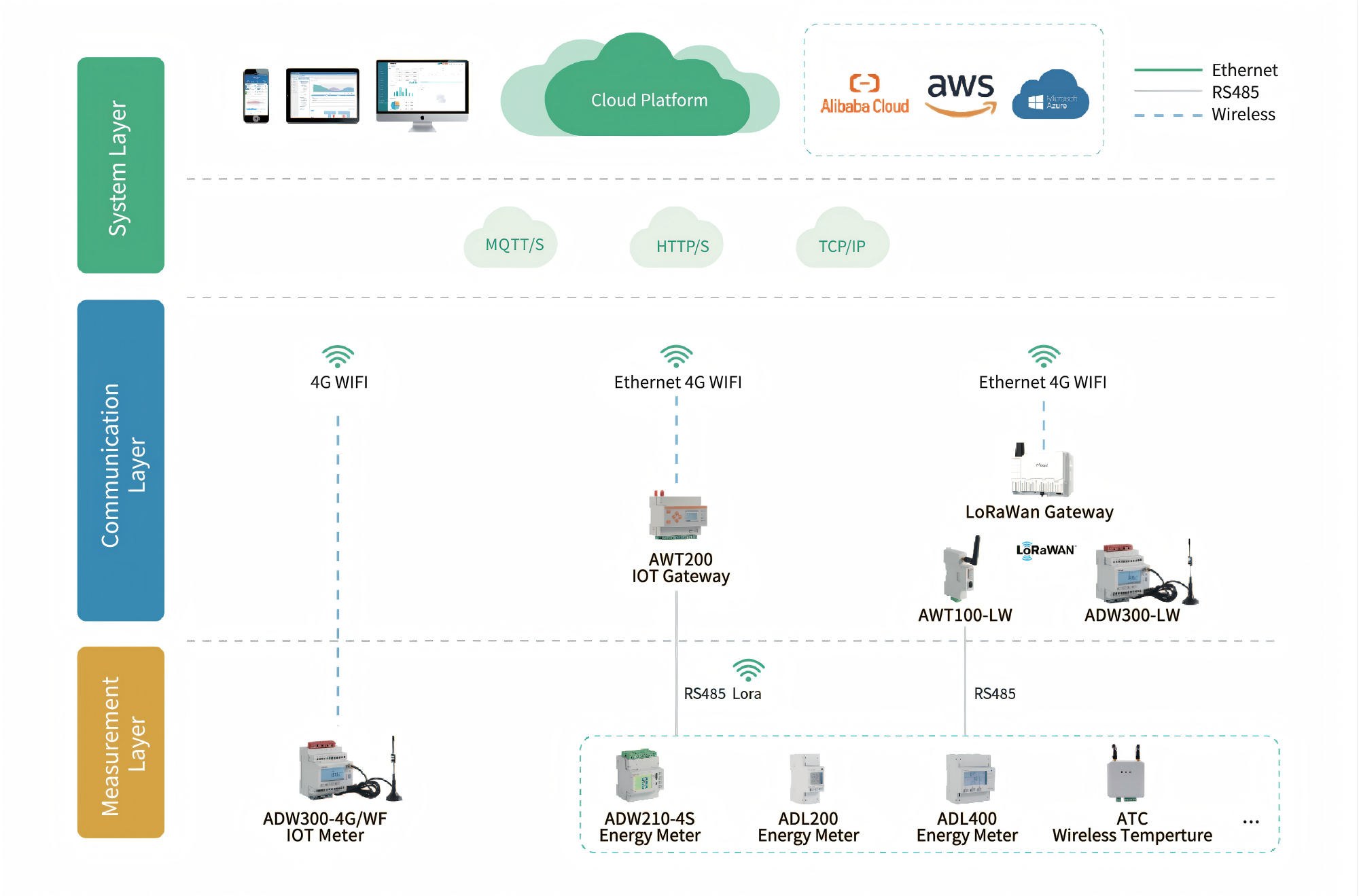

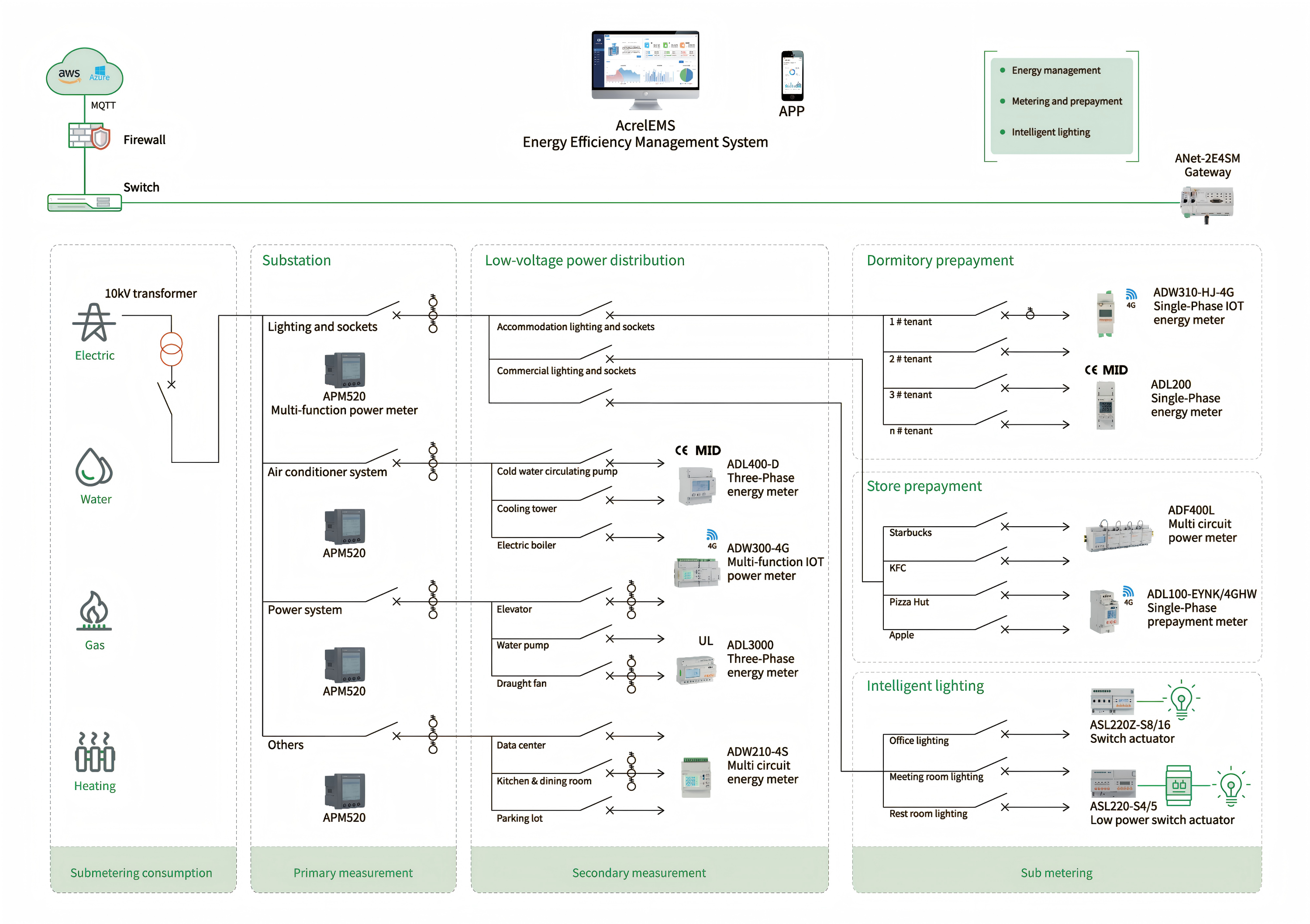

Energy Efficiency Management System
