Wireless Comm. LoRaWAN EU868MHz
Input Current 5A ab CTs
868/915/923/470/433MHz LoRaWAN
35mm DIN Rail Mounted

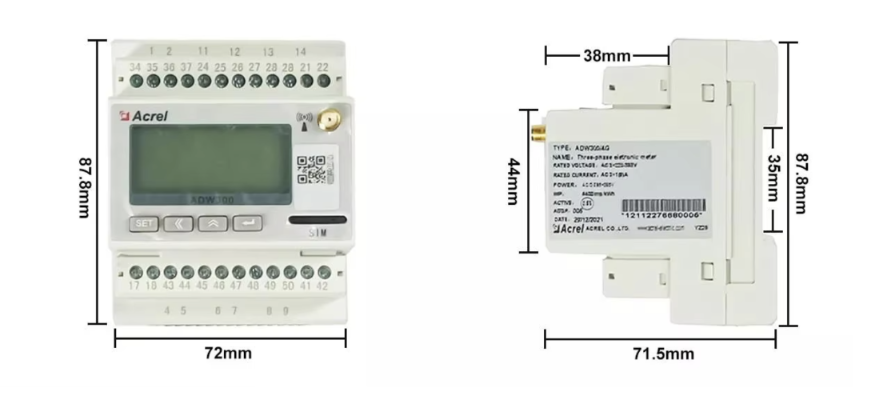

4 Moduli 72mm Width
CE Certificatum
Pro IoT Energy Management, Factory, School
+86-18702106858 / +86-21-69156352

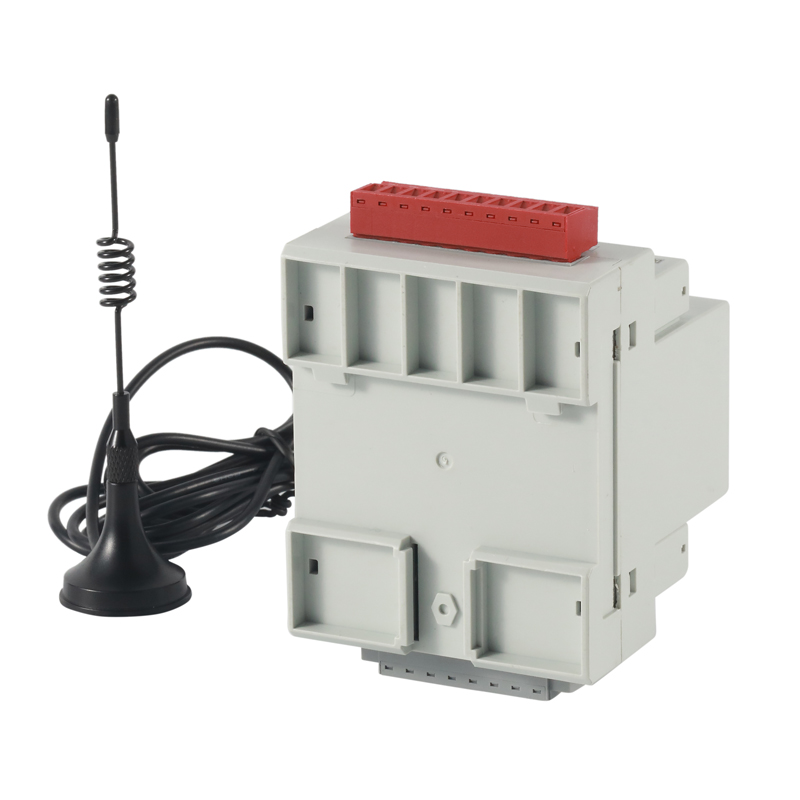

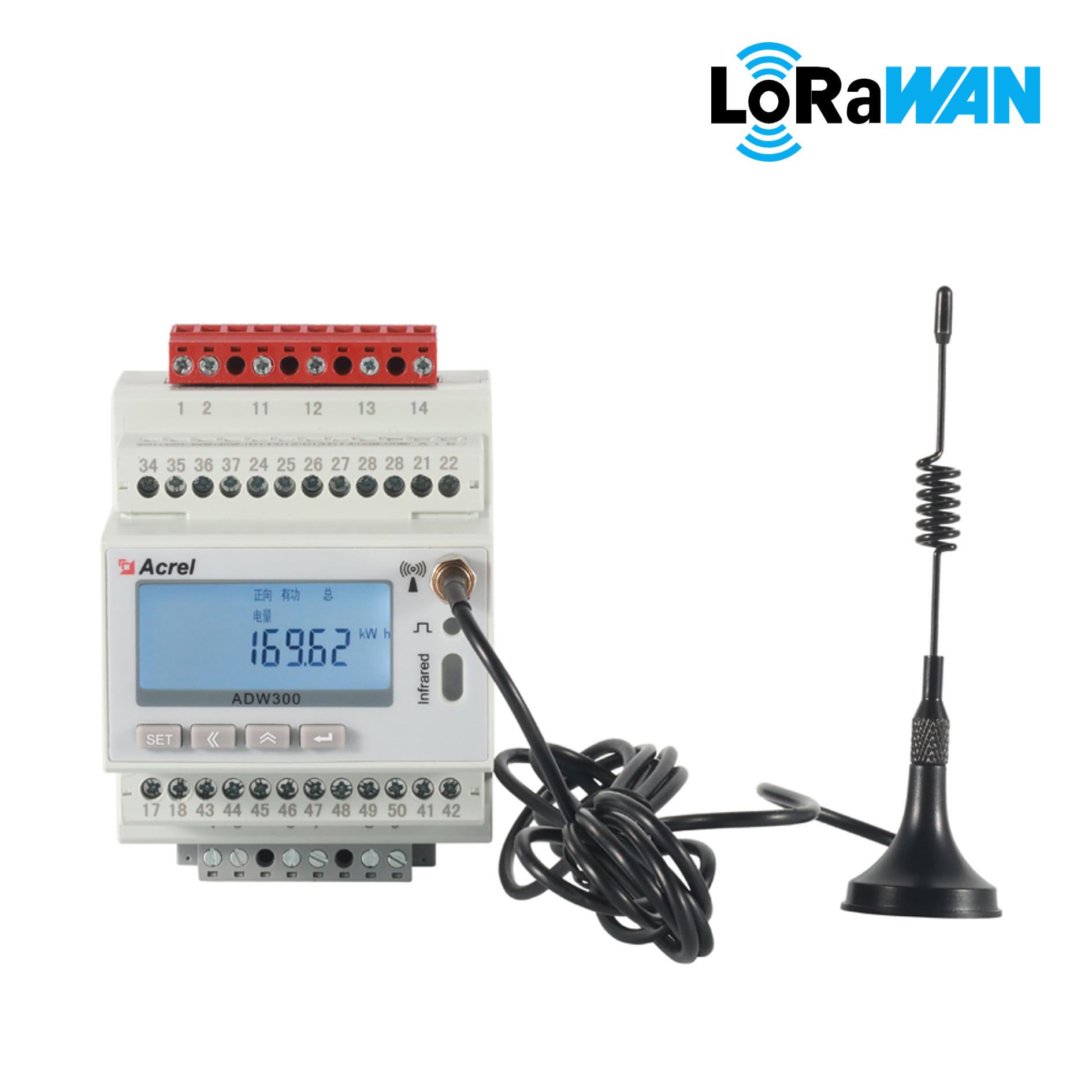

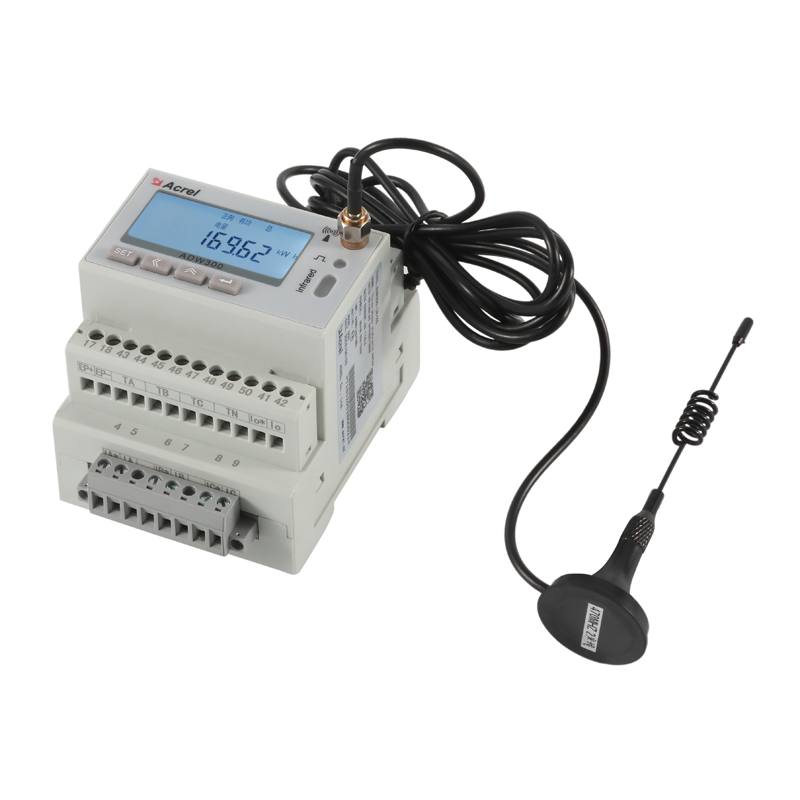

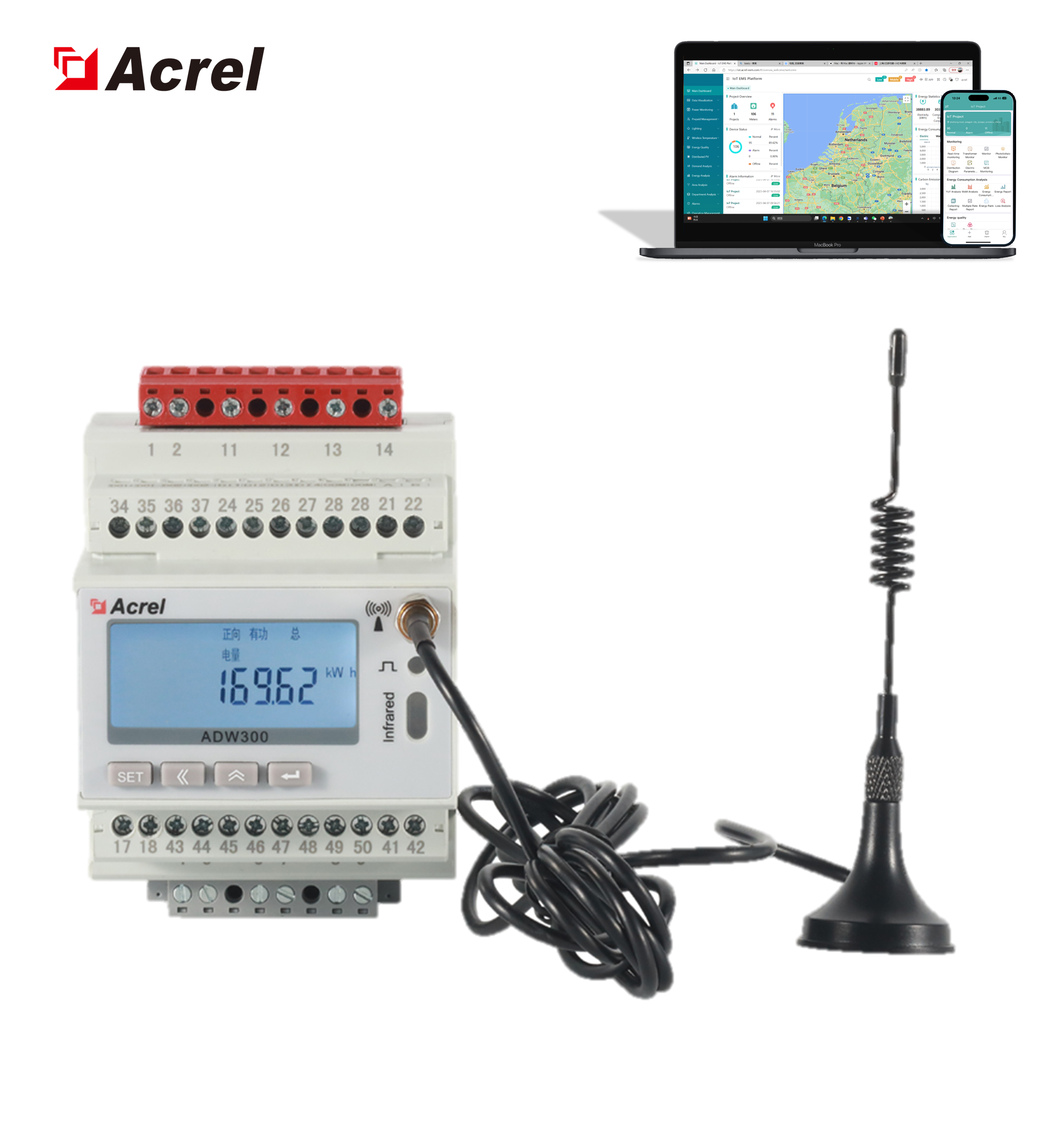

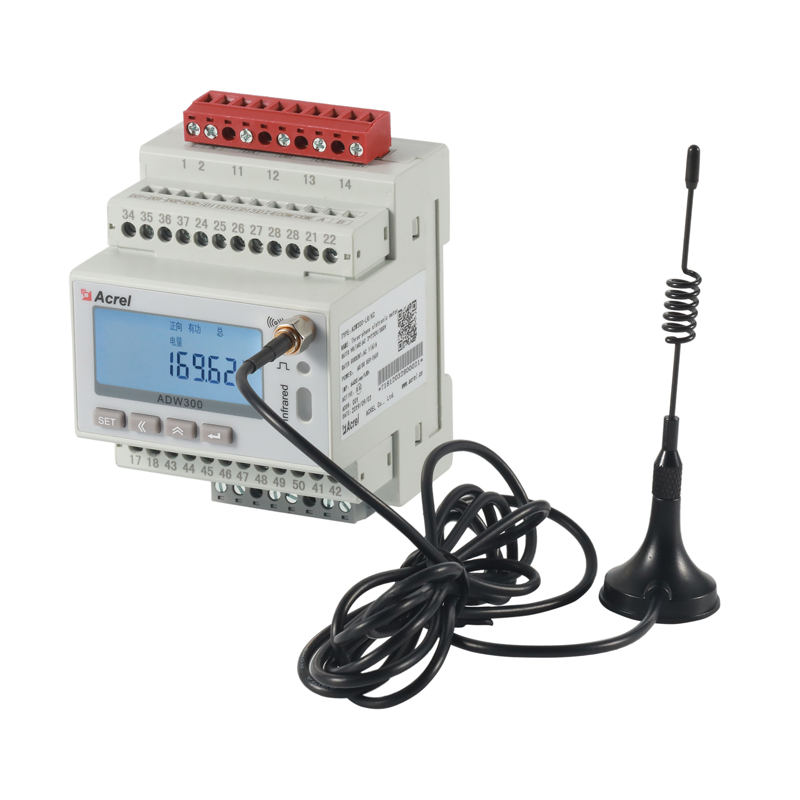

ADW300-LoRaWAN versatile est et procedens energiae wireless metri ad energiam procurandam in variis occasus efficientis destinata, ut industria administrandi ratio IoT, officinas, scholas et alios ambitus commerciales vel industriales. Multas optiones communicationis wireless praebet, in quibus 4G, WiFi, LoRa et LoRaWAN EU868MHz/915MHz/923MHz praebet, ut flexibiles et certae notitiae tradendae occurrant ad varias applicationes requisita.
instructus cum Input Current 5A ab CTs, accurate consumptionem electricitatis metiri potest. AdW300 subsidia Modbus-RTU/MQTT Protocollum, quod facile est cum systematibus exsistentibus inte- gere et faciliorem data permutatione lenire.
Praeterea ADW300 consecutus est CE Certificationem suam salutem et qualitatem praestans. Utrum industriam in officina, schola vel quavis alia facilitate administras, ADW300 notitias mensuras accurate et magnas facultates remotas praebet, adiuvans te usum energiae optimize, gratuita reducere et efficaciam industriam emendare..
| Parameter | Descriptio | |
| Input | Nominal Voltage | Pro High intentione: 3× 57.7~ 69.24Vac L-N & 100~ 120Vac L-L (Paired with PT) |
| ------------------------------ | ||
| Voltage | Pro Low intentione: 3×220~ 264Vac L-N & 3x380~ 456Vac L-L | |
| 3×380~ 456Vac L-N & 3x660~ 792Vac L-L | ||
| Frequentia | 50Hz~60Hz | |
| Comsumptio | 0.5 VA (Quisque tempus) | |
| Input | 3×1(6)A | |
| Current | 1‰ Ib (Class 0.5S) 4‰ lb. | |
| <1VA (Quisque tempus) | ||
| Auxiliaris | Potestas Supple | 85~ 265Vac L-N |
| Potestas | Potestas consumption | <2W |
| Mensuratio | Standard | IEC 62053-22:2003，IEC 62053-21:2003 |
| Euismod | Active Power Accuracy | Classis 0.5S（ADW300）Class 1（ADW300W） |
| Temperature mensurans Accuracy | ±2℃ | |
| Pulsus | Latitudo pulsus | 80±20ms |
| Pulsus constant | 6400imp/kWh , 400imp/kWh | |
| Communicationis | WirelessCommunication | 4G (constructum in orbe terrarum 4G moduli ad vincula servo global frequentia) |
| WiFi (2.4GHz), LoRa, NB-IoT, RS485 (standard MODBUS-RTU) | ||
| InfraredCommunication | Constant baud rate 1200 | |
| Interface | RS485(A B-) | |
| Connection Modus | Defensi torti par conductores | |
| Protocol | MODBUS-RTU | |
| Environment | Operating Temperature | -20℃~55℃ |
| Repono Temperature | -40℃~70℃ | |
| Umor | ≤95% (Nulla condensatio) | |
| altitudo | ||
IoT Energy Procuratio
-
Rated Current 80A Directe
MID Certificatus
Princeps Accuracy Class C
35mm DIN Rail Mounted
Pulsus output
4 Moduli 72mm Width
Pro IoT Energy Management, Factory, School
Scinditur Core
Fibulae in installation
Princeps Accuracy Class 0.5
150-1000A Input Current
5A/1A Secundaria Output
Applicationem: Renovationis Projects
Res memoria
Satus imperium munus
programmable DI et DO
Profibus-DP communicationis
Anti- quassans munus
Analog output
Res memoria
lacus praesidium
AC380V/690V
programmable DI et DO
Analog output
Anti- quassans munus
Scinditur Core
Princeps Accuracy Class 0.5
Current Input 20-6000A
Current output 5(1)A
Rectangulum foramen Design
Mensurae currentis (I)
Applicationem: Renovationis Projects
Fundata in anno MMIII, Acrel Co, Ltd.-Stock Code: 300286.SZ】 est summus technicus inceptis specialibus in solutionibus energiae procurationis et securitatis electricae. Headquartered in Shanghai, Acrel solutiones porttitor et sustineri praebet pro energia microgrid efficientiam et salutem electricam. Cum super 600 diplomatibus ac programmatibus programmatibus, Acrel solutiones systematis globally plusquam 28.000 explicavit, comprehensivum "cloud-ore-end" industriam interrete architecturam formans.
Acrel Co., Ltd. is China Wholesale AC Three Phase Wireless EU868MHz LoRaWAN Energy Meter Manufacturers and AC Three Phase Wireless EU868MHz LoRaWAN Energy Meter Factory. Acrel's integrated product ecosystem spans from cloud platform software to end-user components, covering sectors such as power, renewable energy, data centers, smart buildings, transportation, and smart cities. These solutions enable intelligent, real-time energy management, enhancing energy security and reducing operational costs. We offer AC Three Phase Wireless EU868MHz LoRaWAN Energy Meter for sale.
Facilitas societatis productionis, Jiangsu Acrel Vestibulum Electric Co., Ltd., strictis qualitatibus signis et guidelines environmental adhaeret, cum probatio provectus centris et obligatio processuum productionis liberorum ducendi. Manipulus acrelis super 500 fabrum incisuras energiae systematis efficientiae et solutiones energiae captivae liberat.
Forti domestica praesentia, Acrel actuose internationale dilatatur, fulta globalis retis venditarum et technicarum iunctionum et e-commercii suggestu, quod inconsutilem servitium experientias ubique terrarum efficit. Acrel superbus est ad adiuvandas res emendare efficientiam, consummationem minuere, et metas sustineri consequi.
Simul aedificamus nitidiorem, futuram viridiorem.
authentici diplomatibus
0+
Numerus Customers Servierunt
0+
Totalis Employees
0+
Vestibulum turpis
0m²Negotiis permittendi cum facultatibus robustis nostris.
