Home / Products / Energy Meter / AC Energy Meter / Aer Communicationis Modbus-TCP AC Tribus Phase Energy Metrum cum CTs Externum

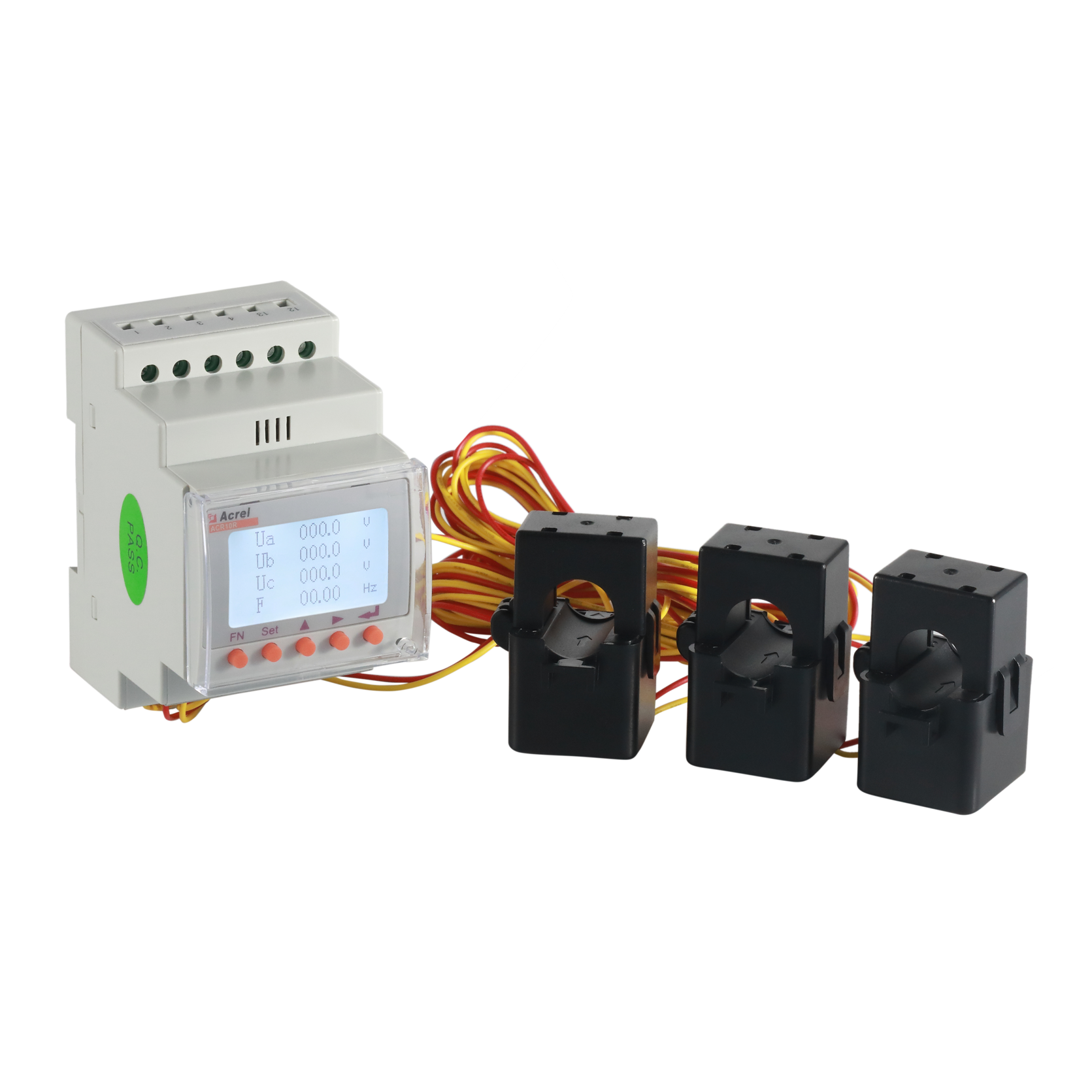

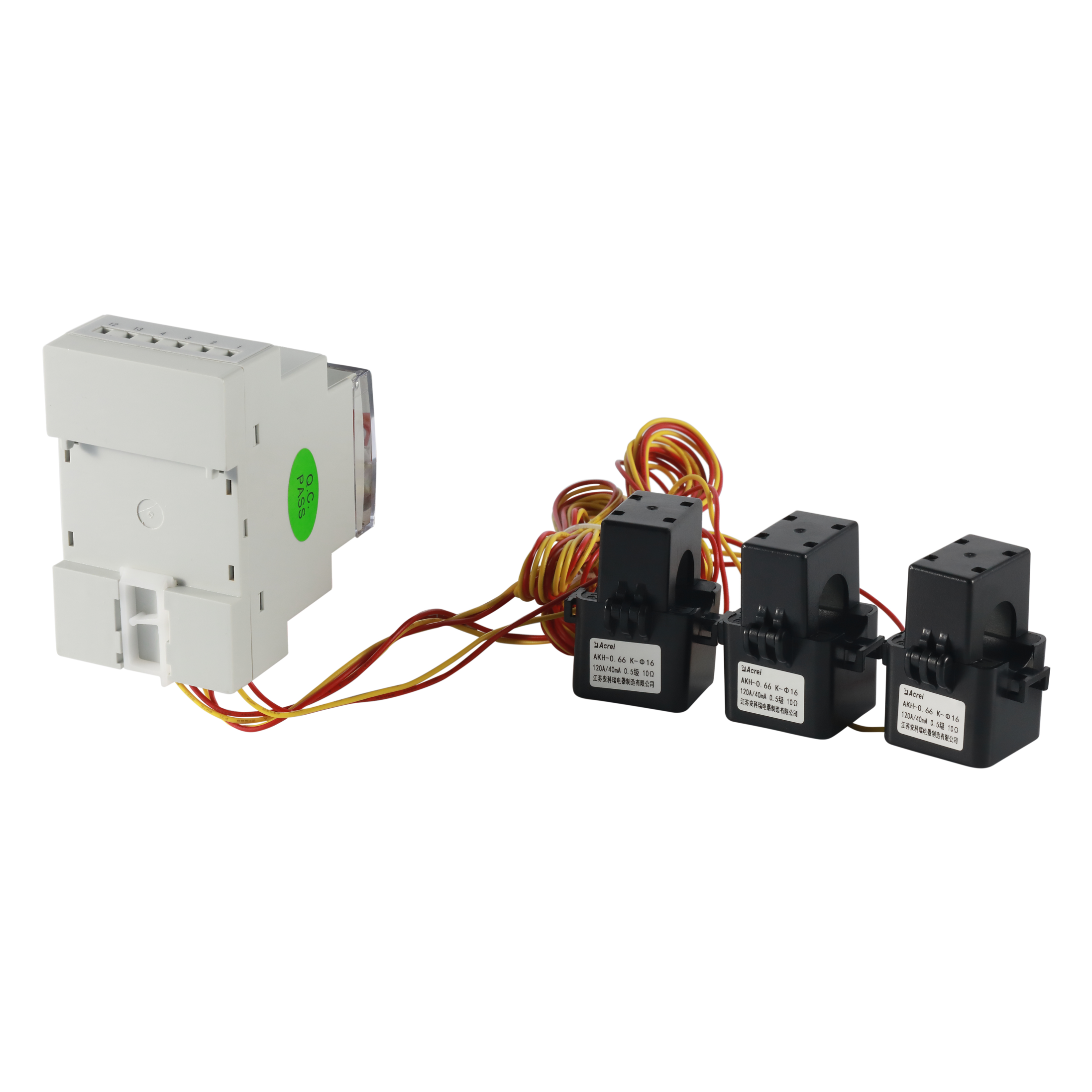

Aer Communicationis Modbus-TCP AC Tribus Phase Energy Metrum cum CTs Externum

Aer Communication RJ45 Port

Modbus-TCP Protocol

AC Tres Phase Mensurae

Rated Current: 5A by CTs or 80/120/200A ab externis CTs

Ratum Voltage: AC 3*230/400V

CE Certificatus

Contact Us
PREV: Nulla prior productum
DEINDE: UL Certified High Accuracy Class 0.2S AC tribus Phase Energy Meter

+86-18702106858 / +86-21-69156352

[email protected]

  • Describe

  • ACR10R Rail-type Multi-munus Electrical Instrumentum intelligens fabrica designata est ad industriam vigilantiam et administrationem potentiae comprehensivam. Praecisas mensuras parametrorum electricorum integrat ut unius phase/tres phases currentis, intentionis, potentiae activae, potentiae reactivae, potentiae apparentis, frequentiae et potentiae factoris, praebens reali tempus data pro energia systematis administrandi. Una e notis suis fulcimentum est Communicationisis Athernet cum Modbus-TCP Protocollo, ut inconsutilem integrationem efficiat in retiacula industriae modernae automationis. Instrumentum facile in-situm adhiberi potest utens DIN rail ascendens ac scissurae currentis commutator, necessitatem removens remotionis busbaralis et institutionis temporis ac laboris gratuiti minuendi. Eius LCD ostentationem et conjunctionem intuitivam interface permittit utentes parametros et monitor operationes localiter configurare, dum vitas outputs et switch inputs praebent remotas significationis et facultatum moderatio. Disposita ad quaerendas ambitus industriales, specimen est retrofits industriae efficientis in industriarum industriarum summorum energiae sumptionis, sicut excoquunt, ferri et ferri productiones, ac semiconductores. Accedit, applicationes adiuvat ut magna vis photovoltaicae distributa et industriae administrationem exigat. Cum amplis temperaturas operantibus et signa tuta alta, ACR10R componit fidem, mobilitatem, et facilitatem usus ad diversarum potentiarum magnas necessitates.

    Munera:

    Exemplar ACR10R-(DxxT)E4S ACR10R-(DxxT)ES
    Munus
    Modum monstrare LCD (ager LCD) ■ ■
    Mensurae parametri Current / voltage / frequentia / potentia factor ■ ■
    Active / reciprocus potentiae / apparent potentia ■ ■
    Quattuor quadrans potentiae measurement ■ ■
    Maximum postulatum ■ ■
    Complex rate potentia metering ■ ■
    Data logging Res logging □
    Alarm □
    Inaedificata horologium ■ ■
    Communication RS485 interface ■ ■
    Aer interface □
    RJ45 interface □
    Munus libitum (unum eligere) Nullam output (2DO) A1 -B1 seu C1）
    (4DI 2DO or 4DI EP)*
    Communication Commutatio initus (4DI) ■
    Munus libitum (unum eligere) Pulsus output (2 channels) A1 -B1 seu C1）
    (4DI 2DO or 4DI EP)*
  • Specifications
  • Technical parametri Indicatores
    Input Eget tres gradus quattuor filum
    Frequentia 45～65Hz
    Voltage Ratum voltage: 220V/380V(400V)
    Overload: 1.2 times the rated intentione (continua); II temporibus in rated voltage pro I secundo
    Virtus consummatio: minus ergo 0.2VA
    Current Rating: with external transformer 80A/26.7mA，120A/40mA，200A/66.66mA
    Cum constructum- in mutua sensori5A
    ONERO: 1.2 temporibus in rated current (continuo); X temporibus in rated current durare I secundo
    Virtus consummatio: minus ergo 0.2VA
    Output Electricity Output modus: Open collector optocoupler pulsus, 2-via output
    Tres tempus Pulsus constant: 100imp/kWh
    Communicationis RS485 interface, Modbus-RTU、Ethernet（Libitum
    Ostendere LCD
    Munus On Off Volume Input IV arida contactus inputs (Libitum)
    Output Output modus: 2-via Nullam normaliter aperta contactus output（Libitum）
    Contactus capacitatis AC 250V/3A、DC 30V/3A
    Mensuratio praecisio 0,5 level, Reactive navitas: 2 level、Alia: 1 level
    Potentia copia AC85～265V potentia consumption≤10VA
    salus Potestas frequentiae sustinere voltage AC2kV inter potestatem // switching output//current input and intention input//communication//pul- output//switching input 1min.
    Potentia copia//switching output//current input and voltage input between two two AC2kV 1min.
    AC1kV inter communication//pulsum output// commutatione input duo in duo 1min.
    Insulating resistor Initus et output ad gb> 100MΩ
    Environment Temperatus operandi: -10℃～ 55℃（Limit opus temperatus: -20℃～ 65℃）；Storage temperatus: -25℃～ 70℃
    Relativa humiditas: 5% ～ 95% non densans; altitudo: ≤2500m

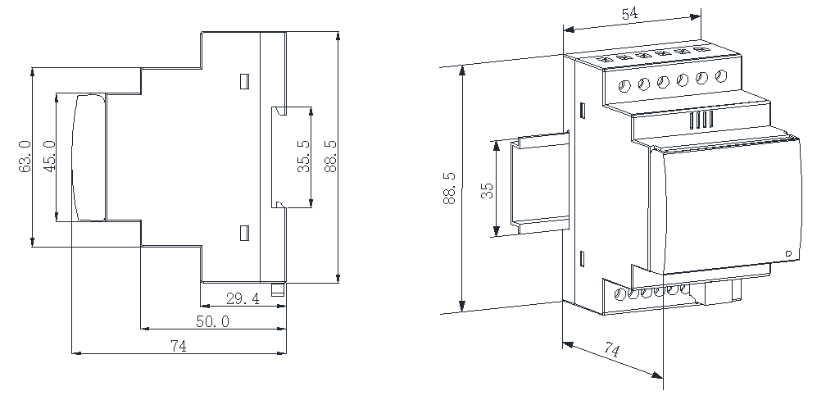

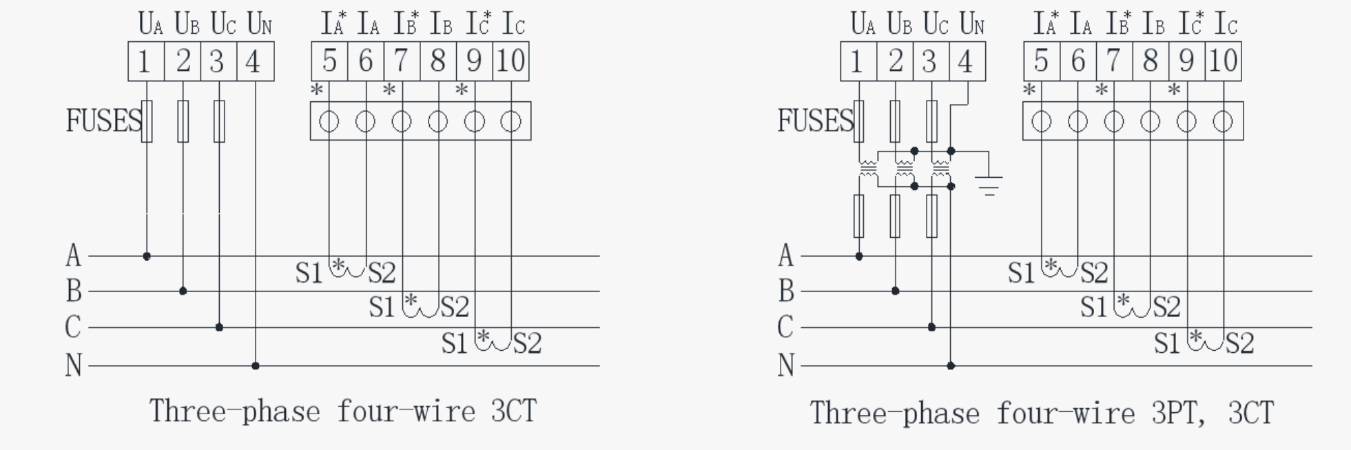

  • Dimensio & Wiring Diagram

  • Application varius

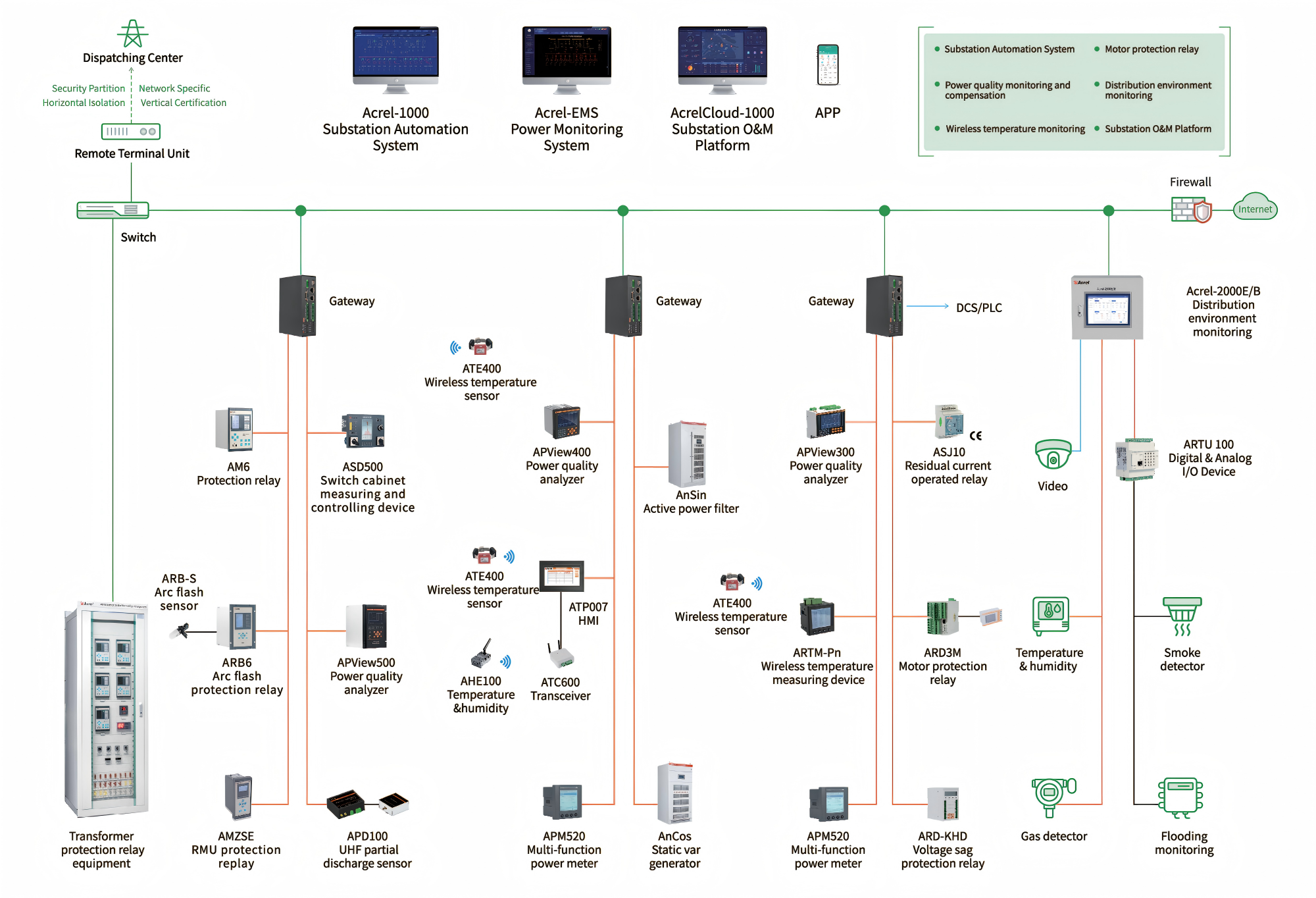

  • Virtus Cras SOLUTIO

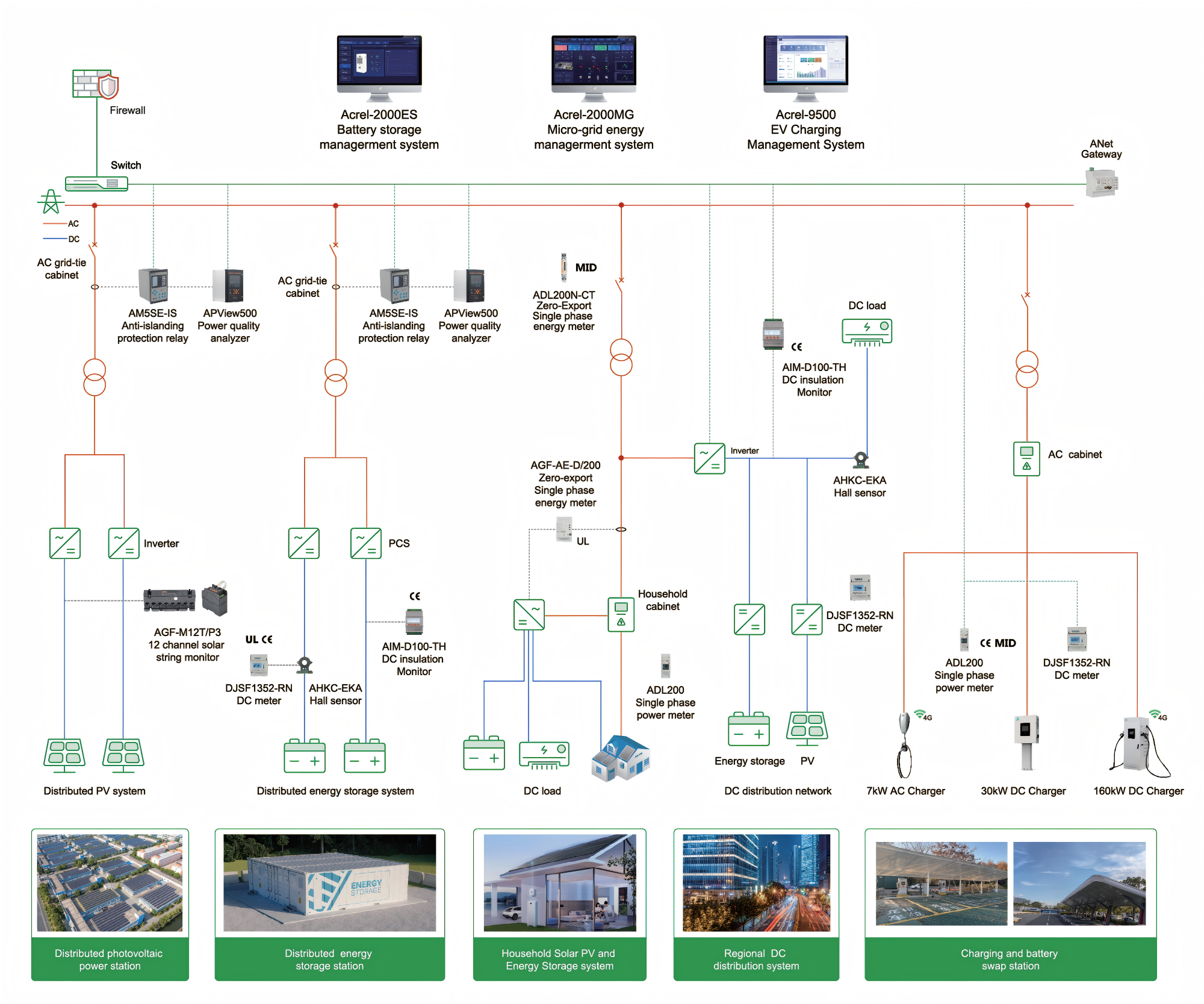

    Renewable Energy

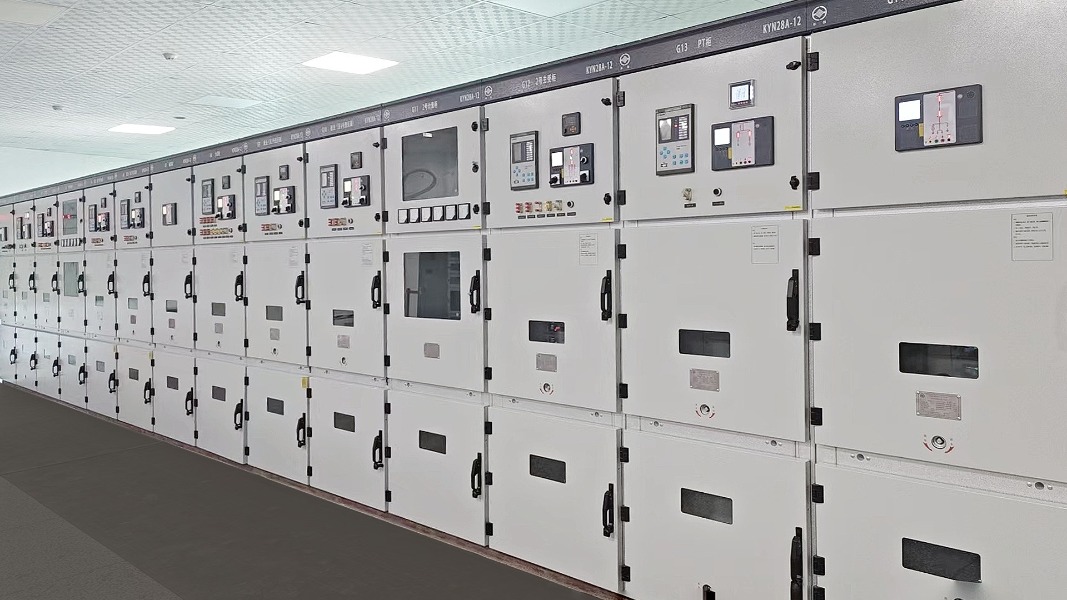

  • Opus Site Application
