DC Precision Power Distribution Cras Energy Metre pro Data Centre

Data Centre DC Linea Ineuntes

Independentes II canales Tres-phase Inlet

2nd-63rd Harmonic

8DI 4DO 1 Temp. et Umor

Aer Communication (Libitum)

3 Canales RS485 Communication

Contact Us
PREV: MID Certified 360A Direct Input DC Energy Metre for EV Charger
DEINDE: DC 6-canales -48V Energy Meter pro Telecom Base Statio

+86-18702106858 / +86-21-69156352

[email protected]

  • Describe

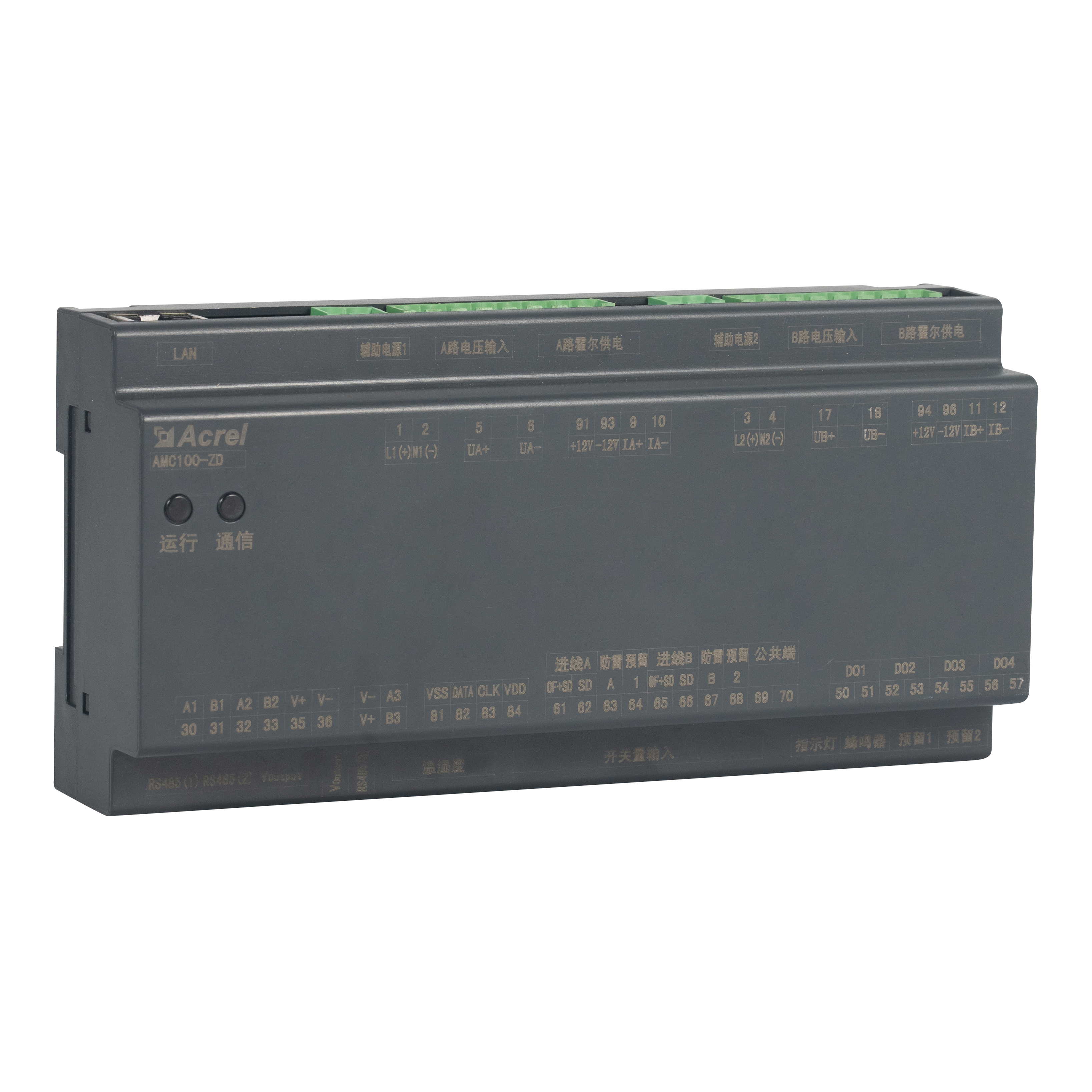

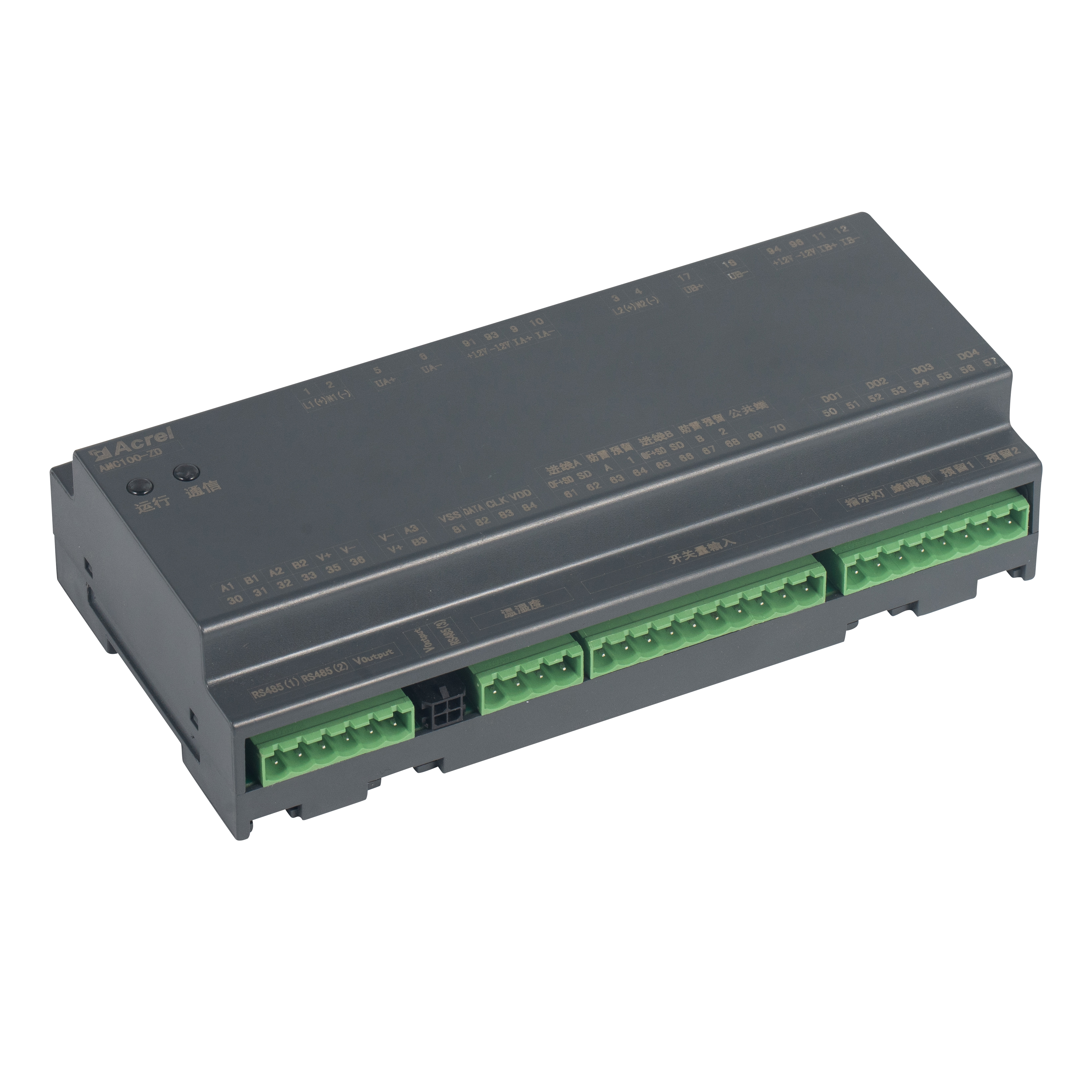

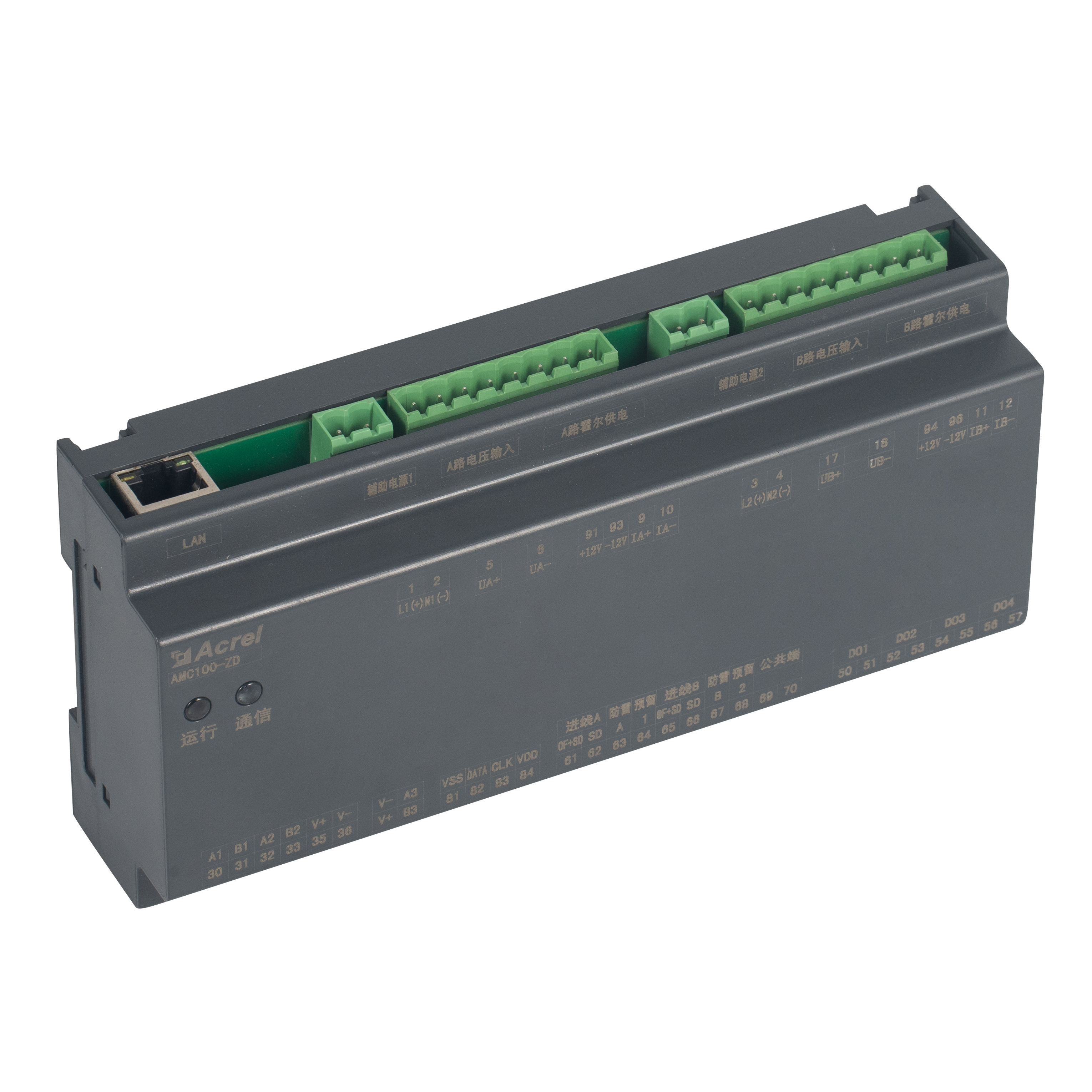

  • AMC100-ZD Acrel DIN-rail DC praecisionem potentiae-distributionis vigilantia unitas machinator pro data-media servo quatit. Simul incedit plenas parametris electricas A B duplices tres phases pascens, circuitus 192 exitus, 8 DI / 4 DO status puncta, 2 canales lacus, 1 temperatura-humiditas sensorem et 63 harmonicas. Tres RS485 Modbus-RTU portus dabunt inconsutilem BMS/DCIM integrationem. Foedus 180 mm habitationum, ±0.5% accuratio, liminum per- ductus terrorem ac sonum levem admonitionem energiae vastitatis et downtime exacturus, eam faciens scalabilem cor viridis e notitia-medii DC busviae vel PDU solutiones vigilantiae..

  • Specifications
  • Model AMC100-ZD
    parametri metiri Voltage, Current, Potentia, Vis Electrica, Ambiens temperies et Umor
    Bus voltage Ratum 48VDC,240VDC,336VDC
    range mensuræ ±20%
    ONERO Instantaneus voltage II temporibus per secundo
    Current advenientis circuitu Ratum 5V . Aula sensorem ±12V powered by AMC100-ZD .
    ONERO Duratio est 1.2 temporibus, instantaneae 10 times/secundae
    Temperatus et humiditas Temperatus range -40℃ ～ 99℃
    Umor range 20% ～ 90%
    accurate mensuræ Coil in Intentione/gradu current 0.5, potentia/electrica energiae 1
    Temperature ±1℃
    Umor ±5%
    Auxiliaris copia AMC100-ZD . Signum virtutis . ≤15W .
    AMC100-ZD-P24 . DC 12-24V copia sui iuris
    AMC100-ZD-P220 .
    1. Cum constans intentio DC 240V . DC336V, powered by AC220V . DC240V . DC336V independens copia
    2、 Cum constans intentione DC 48V sit, DC48V copia sui iuris est
    Environment Temperature Operatio . -15℃ ～ 55℃ Repono . -25℃ ～ 70℃
    Umor Relativum humidity≤93%
    altitudo ≤250m
    Switching output 4-modo 3A 250VAC /3A 30VDC
    Initus switch VIII lymphaticorum
    Communicationis 1 alveum solitarium RS485/Modbus-RTU ad systema background
    1 RS485/Modbus-RTU tangere tentorium
    1 RS485/Modbus-RTU connexio ad moduli amni
    I-alveum Aer communicationis munus est libitum
    Institutionem Modus DIN35mm rail vel fundum laminam institutionem
    Praesidium campester IP20
    Pollutio gradu 2
    Securitas Insulation Nulla resistentia inter omnes terminos et partes conductivas in putamine debet esse saltem 100MΩ .
    sustinere voltage Intentio et signum currentis lineae A // intentione et signo currens lineae B // Commutatio output // Solatur communicatio portus // Duo ex aliis portubus occurrere debent AC2kV pro 1min, commutatione initus et alii portus occurrere AC0.5kV pro 1min, lacus current minus quam 2mA, nullum naufragii vel flashover phaenomenon.
    Antistatic impedimentum Level 4
    Electromagnetica convenientiae Reactance ieiunium pulsus transiens Level III
    Surge resistentia Level 4
    Radio frequentia radiorum electromagneticorum Level III
  • Dimensio & Wiring Diagram

  • Application varius

  • SOLUTIO Data Centre EMS

  • Opus Site Application
