MID Certified 360A Direct Input DC Energy Metre for EV Charger

MID Certificatus

Ratum Current 360A

Ratum intentione DC 0-1000V

Accuracy Class B (Class 1)

RS485 Communication

Pulsus output

Contact Us
PREV: MID Certified 600A Dirige Input DC Energy Metrum pro EV Charger
DEINDE: DC Precision Power Distribution Cras Energy Metre pro Data Centre

+86-18702106858 / +86-21-69156352

[email protected]

  • Describe

  • Acrel DJSF1352-D-360 DIN-rail DC industria metri machinatum pro 360A EV-incurrentibus, photovoltaicis et altilium-applicandis reponendis. Eodem tempore mensurat, ostentationes et notas DC voltage (0-1000 V), bi-directionalem currentem (360A), vim instantaneae (kW), et cumulativam navitatem activam (kWh) cum accuratione Class-1/B. Segmentum LCD et optional DJSF1352-L remotis ostensionis moduli praebent lectiones verae temporis intentionis, currentis, potentiae, temporis/temporis, temperatoris internae, et tabulae industriae tam deinceps quam inversae.

    Copia flexibilitas potentiae conservatur per 9-36 Vdc auxiliaris input ≤3 W. Duae galvanice solitariae RS-485 portuum (cochleae terminales RJ12) sustinent Modbus-RTU, DL/T 645-2007, et DL/T-698 protocolla permittens primula-cathenam integrationem cum EMS, SCADA, vel retro. Programmabiles pulsus outputs (100-300 imp/kWh) efficiunt reditus-gradus metering et certificationem MID workflows.

    Metrum ad 70 °C, 95% RH non-condensando sustinet, 4.4 kV/1 min Hi-Pot, 6 kV impetus, et ≥40 MΩ insulationem. DIN-35 inscendens rail, 0.5 N·m torques terminales, et scutati-contorti cabling instructiones simpliciorem institutionem dum EMI extenuando. Parametri-inscriptio, baud rate, pari, industria decimales, vexilla anti- tatione - tesserae conservatae sunt (0001 default) per tesserarum tabularum vel tabulae remotae scribens.

    DJSF1352-D-360 certas sub-metering pro cistas componentis solaris, DC celeriter EV phialas, et systemata industriae UPS tradit..

  • Specifications
  • DJSF1352-D-360 Morbi laoreet
    Input Precium Voltage Input DC 0-1000V
    Current Input 360A
    Virtus Consummatio Intentio: ≤0.2VA, ≤0.1VA current current
    Sagaciter Classis B (Class I)
    Munus Ostendere Segmentum LCD screen (LCD)
    Communicationis RS485
    Modbus-RTU,DL/T 645-2007,DLT698
    Pulsus output Secunda pulsus output, pulsus energiae output
    Vide SYS->PLUS ostentationem in menu metri uncinis. For example: The
    metrum exhibet 100, quod est 100imp/kWH
    Potestas Supple Voltage range DC 9-36V
    Virtus consummatio ≤ 3W
    Potestas frequency sustinere
    voltage     		Potestas suppleat // Signum input / / Alii circuli 4.4kV/1min
    Impetus sustinere voltage ±6KV
    Nulla resistentia ≥ 40M Ω
    Mediocris obice-liberum opus horae ≥50000h
    Environment Temperature Temperatus operandi: -40 °C ~ 70 °C;
    Repono temperatus: -40 ℃ ~ 70 ℃
    Umor ≤95%RH, condensatio nulla, gasi corrosivum nullum
    altitudo ≤2000m

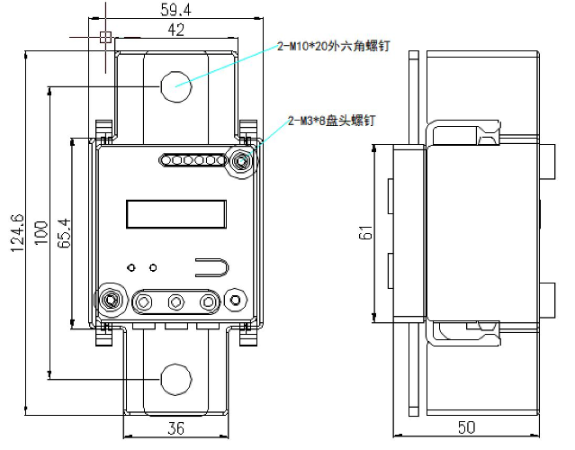

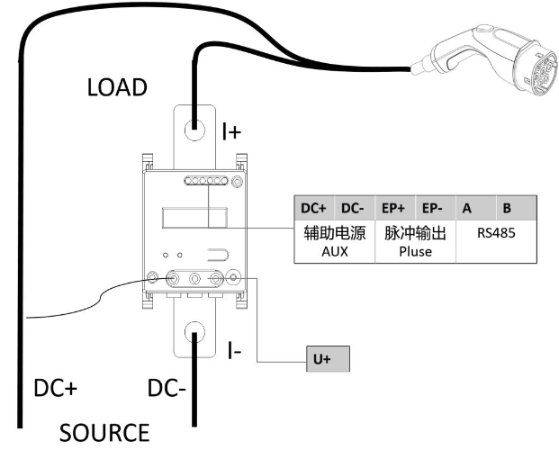

  • Dimensio & Wiring Diagram

  • Application varius

  • Renewable Energy

  • Opus Site Application
