DC 6-canales -48V Energy Meter pro Telecom Base Statio

6 Canales DC Mensurae

Ratum Voltage: -48V DC (-40~-60V)

Virtus Supple pro Aula Sensor ± 12V

Aula sensorem Nulla summa Calibration

RS485 Communication

LCD Propono (Libitum)

Contact Us
PREV: AC Dual Circuits Energy Meter pro Multi-Inverter Hybrid System
DEINDE: MID Certified AC Single Phase Energy Meter with Externi CT

+86-18702106858 / +86-21-69156352

[email protected]

  • Describe

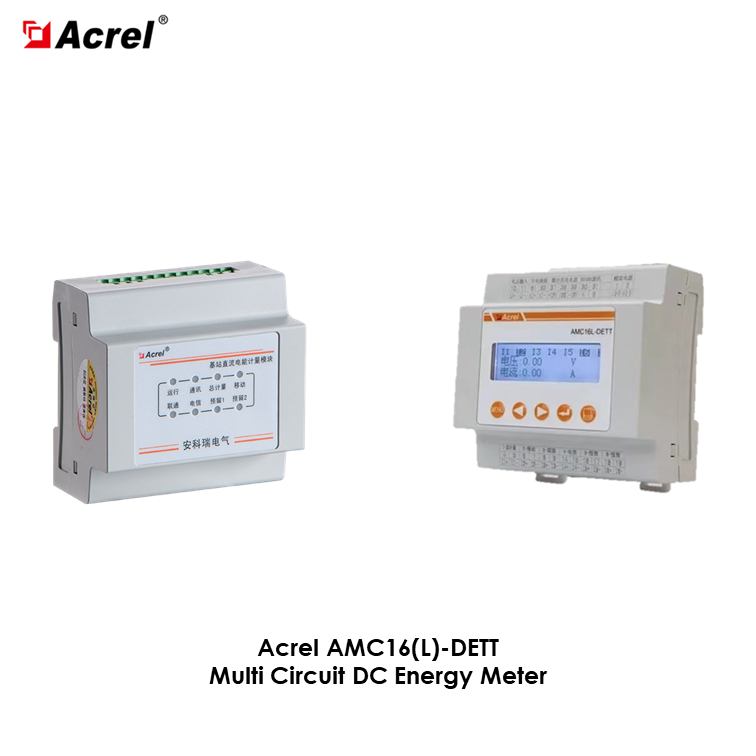

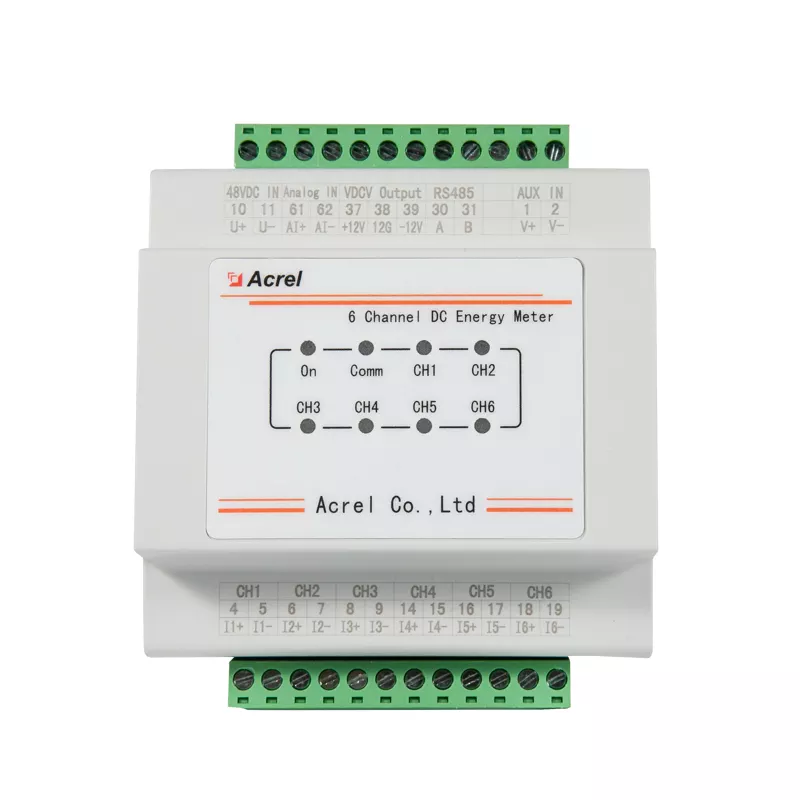

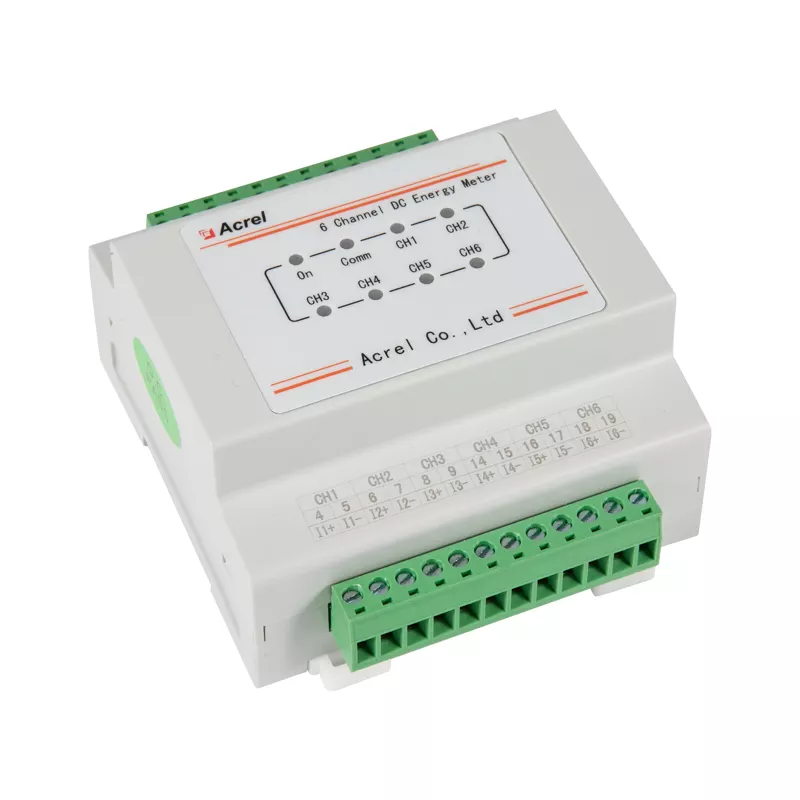

  • AMC16(L)-DETT base-statio DC navitas metrorum moduli machinatum est pro sitis qui exosculationem tenentem requirunt, sed cuius potentiae switch modus copiae mensurae energiae per-usoris carent.

    Eodem tempore metra 6 DC circuitus dum potestatem operantem comiti Hall-effecto sensoriis tribuit.

    Gradus industrialis RS485 portum cum Modbus-RTU protocollo et SGS verificata CE conformitas plenam obsequium cum signis EU curet.

    Cooperantem Customers:

  • Specifications
  • Technical parametri Index
    Input DC rated voltage 1 canalis: -48VDC
    DC current VI channels sensoriis output est 5V, ratio current profectus est secundum ipsam rationem
    Potentia commercial magna 1 channel transfusor initus: 0-5VDC aut 4-20mA
    Voltage: 1.2 tempora continua, 2 tempora continua 1s;
    ONERO facultatem Current: 1.2 tempora continua, 10. tempora continua 1s.
    Accuracy (superpositionis praetorium sensoriis) I% In≤I≤10% in accuracy ±2.5%; I> X% in accuracy ±2%
    Mensuratio resolutio Intentione output accurate 0.01V; current output accurate 0.01A;
    potentia output accurate 0.01kw; industria output accurate 0.01 kWh.
    Munera Munus fundamentale Monitor fabrica ratio temporis, summa intentione, output total current, potentia, industria, quisque canalis voltage, current, potentia, industria; LED signum ostentationis CDLXXXV communicationis .
    Metering function Satus current: sub voltage aestimata, cum onus praesentis pretii metri 1% max a non excedit. vena, metrum incipit.
    Current cursus current: cum in ambitu metri currenti nullus est, et 85%-125% voltage aestimati in intentione circuii applicatur, calculator non plus habebit quam unum digital mutatio .
    Terror munus DC voltage output low terror, DC voltage output summus terror, potentia down terror, modulus voltage damnum terror, metering ramus error terror, programmatis error terror internus, horologium error terror, memoria defectum terror, AC input potentia deficiendi terrorem
    Leo munus support passim leo, potest remotus leo ad metrum per RS485 communicationem.
    Communicationis Singulus canalis RS485, baudrate 9600bps, apponi potest ad 1200BPS, 2400bps, 4800bps.
    Communicationis protocol: standard or custmized
  • Dimensio & Wiring Diagram

  • Application varius

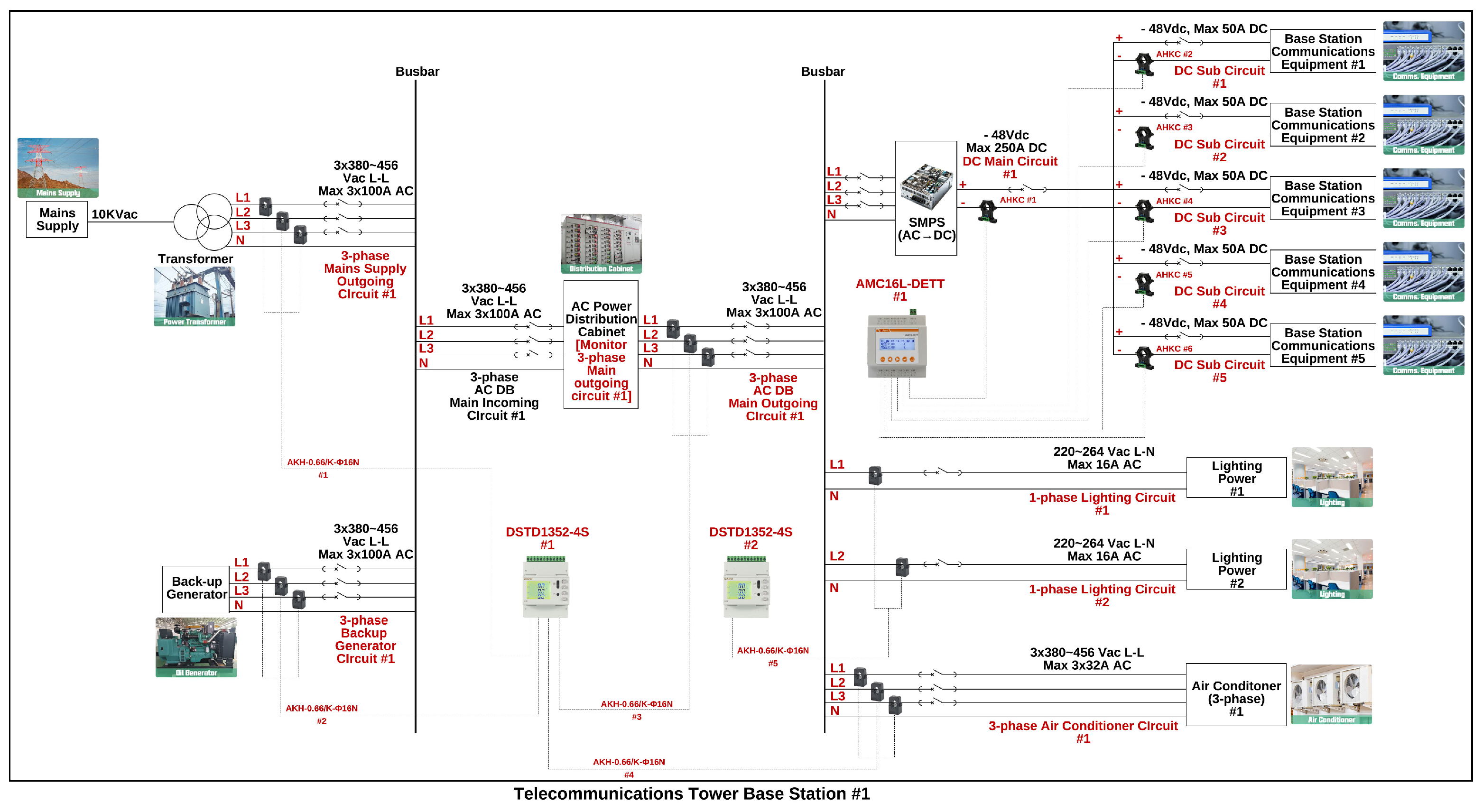

  • Solutio in Turris Telecom Base Statio EMS

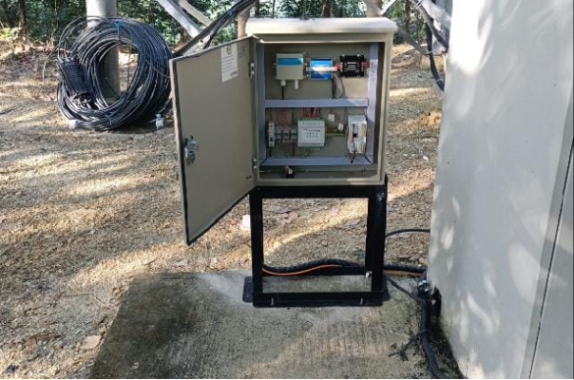

  • Opus Site Application
