Multi-circuitus mensurae
Instructus III-in-I Split Caput CTs
RJ12 Connection, Securus Installation
Ratum Current: 5A/100A/400A/600A
4G/WiFi/Ethernet/LoRa Comm. Libitum
IV canales tribus Phase seu XII canales Singulus Phase
CE Certificatum
Applicationem: Apartment, Factory Production Line, School
+86-18702106858 / +86-21-69156352
Acrel ADW210 Multis Circuitibus Energy Meter est valde versatile et provectus metrum energiae magnae ad efficientem destinata. Communication Wireless sustentare potest (exempli gratia 4G/Wi/Ethernet/LoRa/LoRaWAN) ab externo modulo.
Instructus cum 3 - in - 1 CTs, multiplices currentes aestimatos inclusos 5A, 100A, 400A et 600A sustinet, ut flexibilem applicationem in variis missionibus facile inauguratur.
Adaequare potest usque ad 4 canales tres - phases circuitus vel 12 canales unius - periodi simul circuitus. Communicatio cum RS485 in Modbus - RTU protocollo fundata, certas notitias tradendas efficit.
Cogitatus est CE certificatorium, in tuto ac qualitate praestans. Multum valet in conclaviis, lineis productionis officinarum, in scholis, et in aliis fundis, adhibitis industriae vigilantia accurata et comprehensiva. Praepotentia eius munera et certa officia praestantem electionem industriae in administratione faciunt
| ADW210 | Morbi laoreet | ||
| Potestas auxiliaris | AC/DC 85～265V,DC 48V, AC 380V; | ||
| Input | Frequency | 45～65Hz; | |
| Voltage | AC 3×220V/380V; | ||
| Overload: 1.2 times of rated value (continua); 2 times of rated value / 1s; | |||
| Virtus consummatio: ≤ 0.5VA; | |||
| Current | AC 5A、100A、400A、600A (foramen externum commutator) | ||
| Overload: 1.2 times of rated value (continua); 10 times of rated value /'s; | |||
| Virtus consummatio: ≤ 0.5VA; | |||
| Mensuratio Accuracy | Frequentia 0.05Hz, intentione ac currenti gradu 0.5, energia electrica electricum activum 1, reactivum electricum energiae electricum 2; | ||
| 2-31 temporibus accurationis harmonicae: ± 1%; | |||
| Features | Pulsus output " | Output modus: optocoupler pulsus cum magistro aperto; | |
| Communicationis | RS485、Modbus-RTU;Baud rate 1200～38400; | ||
| Switching | input | Arida contactum input、Built in potentia copia; | |
| output | Output modus: Nullam normaliter aperta contactus output; | ||
| contactus rating: AC 250V/3A DC 30V/3A; | |||
| salus | Potestas frequentiae sustinere voltage | >AC 2kV/1min; | |
| Nulla resistentia | >100MΩ; | ||
| Environment | opus temperatus:-20℃～ 60℃; | ||
| Repono temperies:-40℃～ 70℃; | |||
| humiditas relativa: ≤95% Condensatio nulla; | |||
| Altitude:≤2500m; | |||
| Electromagnetica compatibilitas | Melius gradus III, | ||

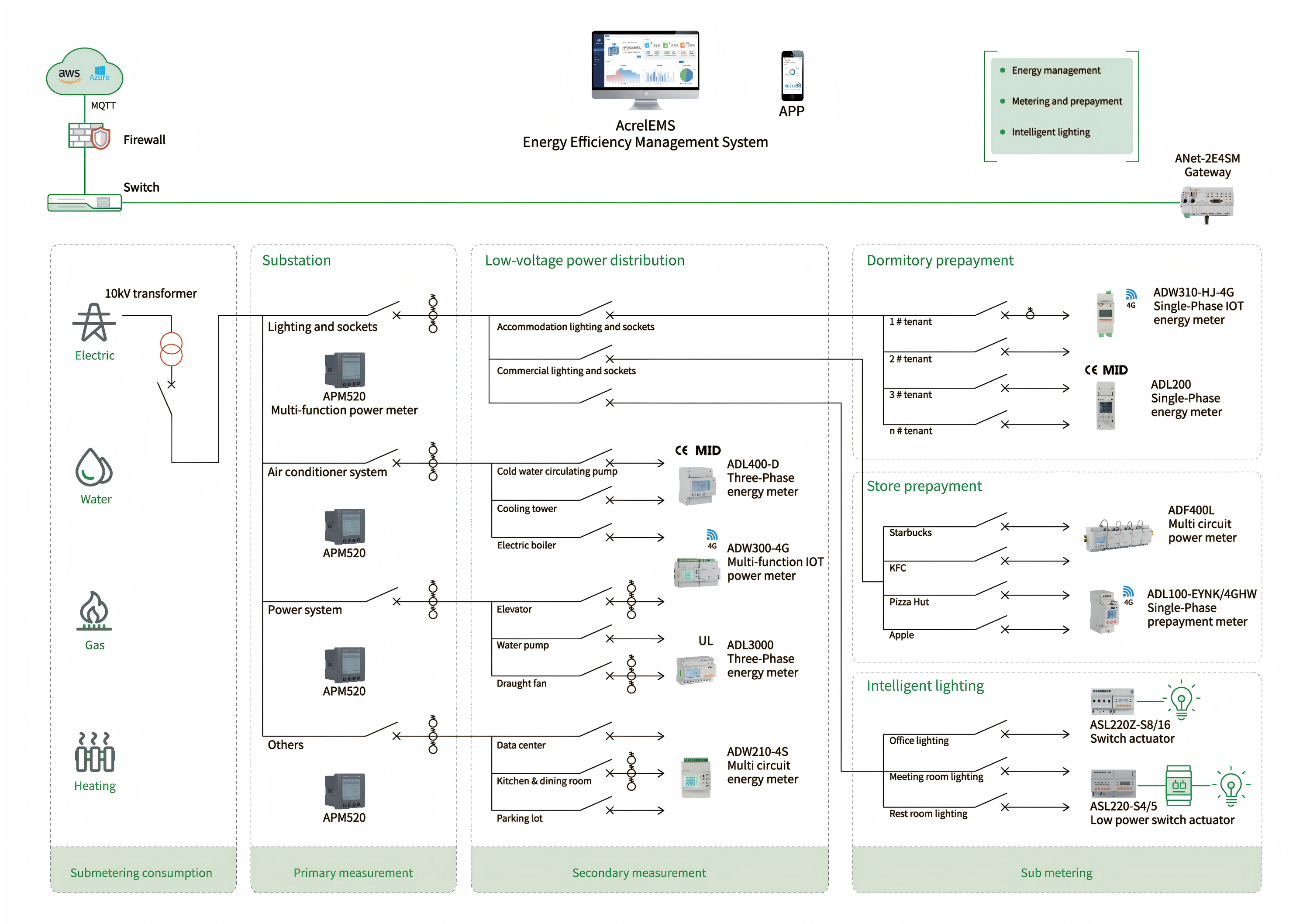

Energy Efficiency Management System
