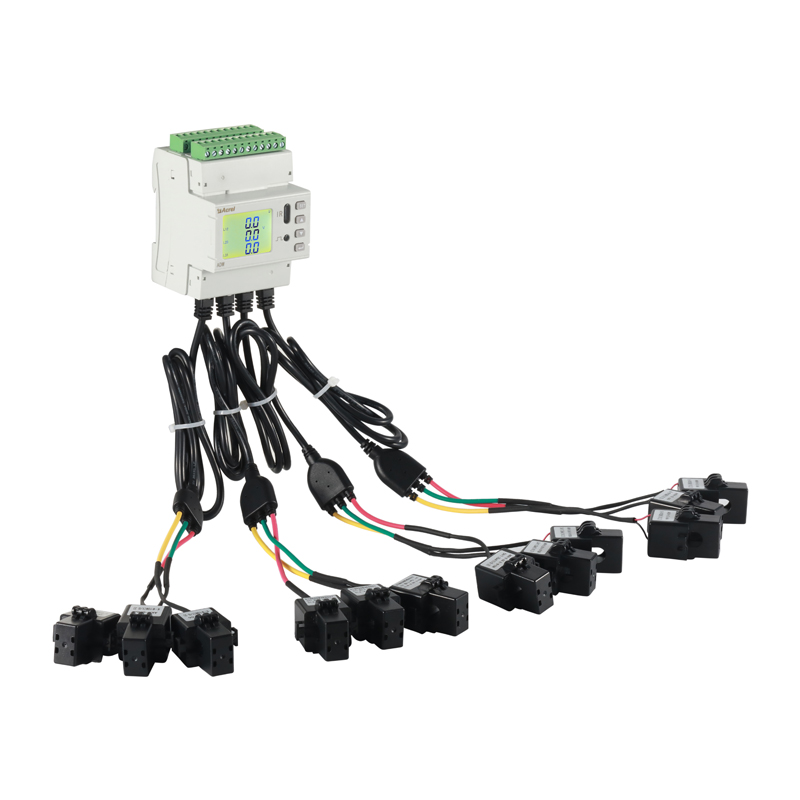

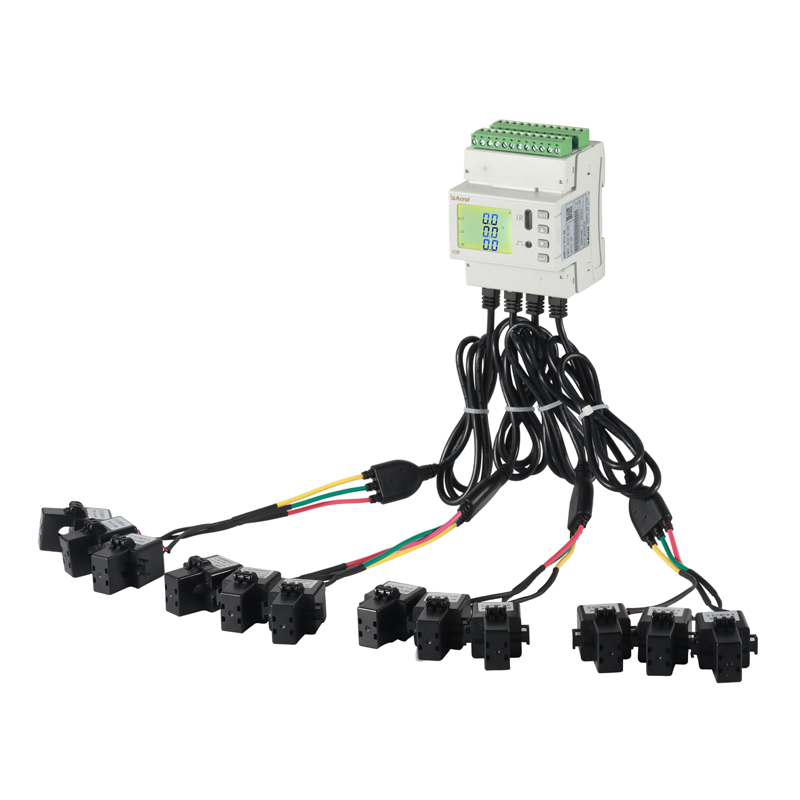

AC Multi-circuitus Energy Meter pro Base Statio

Multi-circuitus mensurae

Maximilianus. IV canales tribus Phase seu XII canales Singulus Phase

Aer Communication libitum

Modbus TCP Protocol

CE Certificatum

RS485 Communication

Applicationem: Base Statio

Contact Us
PREV: AC Tres Phase Wireless IoT Energy Meter
DEINDE: Proximum productum non

+86-18702106858 / +86-21-69156352

[email protected]

  • Describe

  • Acrel DTSD1352-4S DIN - rail ascendentes multi-circuitum potentiae metri dat magna vigilantia usque ad 4 tres periodi circuitus vel 12 unius periodi circuitus simul. Destinata ad bases stationes et applicationes industriales, definitas mensuras parametrorum electricorum inter intentionem, currentem, activam/reactivam potentiam, factorem potentiae, kWh energiam consumptionem, angulum, voltage/currentem inaequalitatem, et harmonicas usque ad 31 ordinem praebet. Lorem RS485 Modbus RTU communicationem, machinam sustinet inconsutilem integrationem in systemata energia administrandi pro notitia reali temporis acquisitione et vigilantia remota. DIN-rail consilium eius compactum institutionem facilem in gazophylaciis distribuendis efficit, certam solutionem offerens pro analysi multi- gyri, efficientiae optimizationis industriae, ac potentiae qualitas census in complexibus electricis ambitibus..

  • Specifications
  • Potestas auxiliaris AC/DC 85～265V or * DC 40-60V; potentia consumption≤10VA;
    Input signum Frequentia 45～65Hz;
    Voltage Ratum valorem: AC 3×220V/380V;
    ONERO: 1.2 temporibus valorem aestimatum (continuum); 2 times rated value/1 second;
    potentia consummatio: ≤ 0.5VA（each;
    Current Ratum valorem: secundarium initus aestimavit current：50mA
    ONERO: 1.2 temporibus valorem aestimatum (continuum); 10 times rated value/1 second;
    potentia consummatio: ≤ 0.5VA（each;
    Mensuratio Accuracy Frequentia: 0.05Hz, voltage and current: 0.5 class, active energy: 1 class, reactive energy: 2 class; 2nd to 31st harmonic accuracy: ±1%;
    Munus Pulsus output Output modus: pulsus optocoupler cum magistro aperto, pulsus assidue defaltis 400imp/kWh (activum apertum initus non potest esse nisi vel-vel.);
    communicationis RS485 interface, Modbus-RTU protocollum; baud rate 1200～38400;
    Switch Input 2-modo vel 4-modo passivum contactum siccum input, constructum in potentia copia;
    2-modo activa nodi humidi input (AC220V), cognosce oleum generantis et accessum (et pulsus output non potest esse nisi vel-or.);
    Output Output method: Nullam normaliter aperta contactus output;
    Contactus rating: AC 250V/3A DC 30V/3A；

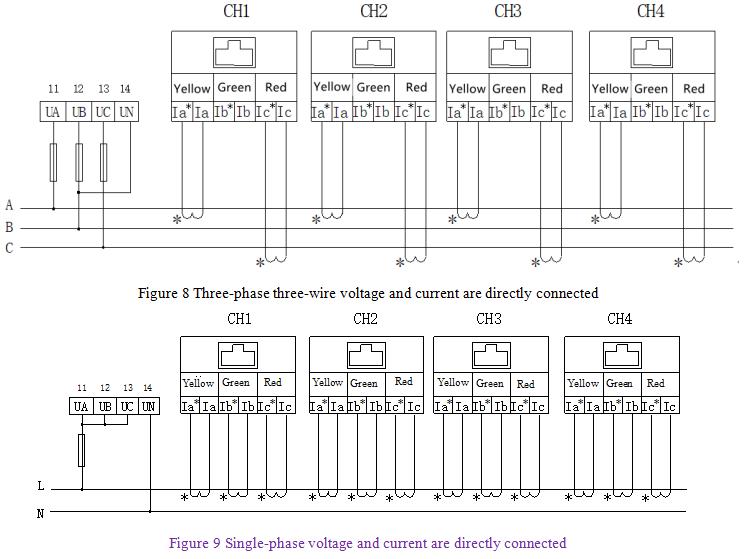

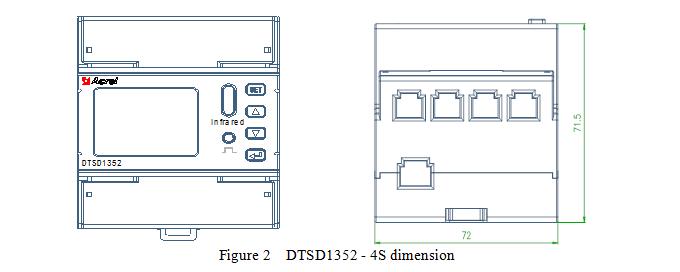

  • Dimensio & Wiring Diagram

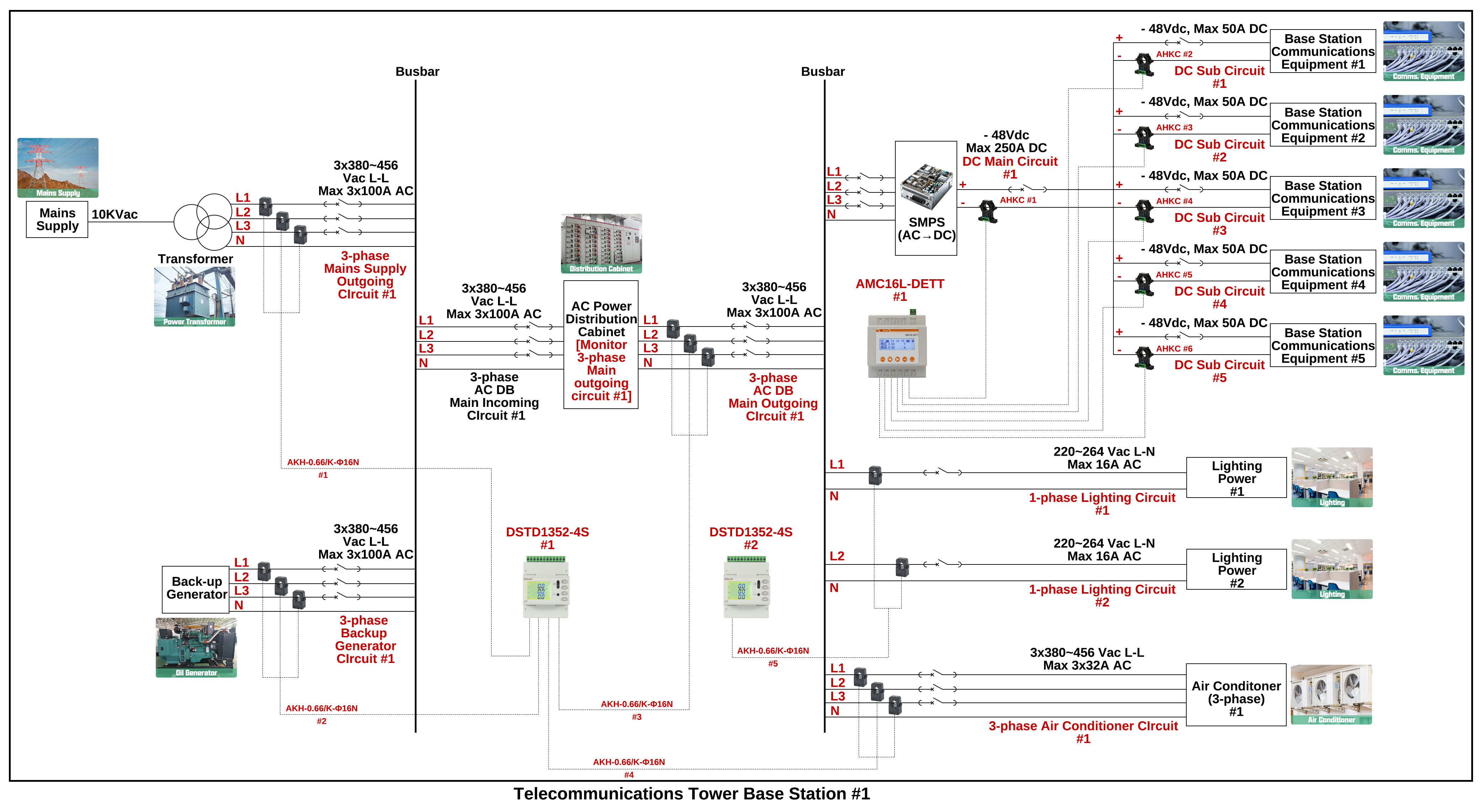

  • Application varius

  • Opus Site Application
