Resistentia magna
Super intentione et sub intentione terrorem
Monitum et terrorem
DUXERIT indicium / ostentationem LCD
Nullam 3 canales output
Event record
+86-18702106858 / +86-21-69156352

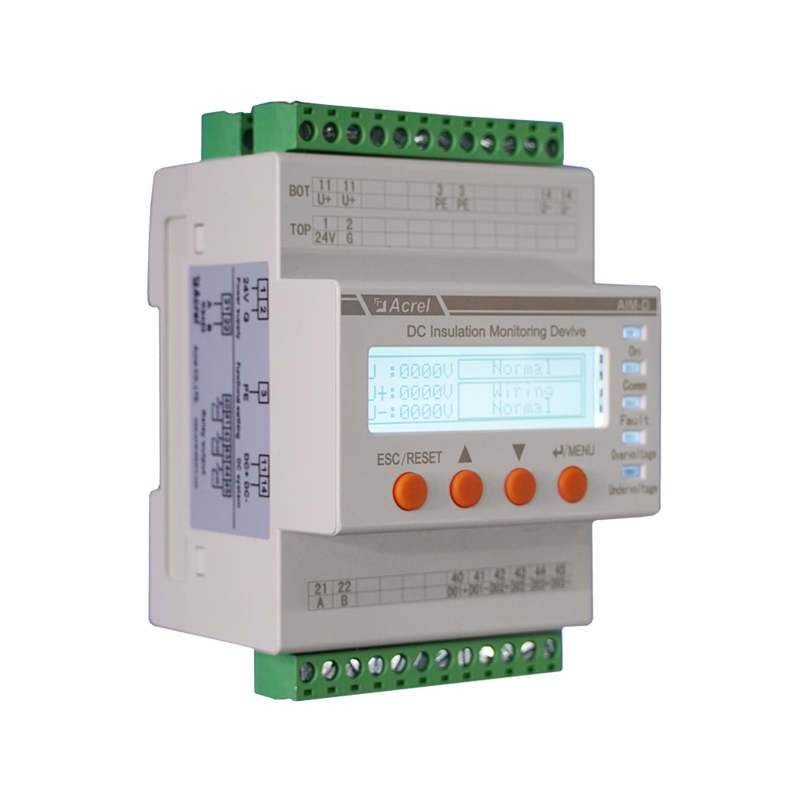

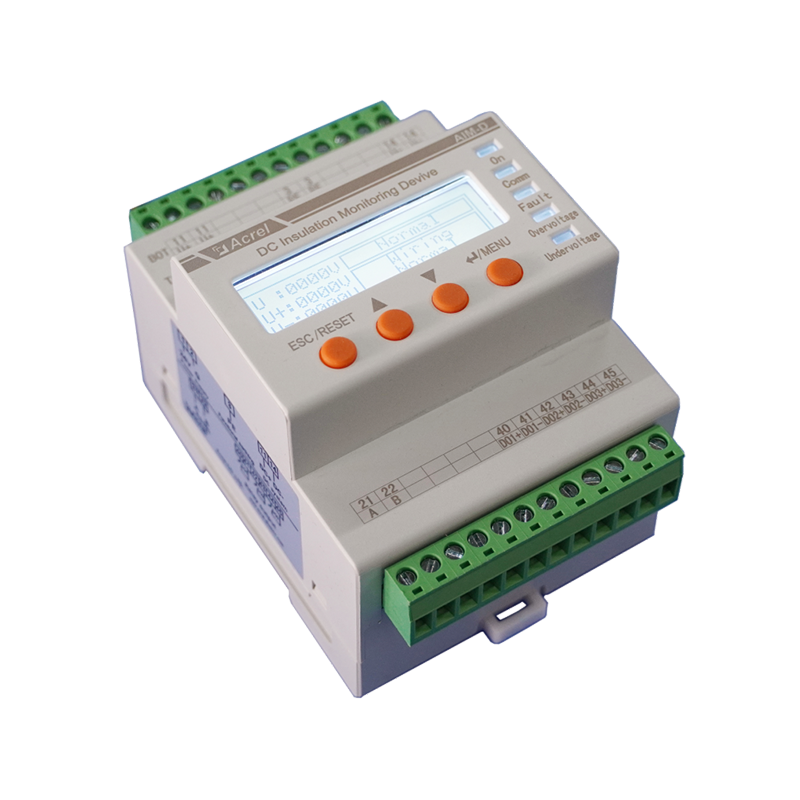

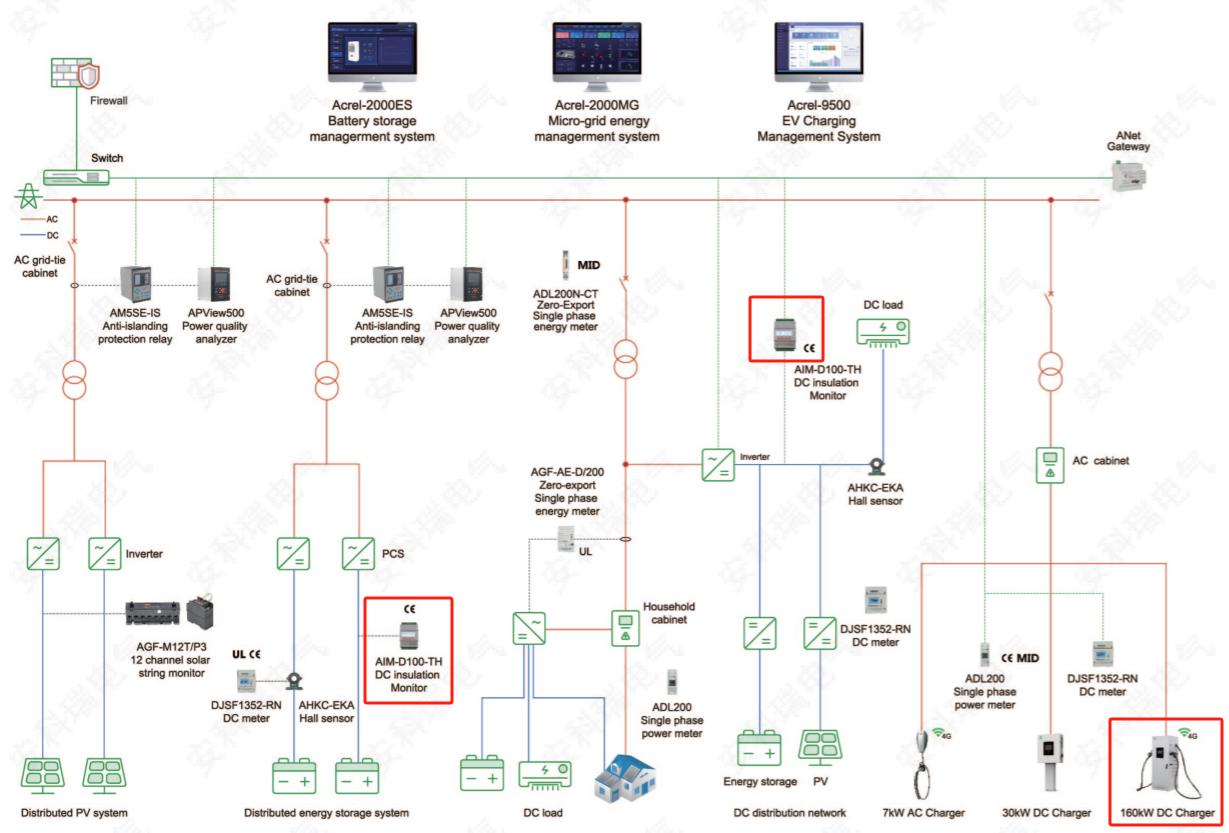

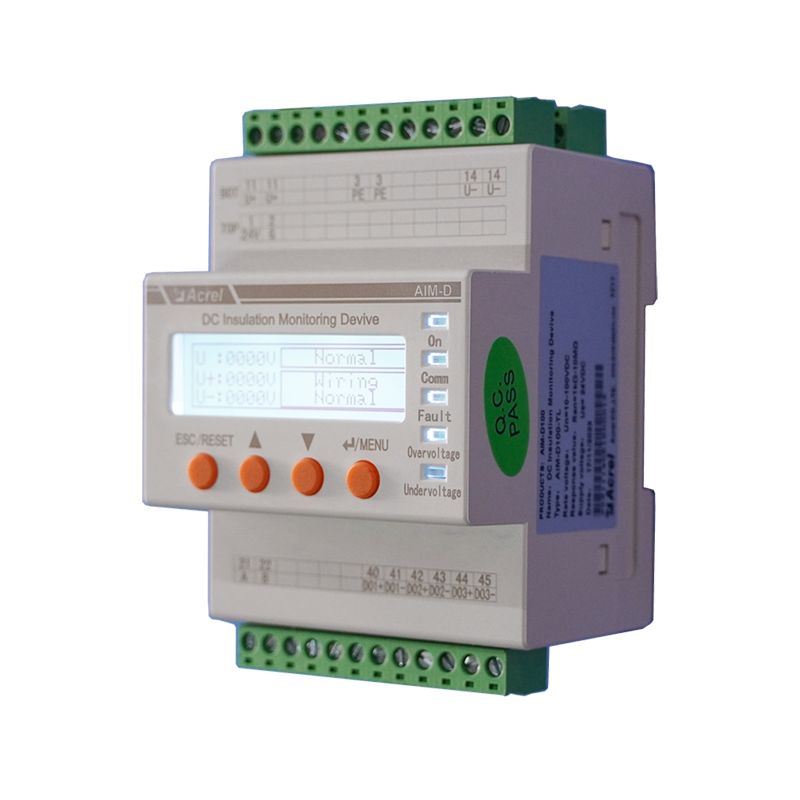

AIM-D100-TH DC monitor insulationis designatur systemata 10-1000V DC. Potestatem praestat salutem per continue vigilantia in IT systemata resistentia. Monet quaestiones potentiales cum velit resistentia, infra valores statutos cadit, aptam faciens applicationibus ut potentiae herbarum, substationum, EV patinarum, UPS et systematis solaris..
| Technical Parameter | Technical Specifications | |
| Potestas auxiliaris | DC 12 ~36V | |
| Maximum imperium consummatio | ≤ 6 W | |
| Voltage monitor | Voltage range | AIM-D100-TH: DC 100~1000V . |
| AIM-D100-TL: DC~100V | ||
| Sagaciter | 0.5 | |
| O*vervoltage limina | ≥ Rated Voltage * 1 2 0% | |
| Undervoltage limina | ≤ Rated Voltage * 8 0% | |
| Nulla adipiscing | Nulla resistentia range | 1 kΩ~ 10M Ω |
| Monitum et terrorem range | 10kΩ~10MΩ | |
| Sagaciter | 1~10kΩ: ±1k; 10k~500k: ≤3% | |
| Capacitas ratio lacus | ≤5μF | |
| Cras methodo | Cyclus felis: 5~ 500s mora apponi potest; | |
| Communicatio felis: lege in demanda | ||
| Nulla adipiscing speed | 500ms/cyclus; 1000ms/cycle | |
| Internum DC impediat | ＜ 1 MΩ | |
| metum modum | LCD, DUXERIT indicator, Nullam output | |
| A larm output | 3 Nullam outputs, N/O vel N/C constitui potest | |
| Contactum facultatem | AC 250V 5A . | |
| DC 30V 5A | ||
| Culpa Record | 20 culpa recordum s | |
| Communicationis | RS485 interface, Modbus-RTU protocol | |

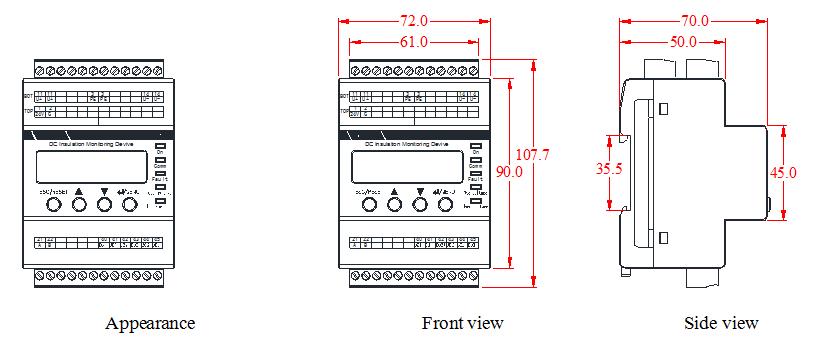

| Institutionem | DIN-rail institutionem | |
| Praesidium campester | IP30 | |
| Environment | O perating temperatus | - 2 0~ 60 ℃ |
| S torage temperatus | - 25 ~ 7 5℃ | |
| R elative humiditas | <95% , sine condensatione | |
| A ltitude " | < 2000m | |
