Rated Current 100A Directe
MID Certificatus
Princeps Accuracy Class C
Rated intentione 3*230/400V
35mm DIN Rail Mounted
Pulsus output

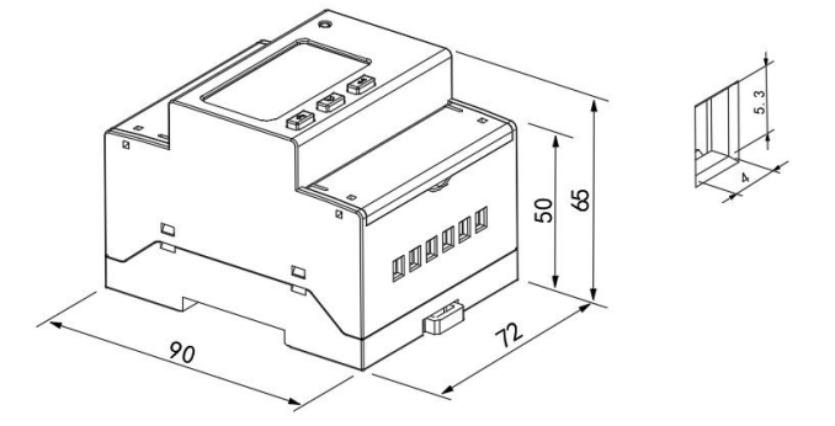

4 Moduli 72mm Latitudo
+86-18702106858 / +86-21-69156352

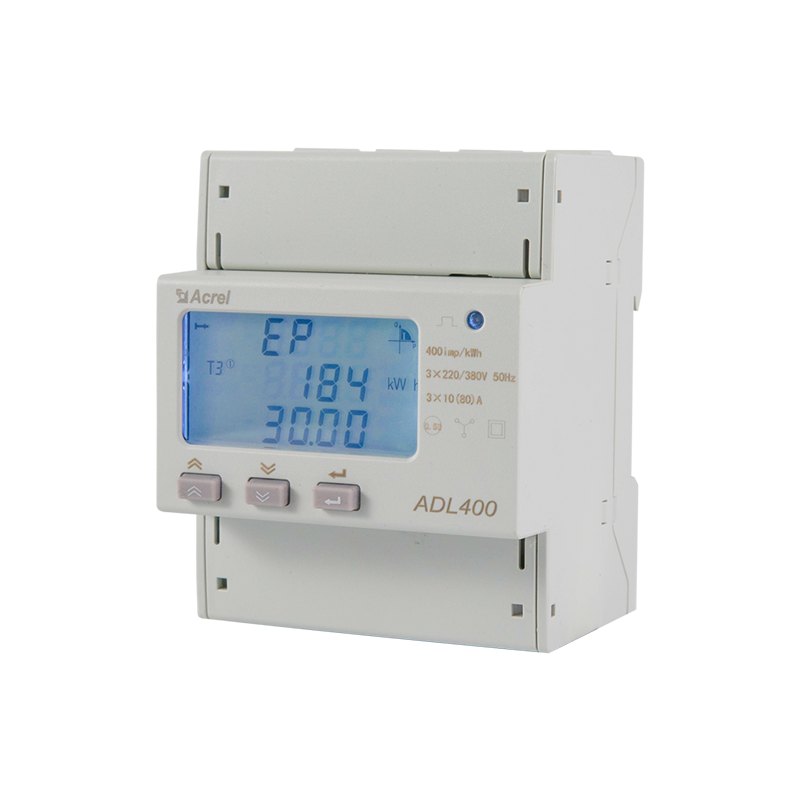

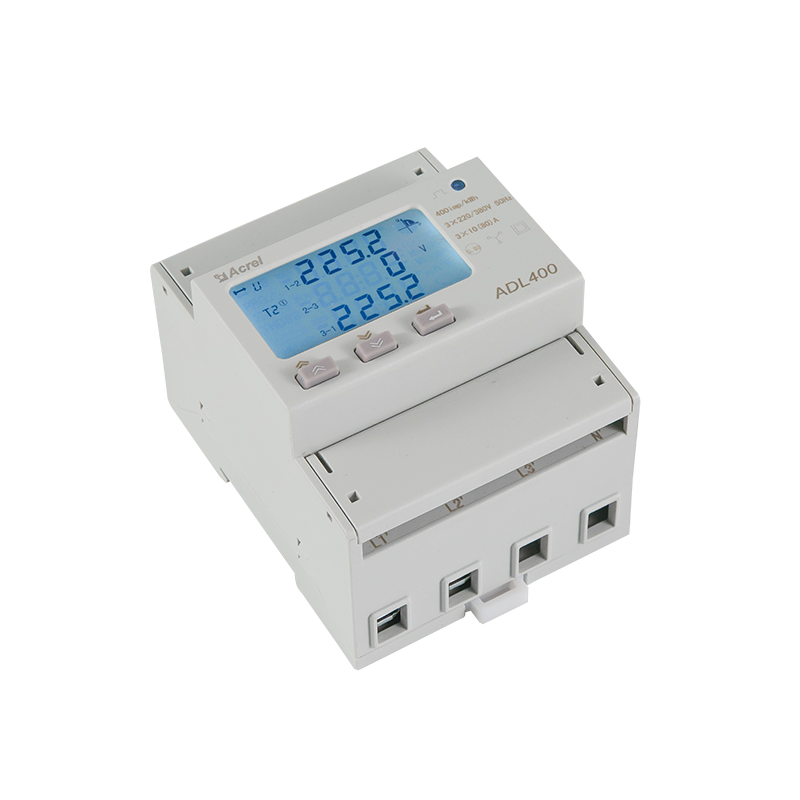

ADL400 est callidum metrum destinatum pro Energy Monitoring et Management Systema et EV Charger cum currenti 100A directum input et MID Certficatum. Praecipuam praecisionem, parvitatem et simplicem institutionem notat.
Mensurationem omnium parametrorum electricorum cum comprehensive electricitatis metrorum et administrationis integrat, harmonica 2-32 et summa harmonica contenta inhibet. Ad portum communicationis RS485 accommodatum et ad MODBUS-RTU accommodatum.
ADL400 Adhiberi potest in omnibus systematibus moderandis, systemata SCADA et systemata energia. Metrum occurrit technicis requisitis electricitatis metri in signis IEC62053-21 nexis.
| Parameter | ||||
| Specification | III tempus III fila | III tempus IV filis | ||
| Mensuratio | Voltage | Relatio voltage | 3×100V、 3×380V | 3×57.7/100V、 3×220/380V |
| Voltage range | 3×100V - 3×450V | 3×57.7/100V - 3×260/450V | ||
| Consummatio | <10VA(Unum tempus) | |||
| Impedimentum | >2MΩ | |||
| Sagaciter classis | Error ± 0.2% | |||
| Current | Input current | 100A | ||
| Consummatio | <1VA Una phaselus aestimatus est | |||
| Sagaciter classis | Error ± 0.2% | |||
| Potestas | Active, reciprocus, vis apparens, error ± 0.5℅ | |||
| Frequentia | 45～65Hz，Error±0.2% | |||
| Metering | Energy | Activa industria (Accuracy class: 0.5); industria reactivum (Accuracy classis 2) | ||
| Horologium | ≤0.5s/d | |||
| Digital signum | Energy pulsus output | 1 active photocoupler output | ||
| Pulsus | Latitudo pulsus | 80±20ms | ||
| Pulsus constant | 400imp/kWh, 10000imp/kWh (Corresponde cum basic vena) | |||
| Communicationis | Interface and communicationis protocol | RS485：Modbus RTU | ||
| Range communicationis electronica | Modbus RTU:1~ 254； | |||
| Baud rate | 1200bps~38400bps | |||
| Envir-onment | opus temperatus | -25℃~ 55℃ | ||
| Relativum humiditas | ≤95℅(Nulla condensatio) | |||

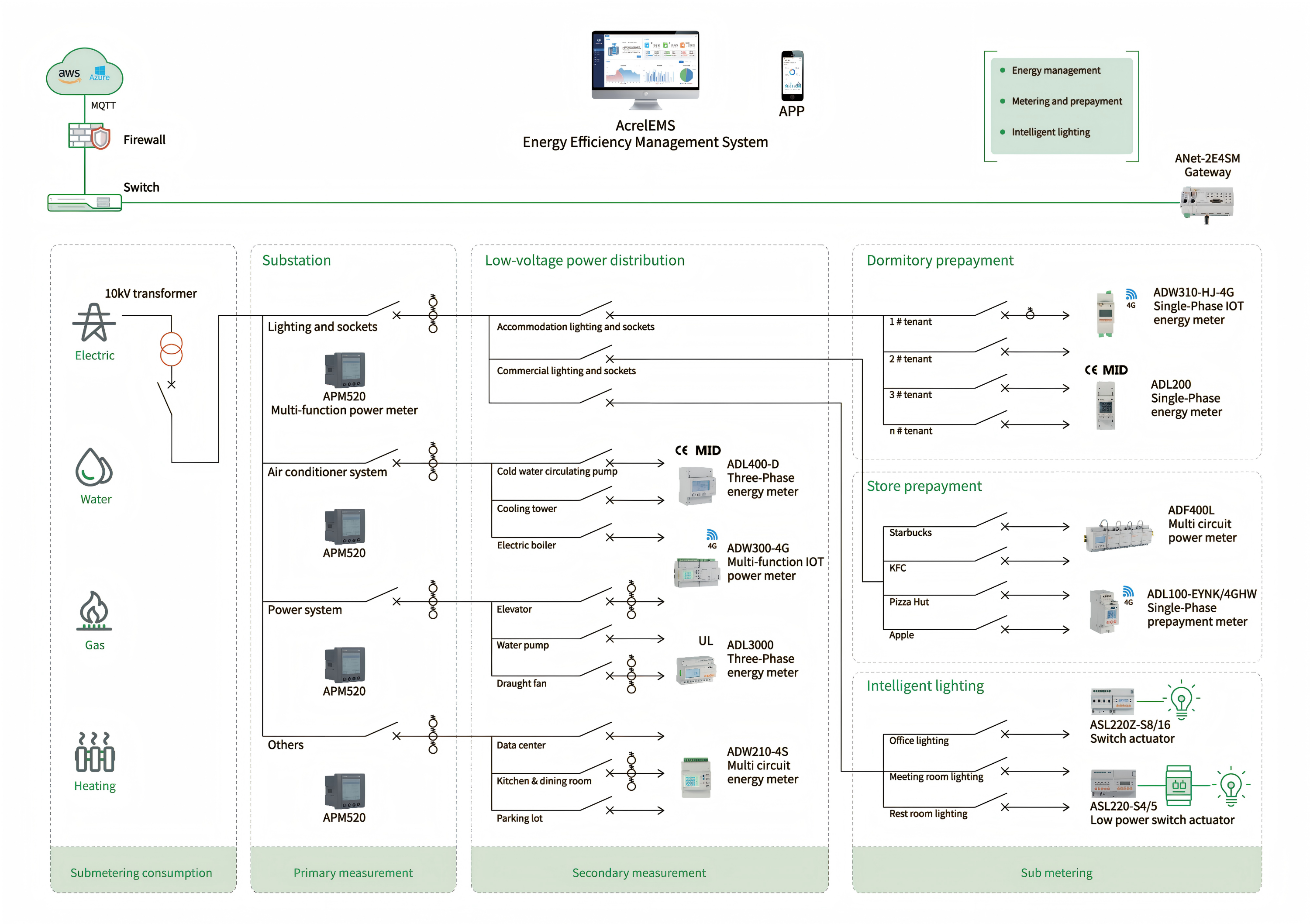

Energy Efficiency Management System

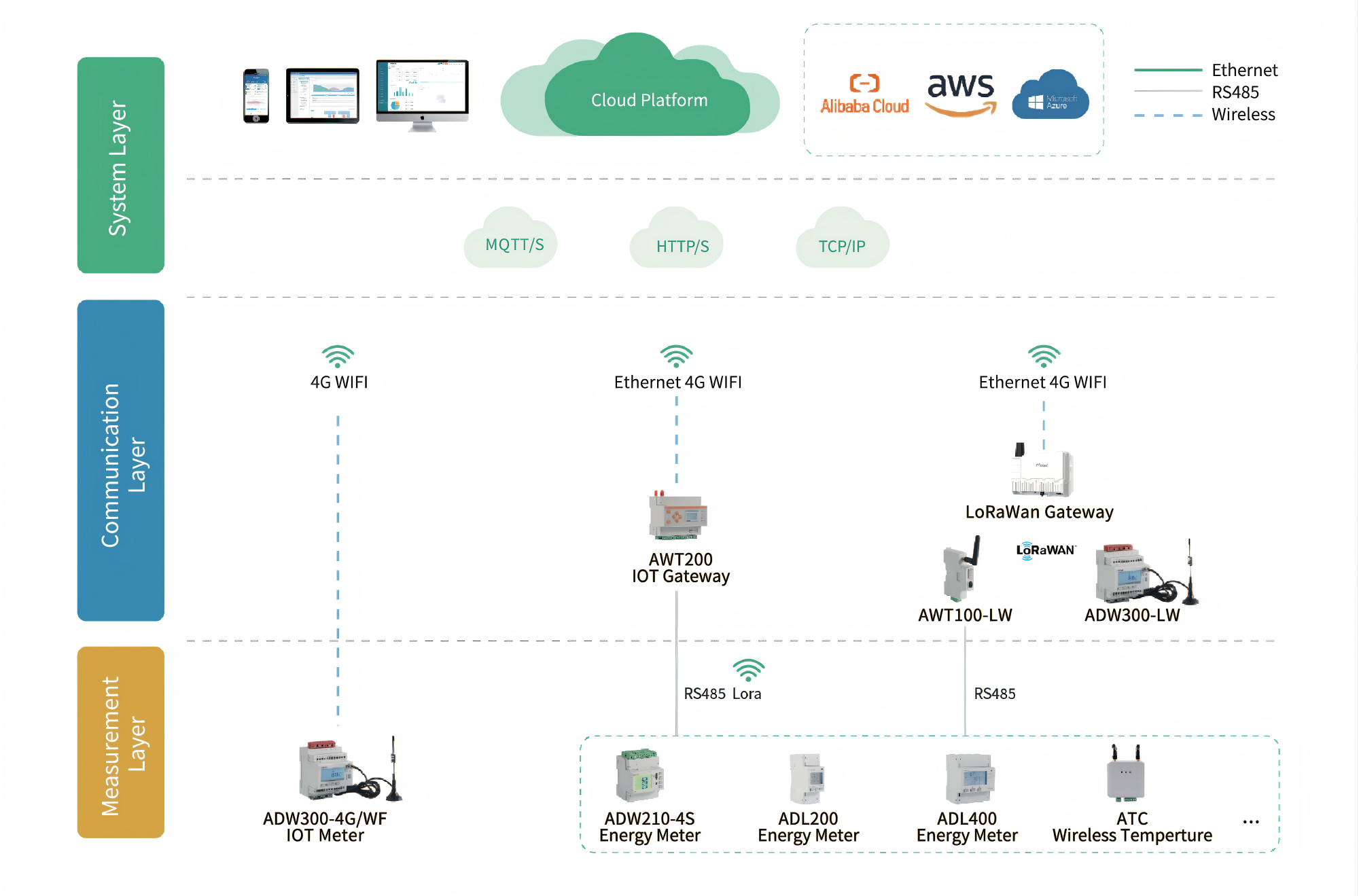

IoT Energy Procuratio System

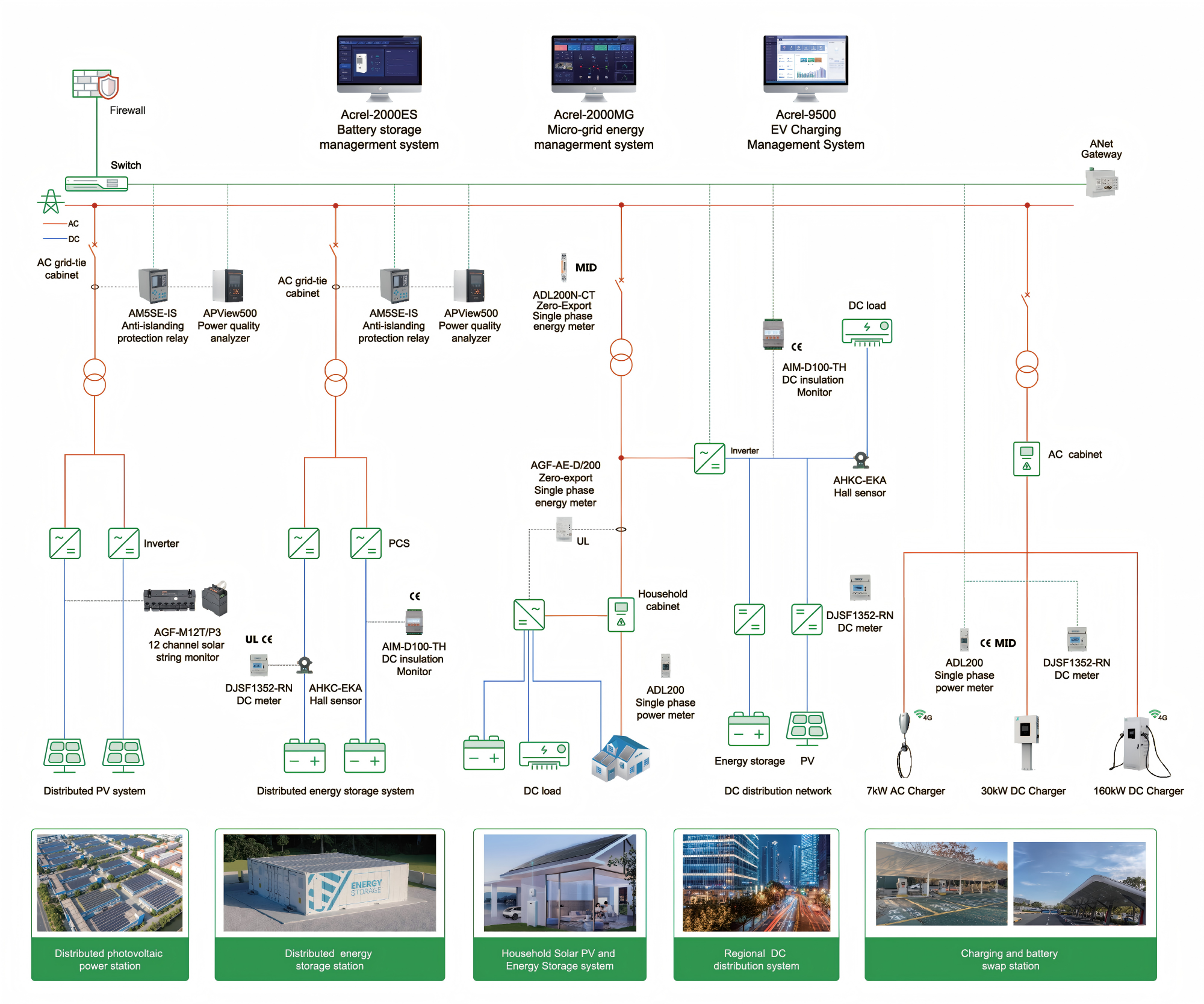

Renewable Energy
