Rated Current: 80A Direct or 5A by CTs
Ratum intentione: 3*230/400V
Nam Solaris Inverter Nulla Export
RS485 Communication
+86-18702106858 / +86-21-69156352
ADL3000-E est urbanus tres-phase multifunctionis energiae metricae designatae ad potentiam copiarum systematum, industrialem et fodiendarum conatum et utilitates.
Mensurationem accuratam electricitatis consummationis et comprehensivam electricae administrationis exactionem praebet. Notae clavium mensurae bi-directionales et capacitates mensurae duplices includunt, ut accurate energiae mensurae in systematis complexivis virtutis includant.
Instrumentum communicationis RS485 instructum est, compatitur cum protocollo MODBUS-RTU, integrationem expediat in varias systemata temperantia, systemata SCADA et systemata industria administrandi.
Certificatus ab UL stricte occurrat salus et signa perficiendi. Cum æstimatione aestimata 3×277/480V, amplis applicationibus aptum est. Summus praecise mensurae, parvitas, et simplicis institutionis eam optimam electionem faciunt ad industriam vigilantiam et administrationem in diversis fundis industrialibus et mercatoriis.
| DTSD1352 | Specifications | ||

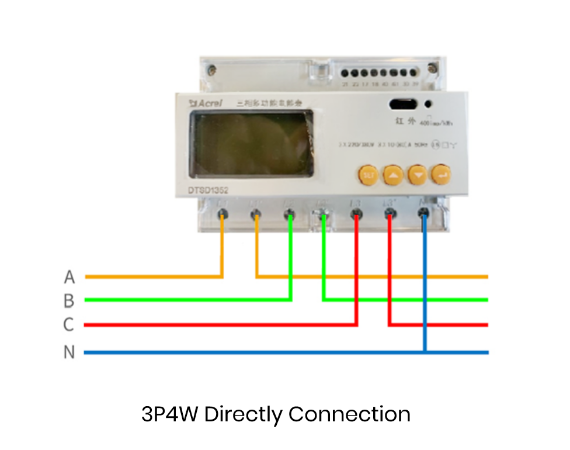

| Phase | 3 tempus 3 fila, 3 tempus 4 fila | ||
| Mensuratio | Voltage | Relatio voltage | 3×100V, 3×380V, 3×57.7/100V, 3×220/380V |
| Consummatio | <10VA(Unum tempus) | ||
| Impedimentum | >2MΩ | ||
| Sagaciter classis | Error ± 0.2% | ||
| Current | Input current | 3×1(6)A(by CTs), 3×10(80)A 3 × 10 (C) A (instructus CTs) | |
| Consummatio | <1VA Una tempus rated current | ||
| Sagaciter classis | Error ± 0.2% | ||
| Potestas | Active, reciprocus, vis apparens, error ± 0.5℅ | ||
| Frequentia | 45～65Hz, Error ± 0.2% | ||
| Meter | Energy | Activa industria (Accuracy class: 0.5，1.0) | |
| reactivum industria (Accuracy classis II) | |||
| Horologium | ≤0.5s/d | ||
| Digit signum | Energy pulsus output | I active photocoupler output-I reciprocus optocoupler output | |
| Switching output | I Switching output | ||
| Switching input | I initus optocoupler | ||
| Pulsus | Latitudo pulsus | 80±20ms | |
| Pulsus constant | 400imp/kWh, 10000imp/kWh (Corresponde cum basic vena) | ||
| Communicationis | Interface and communicationis protocol | RS485：Modbus RTU | |
| Range communicationis electronica | Modbus RTU:1~ 247； | ||
| Baud rate | 1200bps~19200bps | ||
| Environment | opus temperatus | -25℃~ 55℃ | |
| Relativum humiditas | ≤95℅(Nulla condensatio) | ||
