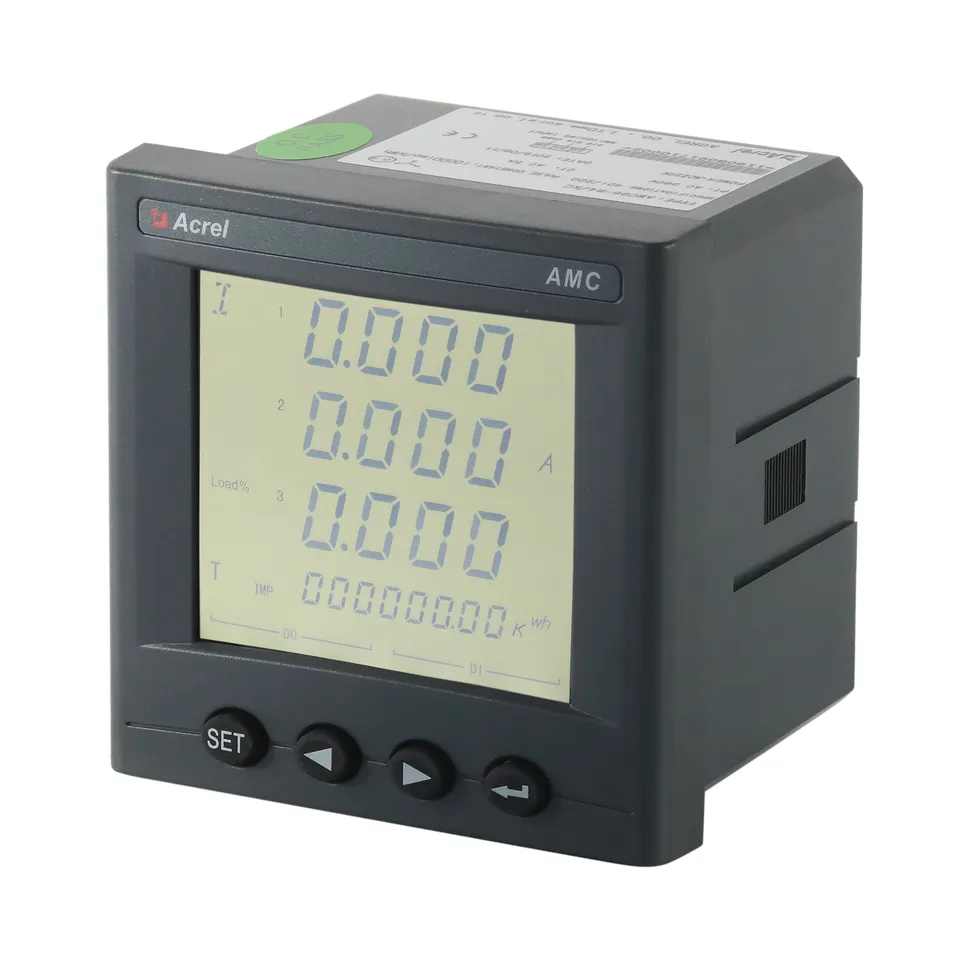

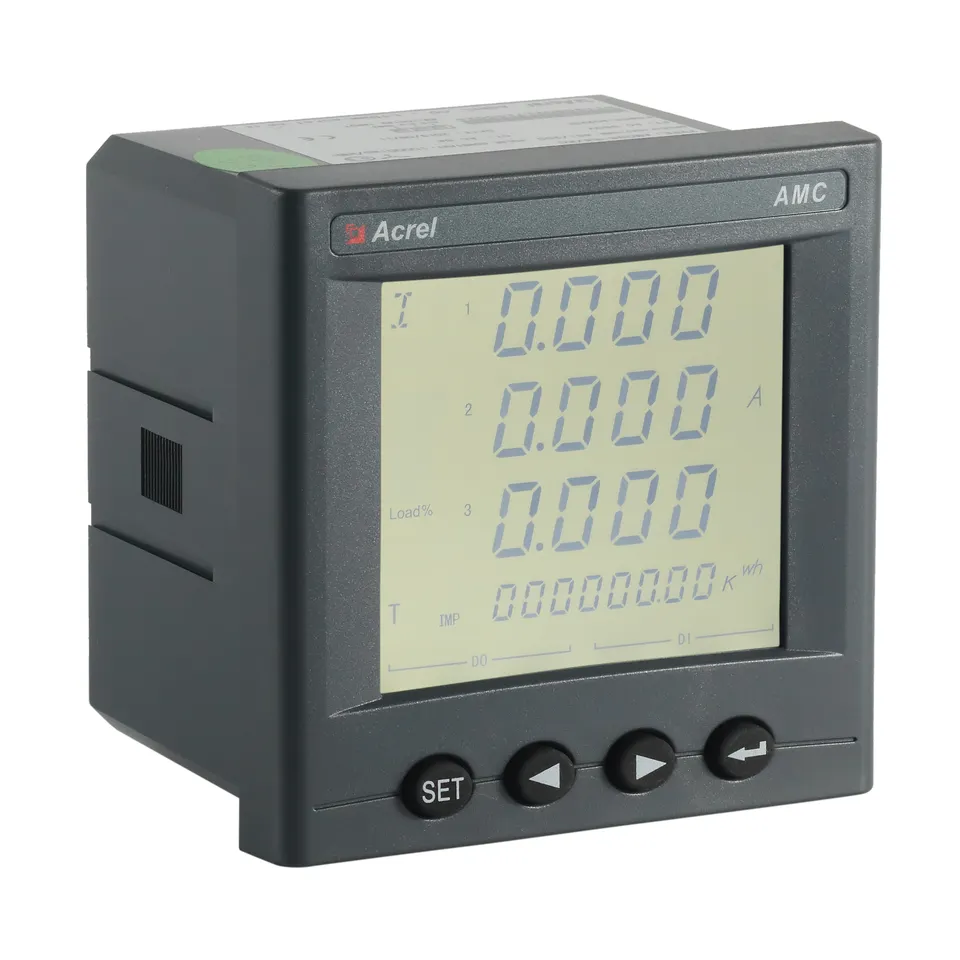

AC Three Phase Programmable Panel Mounted Energy Meter

AC Tres Phase Mensurae

Input Current: 5A/1A ab CTs

THD with 2-31st Harmonics

Ture RNS mensurae

4DI & 2DO

Pulsus output

Contact Us
PREV: AC Single Phase 100A Wireless IoT Energy Meter
DEINDE: DTSD1352 AC Three Phase Energy Metre for Solar Inverter Zero Export

+86-18702106858 / +86-21-69156352

[email protected]

  • Describe

  • AMC96L-E4/KC summus accuratio AC trium phase programmalium tabulatorum energiae metrorum machinatorum est ad tempus potentiae vigilantiae, administrationis industriae ac potentiae qualitatis analysi in industrialis, commercialis et centri institutionibus datarum. DIN casus 96×96 mm compactus cum 0.5-classis multifunctionis mensurae veras lectiones RMS voltage, current, activum/reactivum/apparens potentia, factor potentiae, frequentiae, import/exportatio kWh et kvarh cum Modbus-RTU RS485 communicationum insutilem SCADA, BMS vel EMS integrationem tradit. Quattuor quadrans tariff metering, 31st pravitatis harmonicae captio, analysin THD, recordationem postulare, profiling onus et quattuor tariff TOU subsidium da accuratam exosculationem et efficientiam optimiizationis. Lata-range 3×57.7/100 V...3×380/660 V, 0.02-6 Connexio directa vel CT input, bi-directional energiae calculi, pulsus output, nullum terrorem et probationem sollicitandi sigillum faciunt AMC96L-E4/KC specimen pro switchgear, distributionis tabularum, PV plantarum, EV statiorum pressionum et applicationum callidiorum occurrentium IEC.

  • Specifications
  • Technical Parameters Precium
    Input Connection Unum tempus-2-filum, 3-phase-3-filum, 3-phase-4-filum
    Frequentia 45-65Hz
    Voltage Rating:
    unius paschae AC 100V、400V
    Tres phase:  AC 3×57.7V/100V(100V) 、3×220V/380V(400V) 、3×380V/660V(660V)(96 magnitudo)
    ONERO: 1.2 ovile rating {continuum) : 2 ovile rating pro 1 secundo
    Potentia consummatio:< 0.5VA
    Current Rating: AC IA、5A
    ONERO: 1.2 ovile rating (continuum); 10fold rating pro I secundo
    Potentia consummatio:< 0.5VA
    Output Energia electrica Output mode: open-collector photo-coupler pulsus
    Pulsus constant: 10000imp/kWh(stare) ，see wiring diagram for details
    Communicationis RS485port, Modbus -RTU protocol, DLT645 protocollum (versiones 07 et 97)
    baud rate 1200 ~ 38400
    Munus Switching input Arida contactus input, copia in potentia aedificata; si exemplar est KA, est AC 220V activum.
    Switching output Modus output:  Nullam normaliter aperta contactus output
    Facultas contactus: AC 250V/3A、 DC 30V/3A
    Analog output 4 - 20mA
    Sagaciter classis Frequentia:0.05Hz,Current、Voltage:0.2 class,Reactive power:l .0class,Reactive Electric energy:l .0class, active power:0.5class,active electric energy: 0.5class,2-31th harmonic measurement:±1%
    Potentia copia AC/DC 85-265V vel DC24V（±20%）or DC48V(±20%)
    potentia consumption≤10VA
    Securitas Potestas frequentiae sustinere voltage Inter Potestatem copiam // Commutatio Output Current Input// intentione Input et Transmittendi // Communicatio // Pulse Output // switching input AC 2 kV 1min;
    Inter Power、switching output、Current Input、voltage Input AC 2 kV 1min;
    Inter TransmittendiCommunication、 Pulsus Output、switching input AC 1kV 1 min;
    Nulla resistentia Input、Output finem machinae clausurae> 100MΩ
    Environment Temperature opus: -25°C~ 65°C  repono: -40°C ~ 80°C
    Umor ≤93% RH Non densans
    altitudo ≤2500m

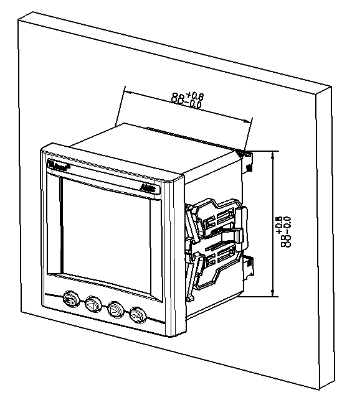

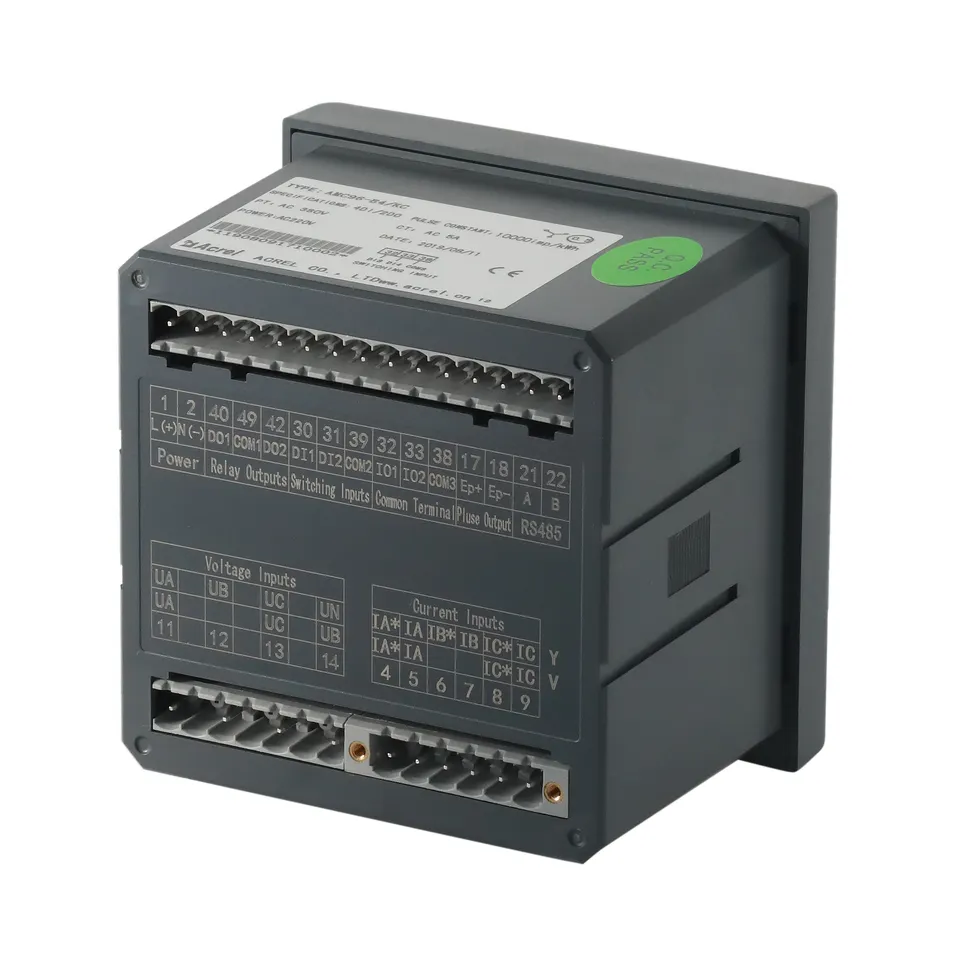

  • Dimensio & Wiring Diagram

  • Application varius

  • Solutio potentia Cras

  • Opus Site Application
