CE&RED Certification
Exemplar:C: Receptor; Z: Repeater; M: Receptor
Data Uplink: RS485, Modbus-RTU

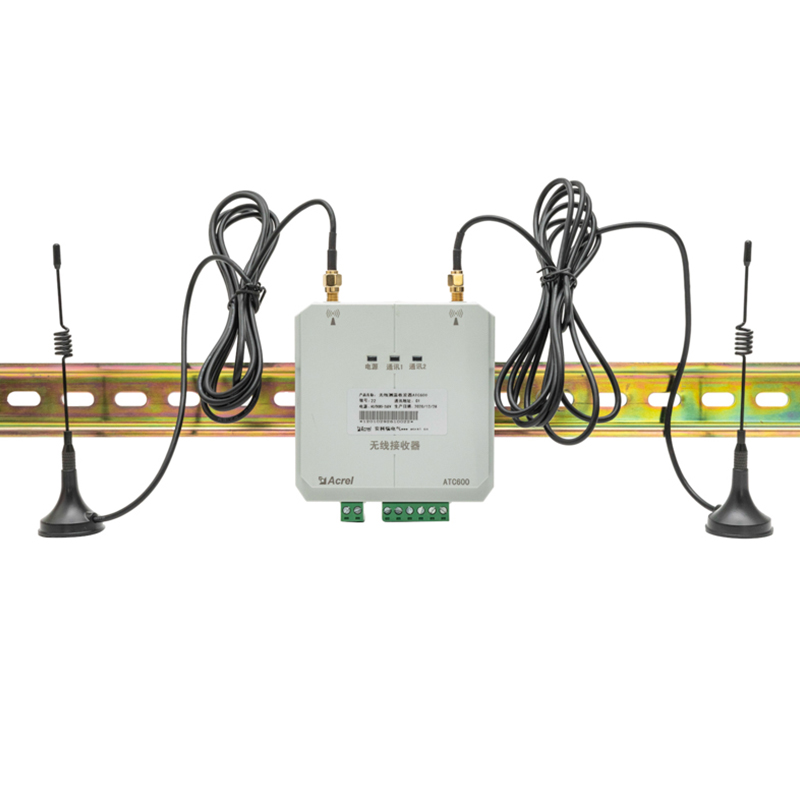

35mm Din Rail Mounted

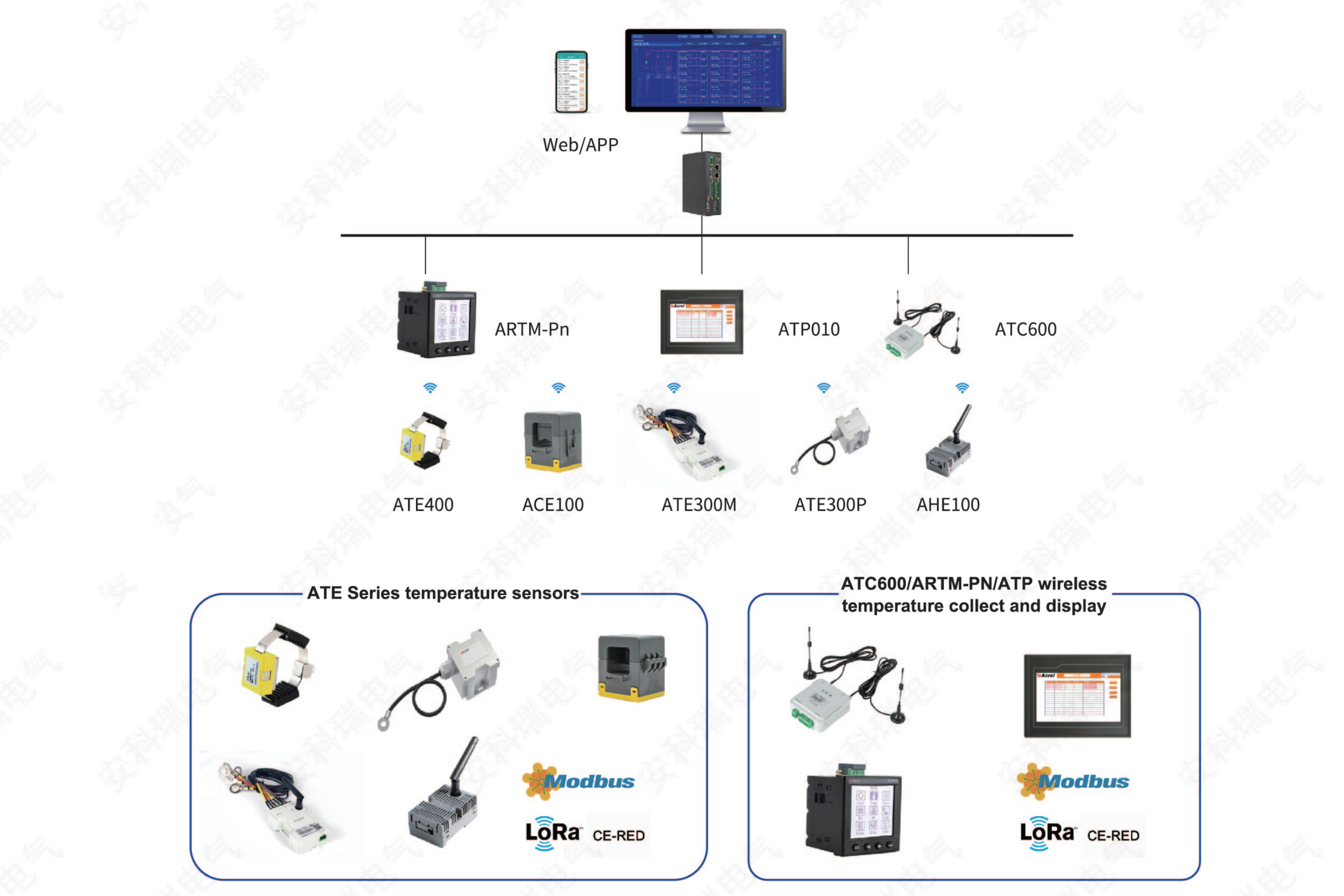

ATC600-C accipimus 240 ATE400, ACE100
ATC600-Z: Lora Nullam ad ATC600-C transmittuntur, et transmissio spatium 1000 metrorum attingere potest;
ATC600-M recipere potest 240 ATE300M, ATE210
Potestas Supple: AC/DC 85V-264V vel DC 12~48V
+86-18702106858 / +86-21-69156352

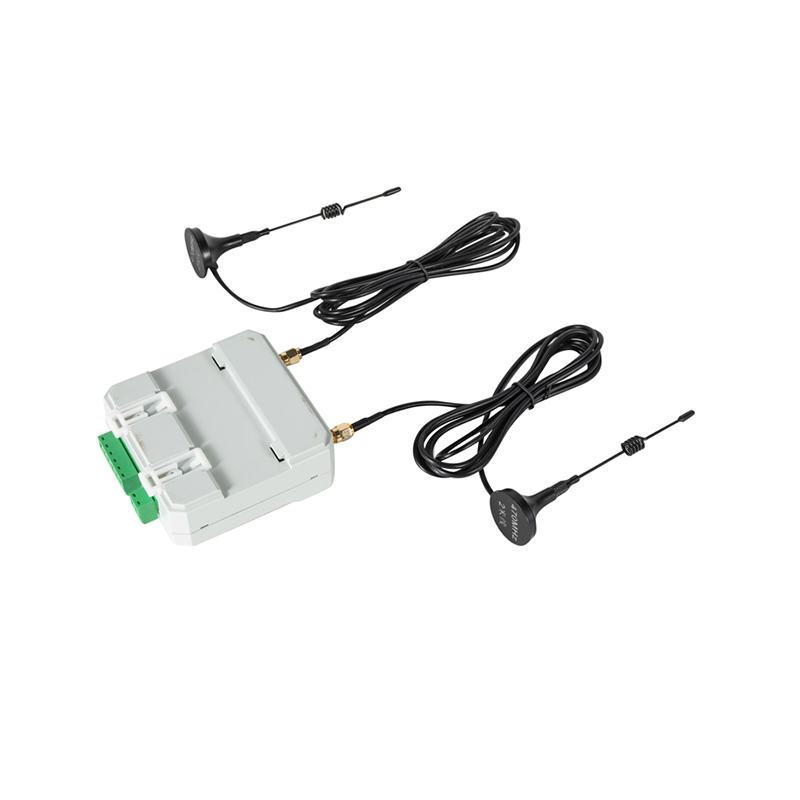

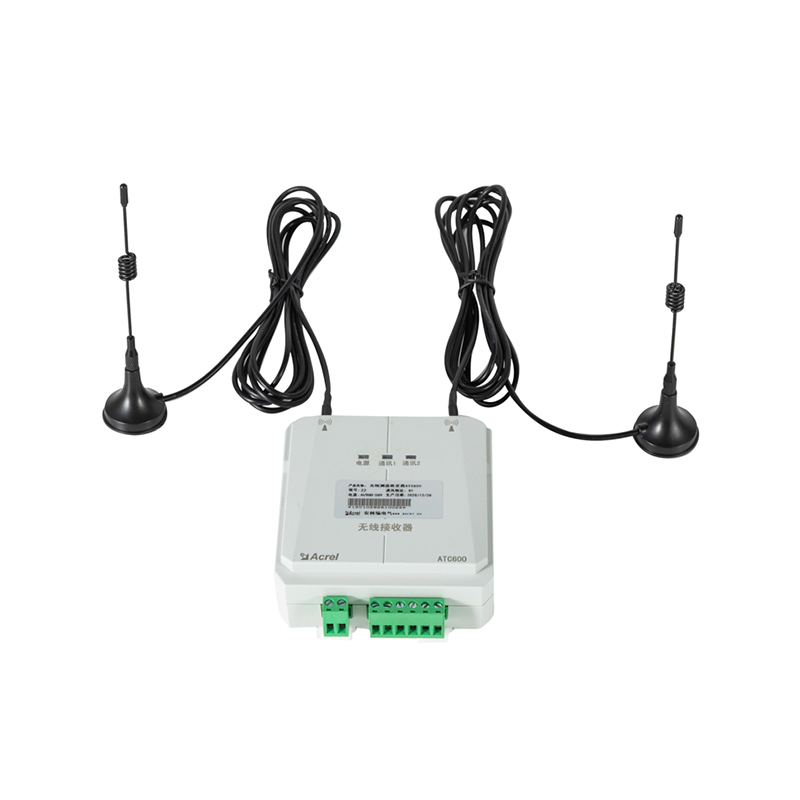

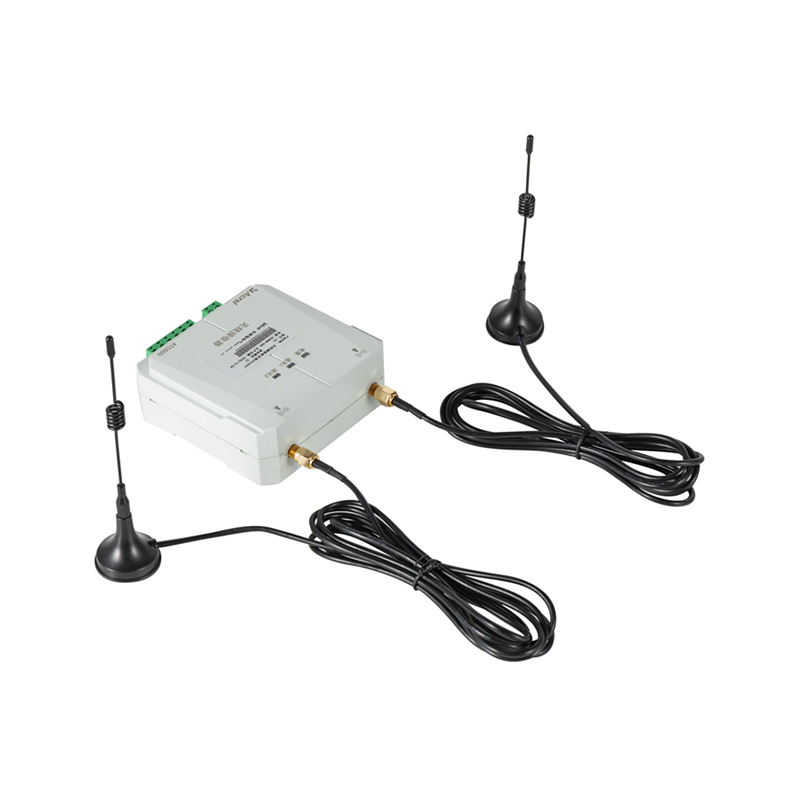

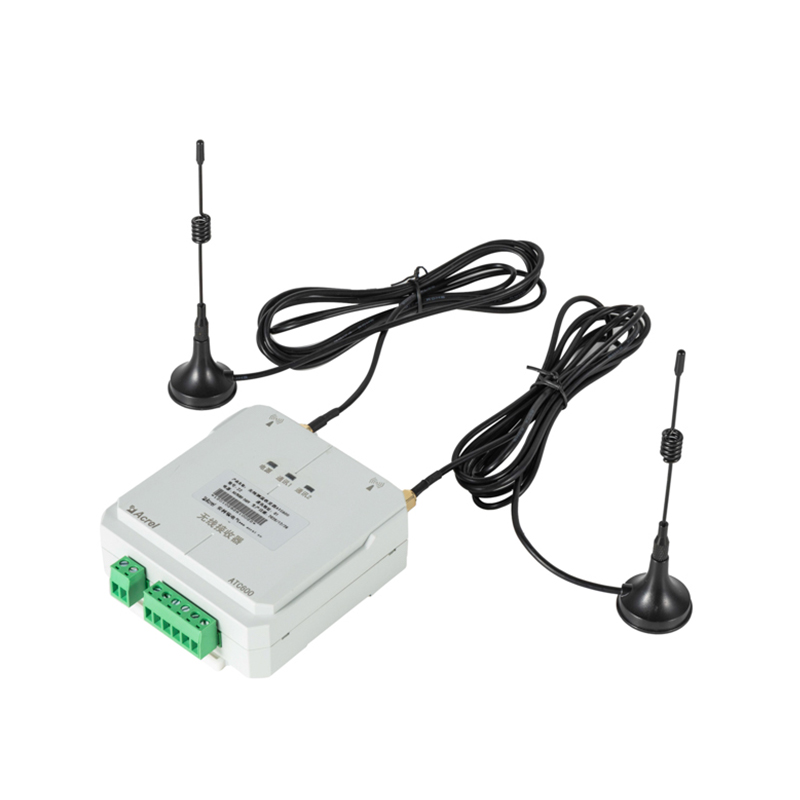

ATC600 temperatura wireless magna est receptaculum in electrica systemate usui destinatum. Ad 470MHz operatur et communicationem cum sensoriis per intervalla usque ad 150metris adiuvat, et inter receptores usque ad 1kilometrum in locis apertis. Cogitatus usque ad 240 puncta sensoriis administrare potest et ab AC/DC 85-264V potens est. Duos cursores passivorum curriculorum notat (5A ad AC250V/DC30V) et communicationem RS485 cum MODBUS-RTU protocollo sustinet, ut facile in SCADA vel remota systemata vigilantia integrare possit..
| exempla Parametric | ATC600-C | ATC 600-Z | ATC600-M |
| Munus | receptor | Repeater (Signum Booster) | receptor |
| Matching Sensoriis | ATE400;AHE100; ACE100; ATE300P | ATE400 | ATE300M |
| Potentia Source | AC/DC100~265V . DC12~48V | ||
| Potestas | ≤2W | ||
| Temperatus Points | 240 puncta | --- | MCDXL puncta |
| Resolution | 0.1℃ | --- | 0.1℃ |
| Range Temperature | -50℃~ 125℃ | --- | -40℃~ 150℃ |
| Precision | ±1℃ | --- | ±1℃ |
| Wireless frequency | 433/470Mhz | 433/470Mhz | 433Mhz~510Mhz |
| Wireless procul | accepto sensorem | accepto sensorem | accepto sensorem 1km |
| 150m/470Mhz,50m/433Mhz | 150m/470Mhz,50m/433Mhz | (Aperto spatio) | |
| (Aperto spatio) . accepto | (Aperto spatio) . Realy | ||
| repeater 1km | procul 1km | ||
| (Aperto spatio) | (Aperto spatio) | ||

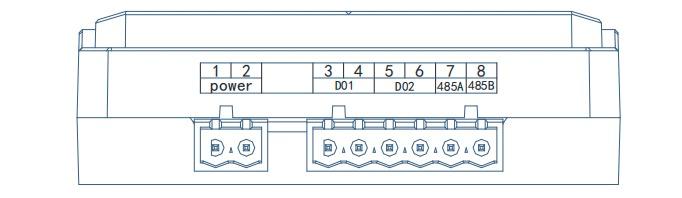

| Communicationis | RS485 | ||
| Baud rate (bps) | 2400 . 4800 . 9600 . 19200 | ||
| Protocol | MODBUS-RTU | --- | MODBUS-RTU |
| Nullam output | II passivum output . capacitas 5A/AC250V . 5A/DC30V | ||
| Environment | Temperature:-20 ～ 55 . Umor: ≤95% | ||
