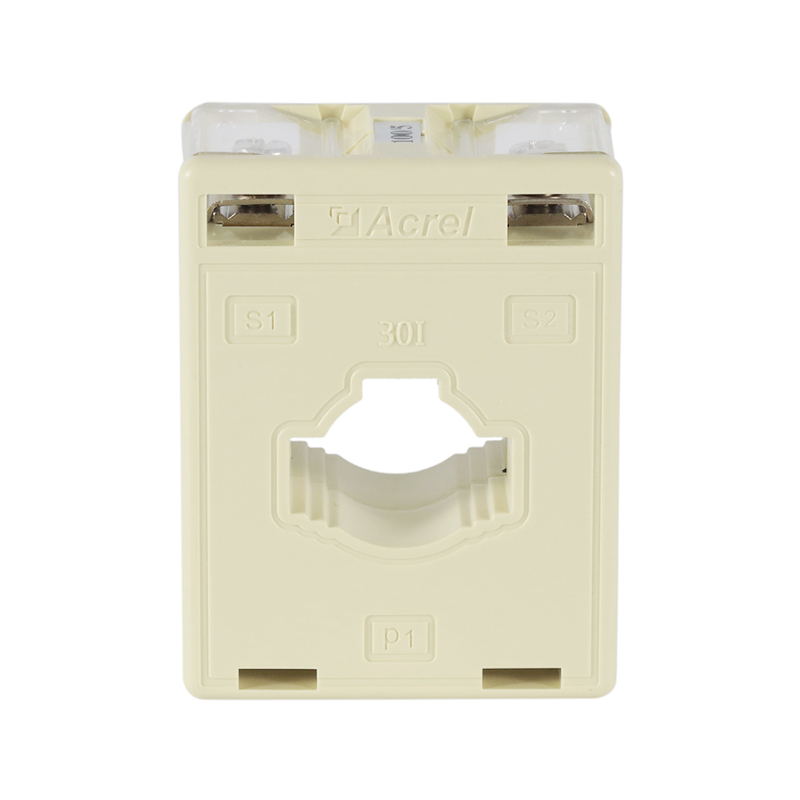

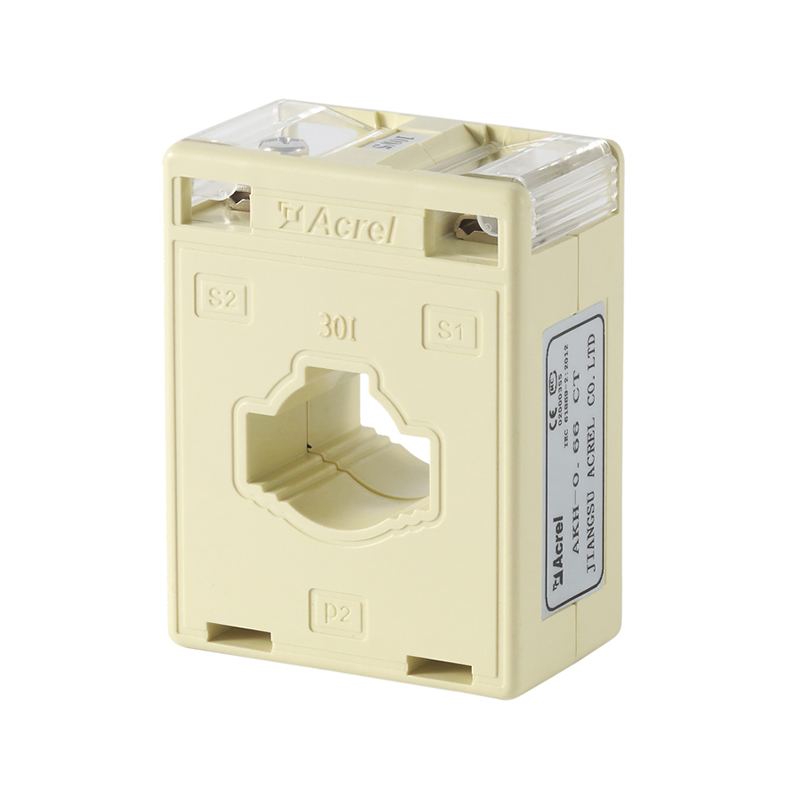

solidus Core
Princeps Accuracy Class 0.5
5A output
Mensurae currentis (I)
Application: Busbar, cables. Nova molimenta incepta
+86-18702106858 / +86-21-69156352
Hic commutator currenti destinatur altas AC venas in minora et tractabilia signa ad vigilantiam et tutelam convertere. Vulgo paribus cum metris panels vel mensas ad accurate mensuras et apparatum muniendas. Lucem facere polycarbonatam flip operculum pro inspectione visualium secundarium wiring facilem, opportunum et usor-amicum consilium praebet. Foramen quadratum rotundum et funes et busbaribus accommodat, ad flexibilem institutionem procurandam. In variis systematibus electricalibus late adhibitis, CT obsequitur cum GB20840.2-2014 (aequivalet IEC 61869-2:2012) et CE certificatum est.

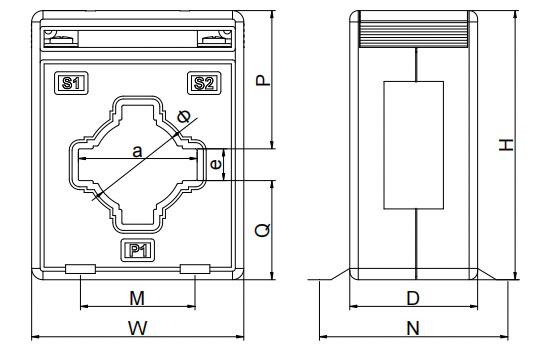

| Specification | Rated Current Ratio | Subtilitas gradus et correspondentes onus rated (VA/Ω) | Recta per tums | Bus spec(mm)/number | Maximilianus. funem diametri exterioris (mm) | Installation | ||
| A） | 0.2 | 0.5 | 1 | |||||
| 20I | 50/5 (1) | / | / | 1.5 | 2 | / | Ф20 | A |
| 75/5 (1) | / | 2.5 | / | 2 | ||||
| 100/5 (1) | / | / | 1.5 | 1 | ||||
| 150/5 (1) | / | 2.5 | / | 1 | ||||
| 200/5 (1) | / | 2.5 | / | 1 | ||||
| 30I | 15/5 (1) | / | / | 1.5 | 5 | / | 22 | A |
| 20/5 (1) | / | / | 1.5 | 4 | ||||
| 25-30/5 (1) | / | / | 1.5 | 3 | ||||
| 40-60/5 (1) | / | / | 1.5 | 2 | ||||
| 75-100/5 (1) | / | / | 1.5 | 1 | 30×10/1 | A、B | ||
| 150-200/5 (1) | / | 2.5 | / | 1 | ||||
| 250/5 (1) | / | 3.75 | / | 1 | ||||
| 300-450/5 (1) | / | 5 | / | 1 | ||||
| 500/5 (1) | / | 10 | / | 1 | ||||
| 600/5 | / | 10 | / | 1 | ||||
| 40I | 10/5 (1) | / | / | 1.5 | 10 | / | 30 | A |
| 15/5 (1) | / | / | 1.5 | 8 | ||||
| 20/5 (1) | / | / | 1.5 | 5 | ||||
| 25-30/5 (1) | / | / | 1.5 | 4 | ||||
| 40/5 (1) | / | / | 1.5 | 3 | ||||
| 50-75/5 (1) | / | / | 1.5 | 2 | ||||
| 100/5 (1) | / | / | 1.5 | 1 | 40×10/1 | A、C | ||
| 150/5 (1) | / | / | 2.5 | 1 | ||||
| 200/5 (1) | / | 2.5 | / | 1 | ||||
| 250/5 (1) | / | 3.75 | / | 1 | ||||
| 300-450/5 (1) | / | 5 | / | 1 | ||||
| 500-800/5 (1) | / | 10 | / | 1 | ||||
| 60I | 150/5 (1) | / | / | 2.5 | 1 | 60×10/1 | 44 | A、C |
| 200-250/5 (1) | / | 2.5 | / | 1 | 60×6/ | |||
| 300-450/5 (1) | / | 5 | / | 1 | 1月2日 | |||
| 500-800/5 (1) | / | 10 | / | 1 | ||||
| 1000-1250/5 (1) | 10 | / | / | 1 | ||||
| 1500-2000/5 (1) | 20 | / | / | 1 | ||||
| 80I | 150/5 (1) | / | / | 2.5 | 1 | 80×10/1 | 50 | A、C |
| 200-250/5 (1) | / | 2.5 | / | 1 | ||||
| 300-450/5 (1) | / | 5 | / | 1 | ||||
| 500-800/5 (1) | / | 10 | / | 1 | ||||
| 1000-1250/5 (1) | 10 | / | / | 1 | ||||
| 1500-2000/5 (1) | 20 | / | / | 1 | ||||
| 2500/5(1) | 30 | / | / | 1 | ||||

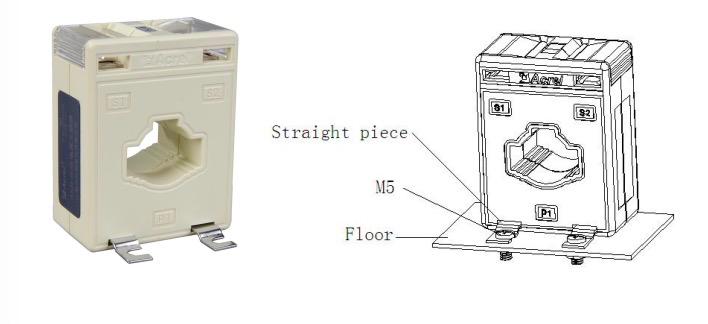

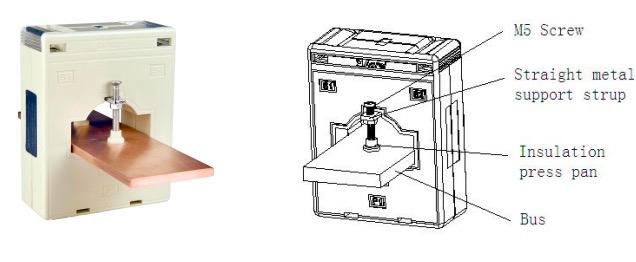

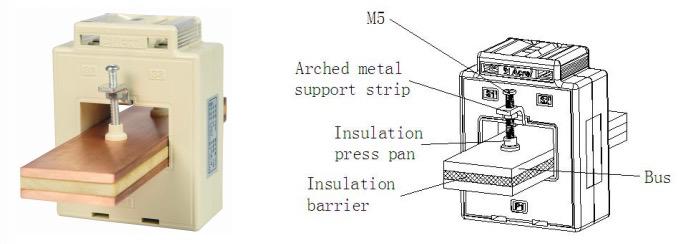

A.Fixed pars recta per
B ad.
C.

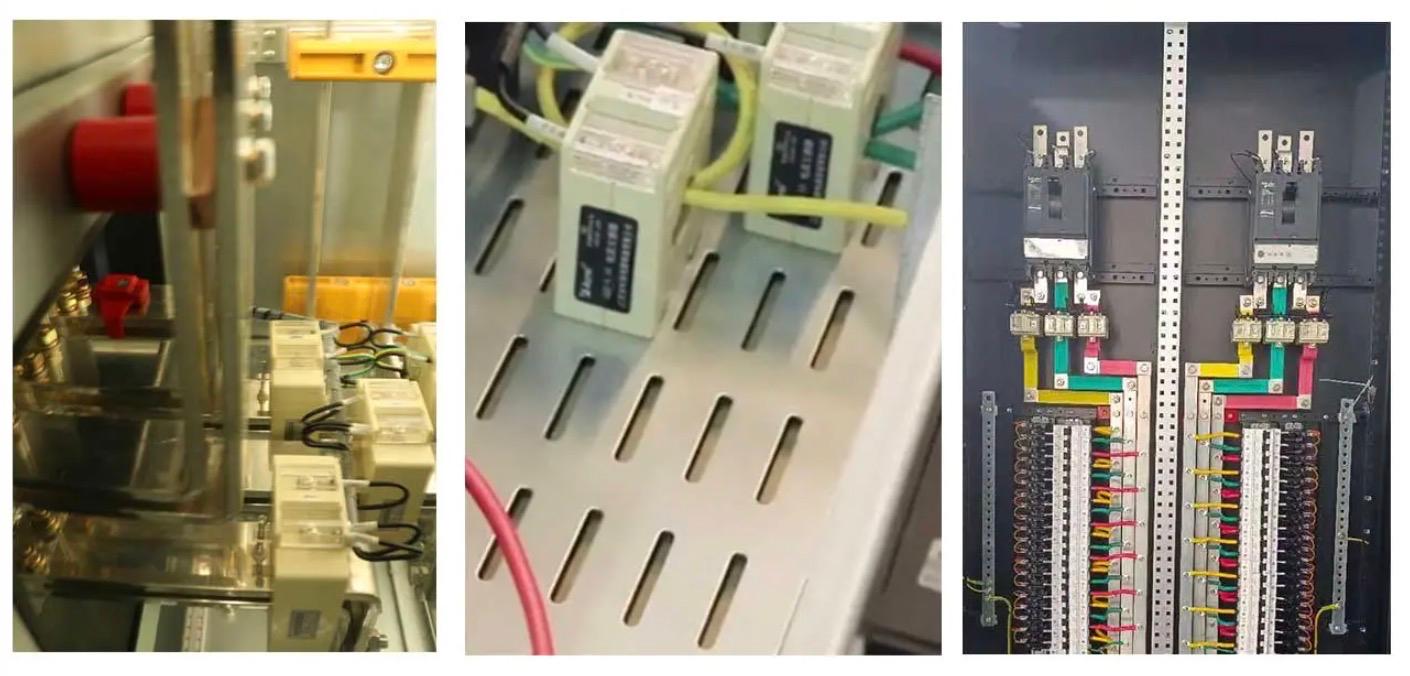

Application varius
Rated Current 80A Directe
MID Certificatus
Princeps Accuracy Class C
35mm DIN Rail Mounted
Pulsus output
