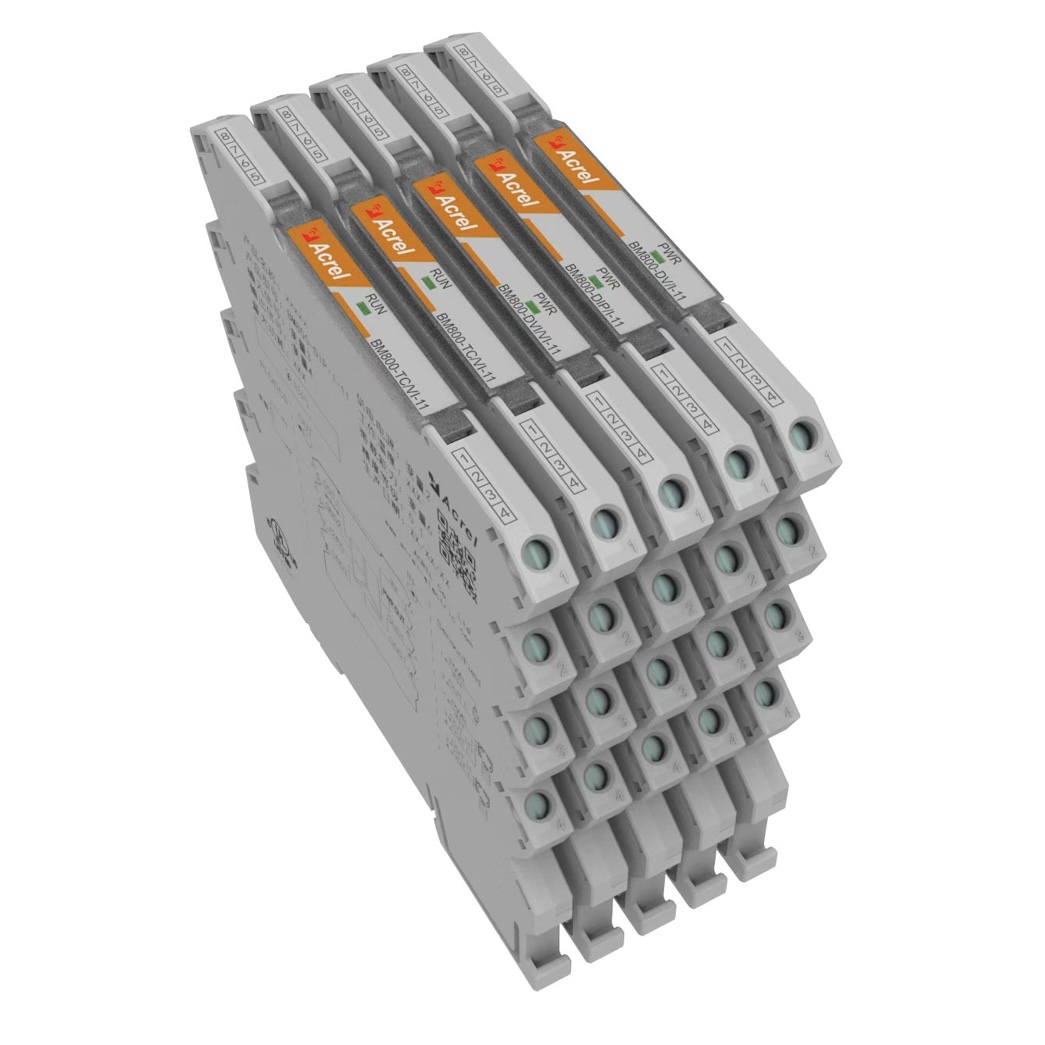

BM800 6.2mm Ultra Thin DIP Switch signum Conditioner for PLC

M odel

BM800-DIP/I-11

BM800-DV/I-11

BM800-DVI/VI-11

C hannel T ype

1 Input 1 O**utput

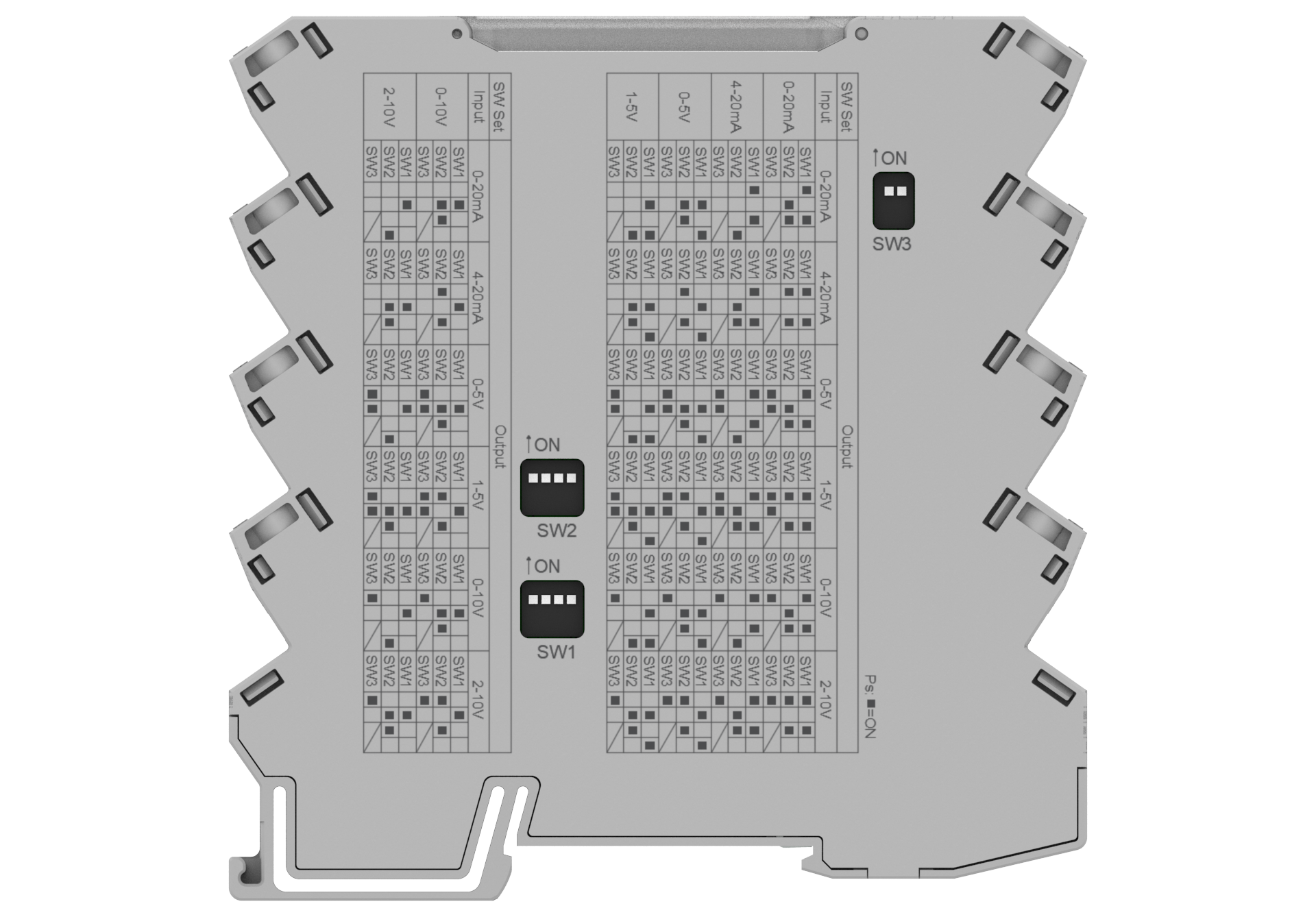

SUMMERGO switch

certum

DIP

Input S ignal

0/4~20mA . Duo-filum et tres-filum transmittentes, fons  vena .

0/1~5V,0/2~10V

0~20mA,4~20mA,

0~5V,1~5V,0~10V,2~10V (Switchable)

I nput I mpedence

Vena input: 100Ω; Voltatio input: 50K (0-5V), 100K (0-10V).

A ccurcy

0.1%

O utput S ignal

DC 0/4~20mA

DC 0/4~20mA,DC 0/1 ～ 5V,

DC 0/2 ～ 10V (Switchable)

P ower D issipation

≤2W

D istributing

Distributio intentionem in 20 mA: 20V

/

Facultas

DC 0 / 4 ~ 20 mA; onus resistentiam 550 Ω

DC 0-5 V / 1~5V; onus resistentiam: 330K Ω

DC 0~10V / 2~10V; onere resistentiam: 500K Ω

O utput R ipple

≤100mVpp ( Onus Resistentia 100Ω)

Temperatura Drift

50ppm/℃

R respondeo T ime

Attingit 90% ex trahere valorem  finalis in 5ms

Potestatem copia Voltage

24V DC

T temperatus

---20℃ ~  60℃  (     temperatura  repono:  -40℃ ~    80℃)

I nsulation S trength

Inscriptio  inter  quamlibet  coetus  duo  Circulorum  initus,  potestas copia, et constitutum terminationum est ≥1500 AC;

(Insulation resistendi ≥100MΩ)

L evels of P rotection

IP20

W octingenti

60g

EMC

IEC61000-6-2 . IEC61000-6-4

D imension

6.2mm *97mm*100mm
