Current Rated: Sursum ad 10000A
Princeps Accuracy Class 0.5
Optimum Linearity

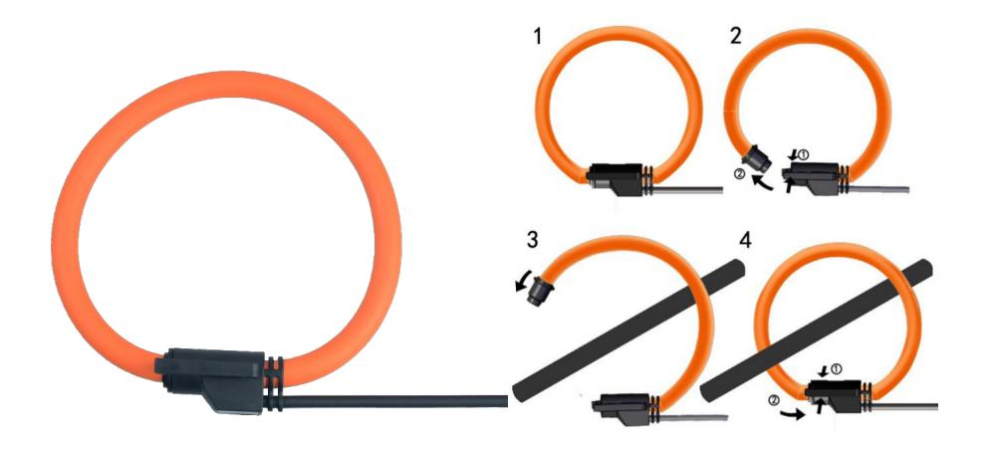

Discidium Caput Open Type
Nulla Power Consummatio
Non Open-circuitu Summus intentione DISCRIMEN
+86-18702106858 / +86-21-69156352
Acrel BR-Series Flexibile Rogowski Coils liberam tutam, late patentem AC sentientem ab 0.1 A usque ad 500 KA. Leve pondus, ansa IP65-aestimata solum circa busbarum vel funes frangit sine disiunctione, CT satietatem et discrimina aperta spatia tollens. Linealitatis eximiae, altae sedis et minimae positionis error spondet accurate potentiam-qualitatem, harmonicam, laniatum vel caducum, cum paribus cum potentia analysers, caesuri vel metris portatilis. Consuetudo longitudinum et diametrorum apta tabulis strictis, fornacibus magnis, welders vel retrofitis. Nulla potestas ducatur, DC 4-20 mA / 200 mV outputs et immunitas ad agros vagandos faciunt BR gyros ad electionem energiae auditorum, arc-vitiae studiorum ac frequentia magna vigilantia invertunt.
| Exemplar | BR-90 | BR-150 | BR-200 | BR-300 |
| Perimeter | 300mm | 500mm | 650mm | 1000mm |
| Diameter interior | 90mm | 150mm | 200mm | 300mm |
| Ratum Current | 1000A | 2000-5000A | 4000-8000A | 5000-1000A |
| Pondus | 100-500g | |||
| Coil Resistentia | 50-500Ω | |||
| Maximilianus. Current | 500kA | |||
| Area crucis-sectional | 12mm | |||
| Longitudo signum filum | 2m, Mos | |||
| Ratio | 200±0.5%mV/kA@50Hz, Mos | |||
| Sagaciter | ±1% | |||
| OA output (Zero Drift) | ≤1mV | |||
| Differentia Phase Angulus | ≤0.5° | |||
| Linearity | ±0.2% | |||
| Bandwidth | 1Hz-10kHz | |||
| Laborans Nativ. | -40℃-80℃ | |||
| Repono Nativ. | -50℃-90℃ | |||
| Flamma Retardant | Thermoplastic Flexilis pro filis et cables IEC-60332-1-2 Flamma Retardant Classis | |||
| protegens | Coil: C%, signum cable: C% | |||
| Insulatio Voltage | Coil: 3000V; Signum Wire: 300V | |||

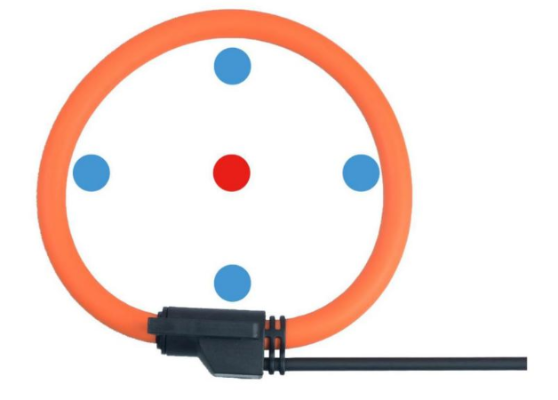

Blue: Classis 1
Red: Classis 0.5S
Rated Current 80A Directe
MID Certificatus
Princeps Accuracy Class C
35mm DIN Rail Mounted
Pulsus output
4 Moduli 72mm Width
Pro IoT Energy Management, Factory, School
Scinditur Core
Fibulae in installation
Princeps Accuracy Class 0.5
150-1000A Input Current
5A/1A Secundaria Output
Applicationem: Renovationis Projects
Res memoria
Satus imperium munus
programmable DI et DO
Profibus-DP communicationis
Anti- quassans munus
Analog output
Res memoria
lacus praesidium
AC380V/690V
programmable DI et DO
Analog output
Anti- quassans munus
Scinditur Core
Princeps Accuracy Class 0.5
Current Input 20-6000A
Current output 5(1)A
Rectangulum foramen Design
Mensurae currentis (I)
Applicationem: Renovationis Projects
