Home / Products / Power Quality Analyzer / APView400 Class A Certificata Power Quality Analyzer

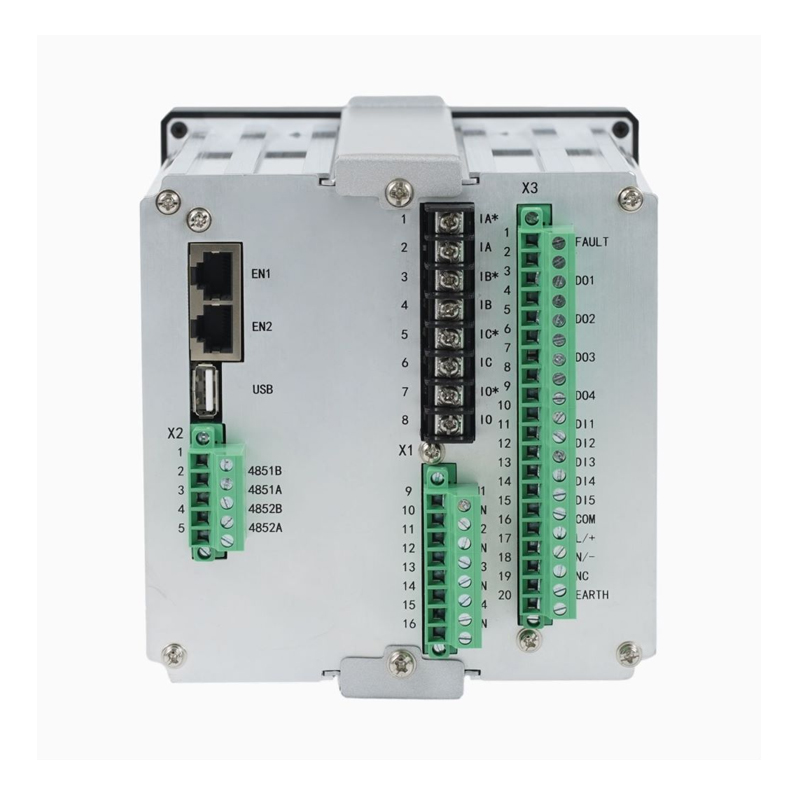

APView400 Class A Certificata Power Quality Analyzer

IEC61000-4-30 Ed3 Class A certificatorium

IEC60253-22 Classis 0.2S

Commotio Waveform Book

Commotio Directio Deprehensio

2000 Waveform Recording

5000 SOE Recording

Contact Us
PREV: Nulla prior productum
DEINDE: Proximum productum non

+86-18702106858 / +86-21-69156352

[email protected]

  • Describe

  • Acrel APView400 Potestas Qualitas Analyser potentia professionalis - qualitas vigilantia fabrica pro PQM System. Prosequitur IEC61000 - 4 - 30 Ed3 Classis A et IEC60253 - 22 Classis 0.2S signis. Cum provectis functionibus sicut Disturbance Waveform Recordatio et Disturbance Directio Detection, commemorare potest super 2000 fluctus formas et 5000 Sequentia Eventorum (SOE). Etiam lineamenta altum - praecisionem mensurae, altae perficiendi multi- core suggestum, et ratio operandi infixa. Cogitatus aptus est ad potentiam - copiam systematum usque ad 35kV et late in industriis uti semiconductores, petrochemicals, chalybe, valetudinaria, centra data et vecturae. Varias etiam protocolla communicationis sustinet ut Modbus - RTU, Modbus - TCP et IEC61850 MMS, solutionem potentiae qualitatis vigilantia comprehendens facit..

  • Specifications
  • Technical Parameter Precium
    Pendo aestimavit AC voltage: AC/DC220V; AC/DC110V or * * DC48V
    AC vena: AC1A,5A;
    ONERO facultatem 1.2In, continua operatio
    XX temporibus ad I secundo
    potentia copia Ratum: AC/DC220; AC/DC110V or * * DC48V
    Licet declinatio: -20% - XX%
    Virtus consummatio: ≤15W
    Virtus Consummatio ≤0.5VA (Unum tempus)
    ira mensuræ 0-1.2In
    Digital output Mechanica ministerium vitae: ≥10000
    Output modus: Passivum contactus
    Facultatem Switching: ≤4000W or * * ≤384VA
    De statu current: ≥16A(AC250V/DC24V) in continuo modo;
    ≥30A brevi terminus (200ms)
    Sagacitas Classis 0.5
    RMS Voltage：±0.1%
    RMS Current：±0.1%
    P,Q,S±0.2%
    Potentia factor：Class 0.5
    Deviationis intentione 0,1%
    Frequentia declinatio：±0.001Hz
    Communicationis RS485, Modbus-RTU protocollum;Ethernet.
    Tres tempus unbalance Voltage unbalance: ± 0.15%
    Current unbalance: ± I%
    Potestas frequentiae sustinere voltage Inter potestatem copiam copiarum terminalium et signum input, output pone terminalum 2kV/1min (RMS)
    Inter testam et omnes terminos terminales (praeterquam statuto terminalium intentionis minoris quam 40V referentis) AC 4kV
    Temperature Operatio: -10℃～ 55℃ Repono: -30℃- 80℃
    Umor ≤95% RH, nulla condensatio, sine gas- mordax
    altitudo ≤ 2500m

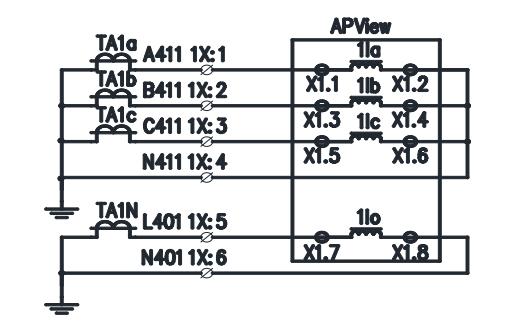

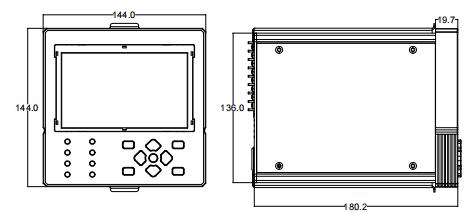

  • Dimensio & Wiring Diagram

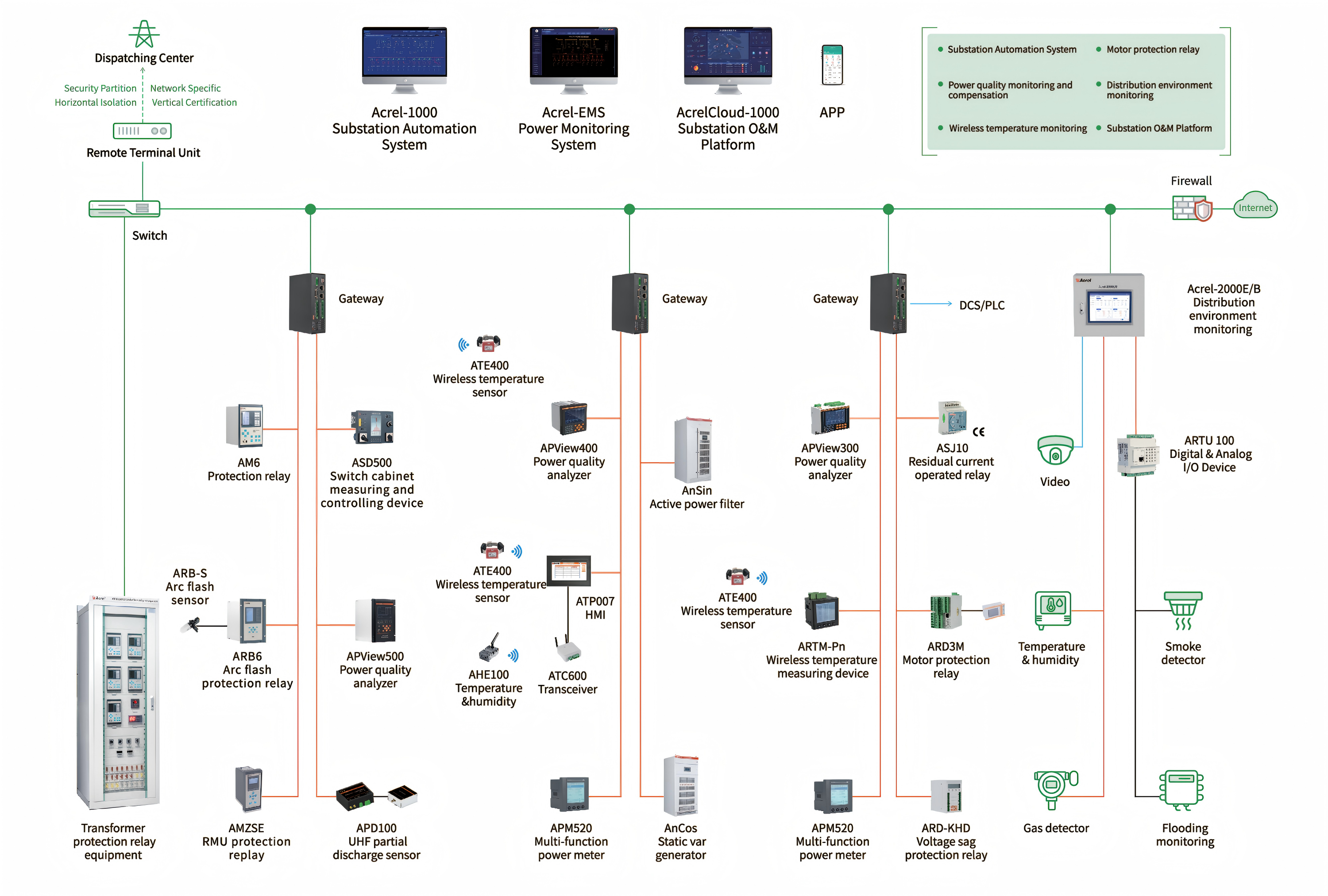

  • Application varius
