Data Centre AC Linea ineuntes
Independentes II canales Tres-phase Inlet
2nd-63rd Harmonic
8DI 4DO 1 Temp. et Umor
Aer Communication (Libitum)
3 Canales RS485 Communication
+86-18702106858 / +86-21-69156352

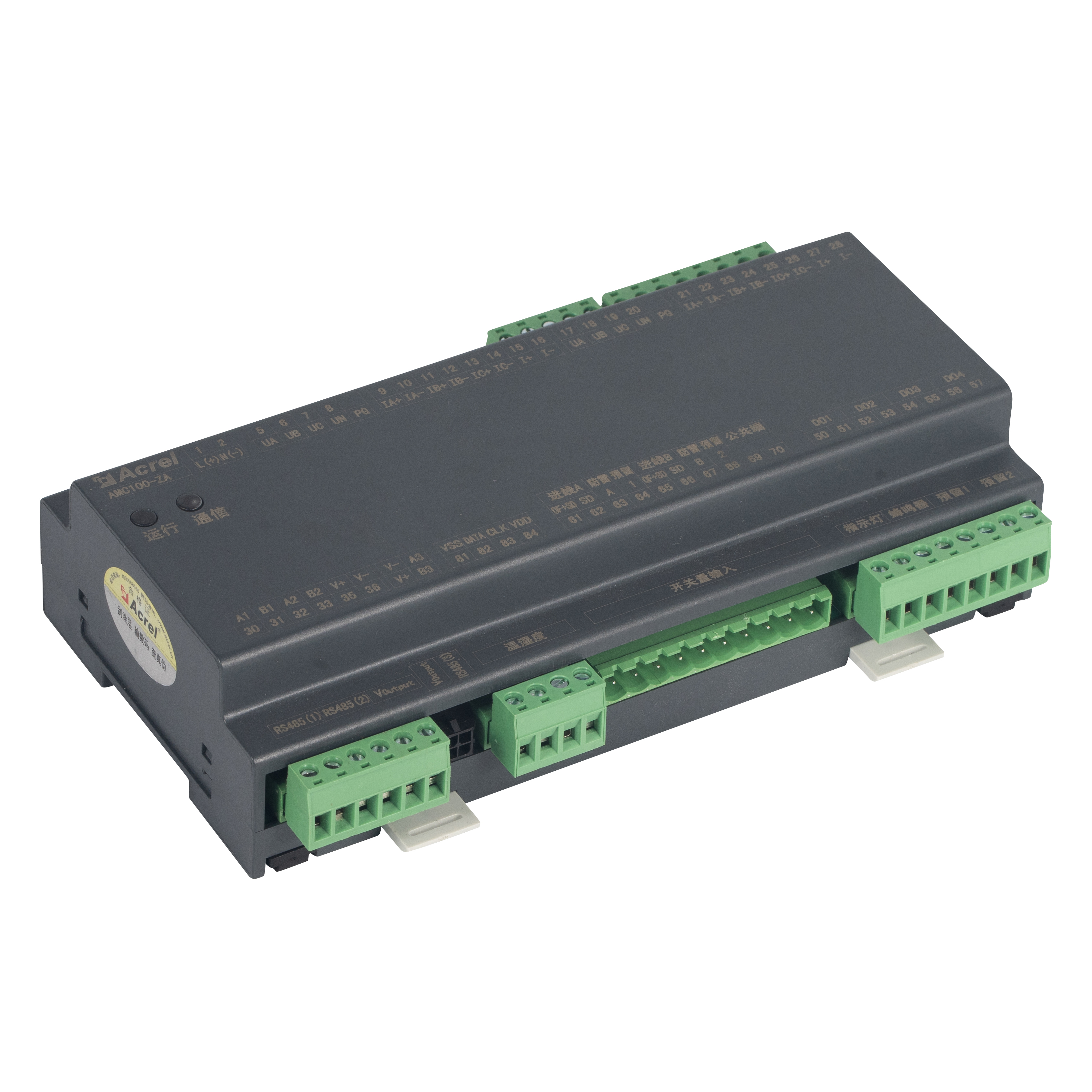

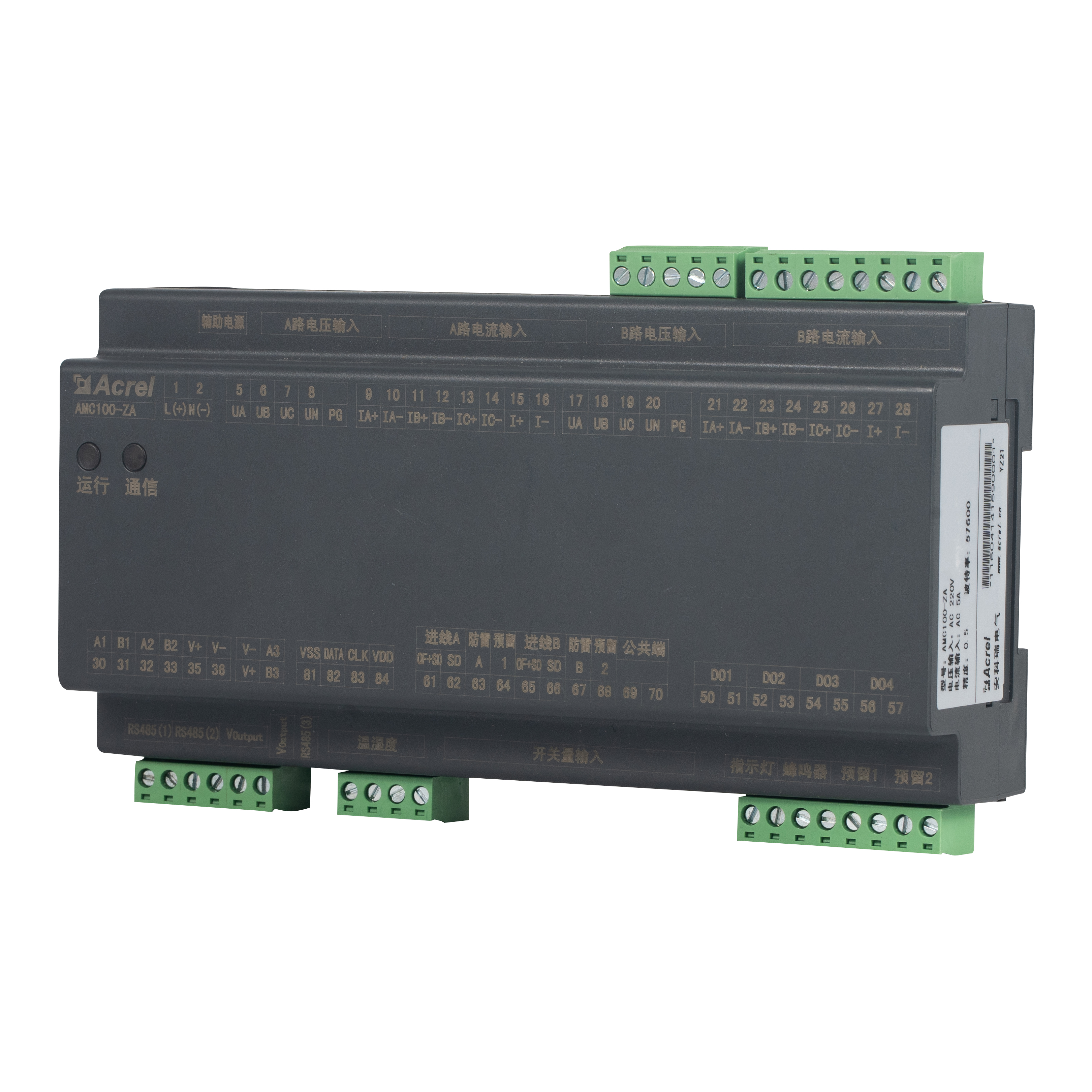

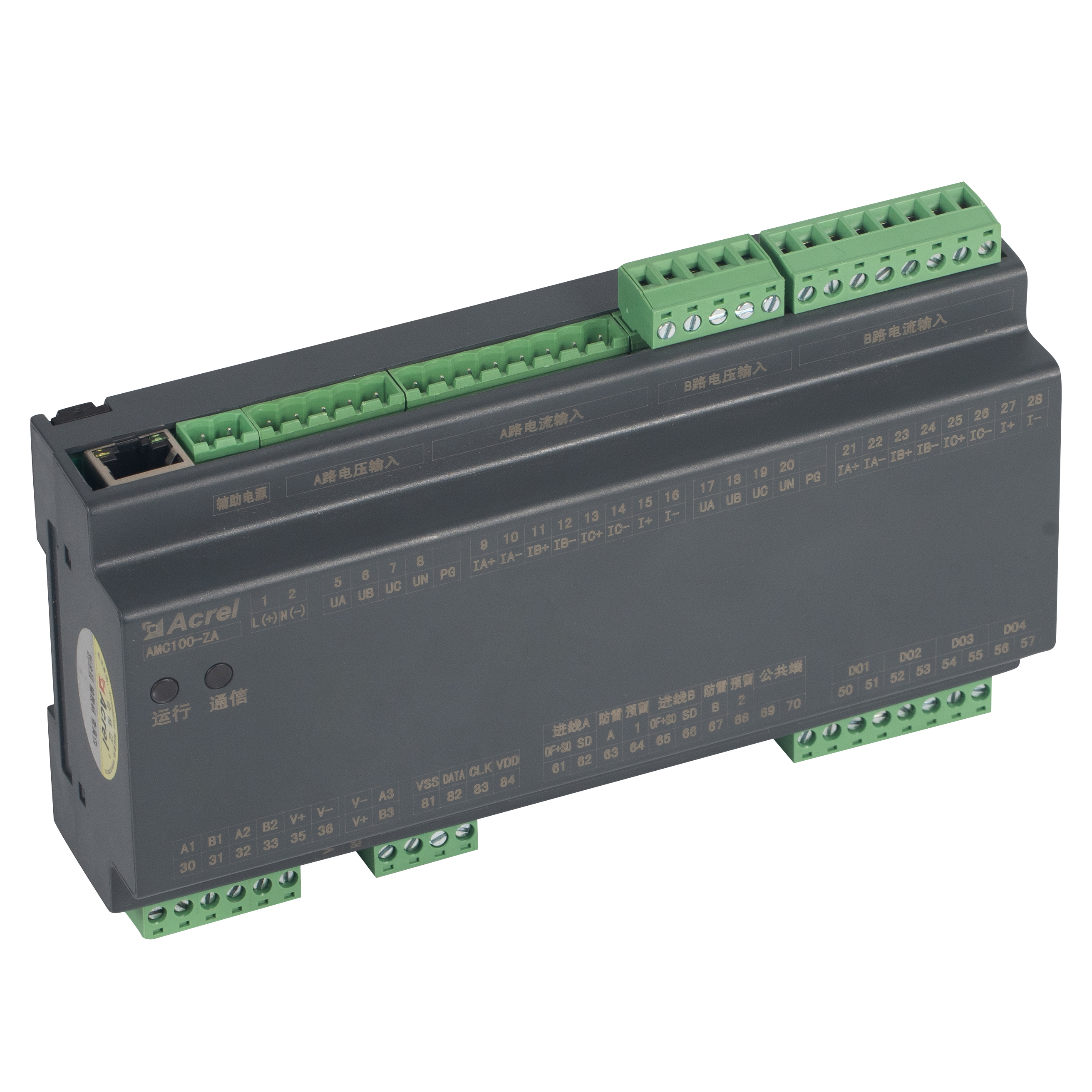

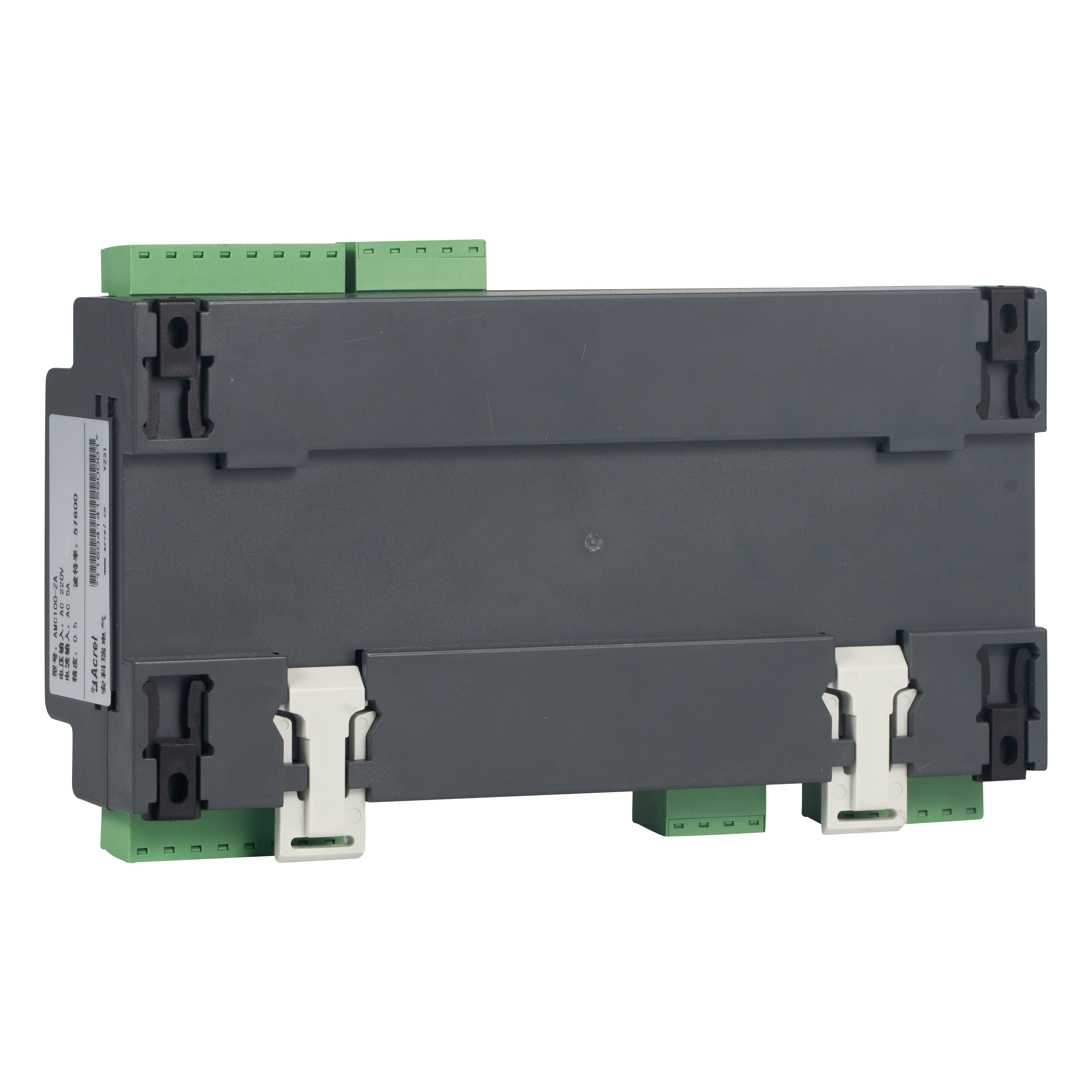

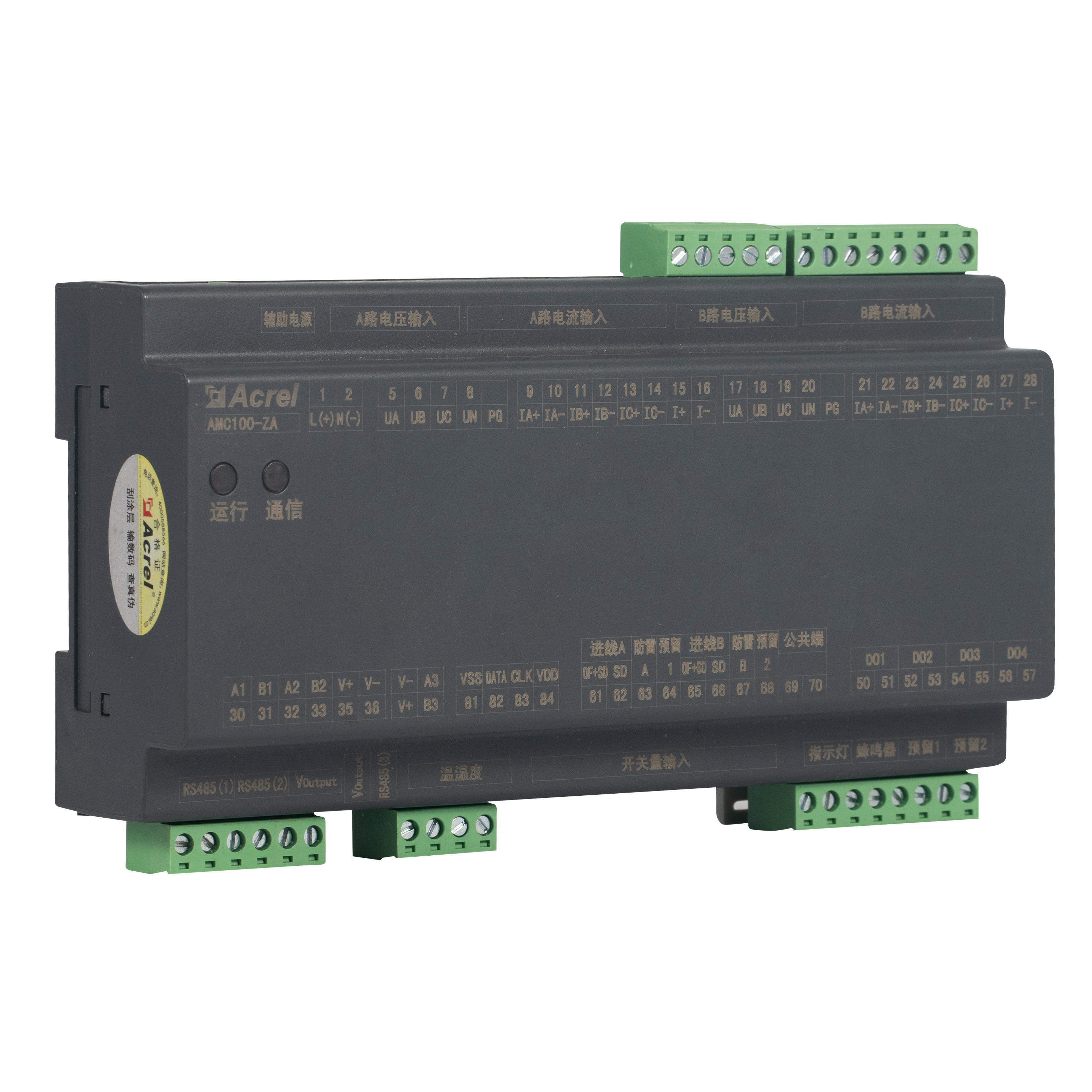

AMC100-ZA est Acrel DIN-rail AC praecisio potentiae-distributionis vigilantia unitas machinalis pro servo centri tormentorum notitia. Simul incedit plenas parametris electricas A B duplices tres phases pascens, circuitus 192 exitus, 8 DI / 4 DO status puncta, 2 canales lacus, 1 temperatura-humiditas sensorem et 63 harmonicas. Tres RS485 Modbus-RTU portus dabunt inconsutilem BMS/DCIM integrationem. Foedus 180 mm habitationum, ±0.5% accuratio, liminum per- ductus terrorem, et soni-levis monitus energiae vastitatis et downtime exacturus, eam faciens scalabilem cor viridis e notitia-medii AC busviali vel PDU solutionis vigilantiae..
| Model | AMC100-ZA | |
| Mensurae parametri | Voltage, current, frequentia, potentia activa, potentia reactiva, potentia factor, vis activa, energia reactiva, nulla-ad-humus voltage, lacus current et nulla series current, summa harmonica (THD), harmonica 2-63, vena et intentione unbalance, temperatus ambiens et humiditas. | |
| Bus voltage | Ratum | 220VAC |
| range mensuræ | ±20% | |
| ONERO | Instantaneus voltage 2 times/sec | |
| Current advenientis circuitu | Ratum | secundarium 5A |
| Range | 0～6A | |
| ONERO | Continua 1.2 tempora, instantaneae 10 times/sec | |
| Temperatus et humiditas | Temperatus dolor | -40℃～ 99℃ |
| Umor dolor | 20% ～90% | |
| Input frequency | AC45～65Hz | |
|
Mensuratio accurate
| Ineuntes linea | Intentione/gradu currente 0.2, potentia activa/energia gradu 0.5, potentia reactiva/energia gradu 1 |
| Temperature | ±1℃ | |
| Umor | ±5% | |
| Potestas auxiliaris | AMC100-ZA: signum ad potestatem (≤15W) AMC100-ZA-P220:220V independens potestas copia AMC100-ZA-P24: DC 12-24V sui iuris copiam | |
|
Environment
| Temperature | Opus: -20℃～150℃ Repono: -25℃～70℃ |
| Umor | Relativum humidity≤93% | |
| elevatio | ≤250m | |
| Switch output | 4 canales 3A 250VAC/3A 30VDC | |
| Initus switch | VIII lymphaticorum | |
| Communicationis | 1 separatim RS485/Modbus-RTU ad systema background 1 RS485/Modbus-RTU tangere tentorium 1 RS485/Modbus-RTU nexum amni moduli Ad libitum 1-alveum Aer communicationis munus | |
| Ratio institutionem | DIN35mm plenas vel imo laminam institutionem | |
| Praesidium campester | IP20 | |
| Pollutio gradu | 2 | |
|
Securitas
| Insulation | Nulla resistentia inter omnes terminos terminales et partes conductivas testae non minus quam 100MΩ |
| sustinere voltage | A intentione et signo currenti //B intentione et signo currenti // switch output// desolatus communicatio port// inter alios portus occurrentium AC2kV 1min, transibit initus et alii portus occurrere debent AC0.5kV 1min, lacus current Si minus quam 2mA, nullum naufragii vel flashover phaenomenon. | |
|
Electromagnetica convenientiae
| Anti-static impedimento | Level 4 |
| Anti-electrica ieiunium transiens erupit | Level III | |
| Anti- aestus impedimento | Level 4 | |
| Resistentia ad campum electromagneticum radiorum frequency radiophonicum | Level III | |
SOLUTIO Data Centre EMS
Rated Current 80A Directe
MID Certificatus
Princeps Accuracy Class C
35mm DIN Rail Mounted
Pulsus output
4 Moduli 72mm Width
Pro IoT Energy Management, Factory, School
Scinditur Core
Fibulae in installation
Princeps Accuracy Class 0.5
150-1000A Input Current
5A/1A Secundaria Output
Applicationem: Renovationis Projects
Res memoria
Satus imperium munus
programmable DI et DO
Profibus-DP communicationis
Anti- quassans munus
Analog output
Res memoria
lacus praesidium
AC380V/690V
programmable DI et DO
Analog output
Anti- quassans munus
Scinditur Core
Princeps Accuracy Class 0.5
Current Input 20-6000A
Current output 5(1)A
Rectangulum foramen Design
Mensurae currentis (I)
Applicationem: Renovationis Projects
